Summary of Contents for Pottinger EUROCAT 275 H-ED

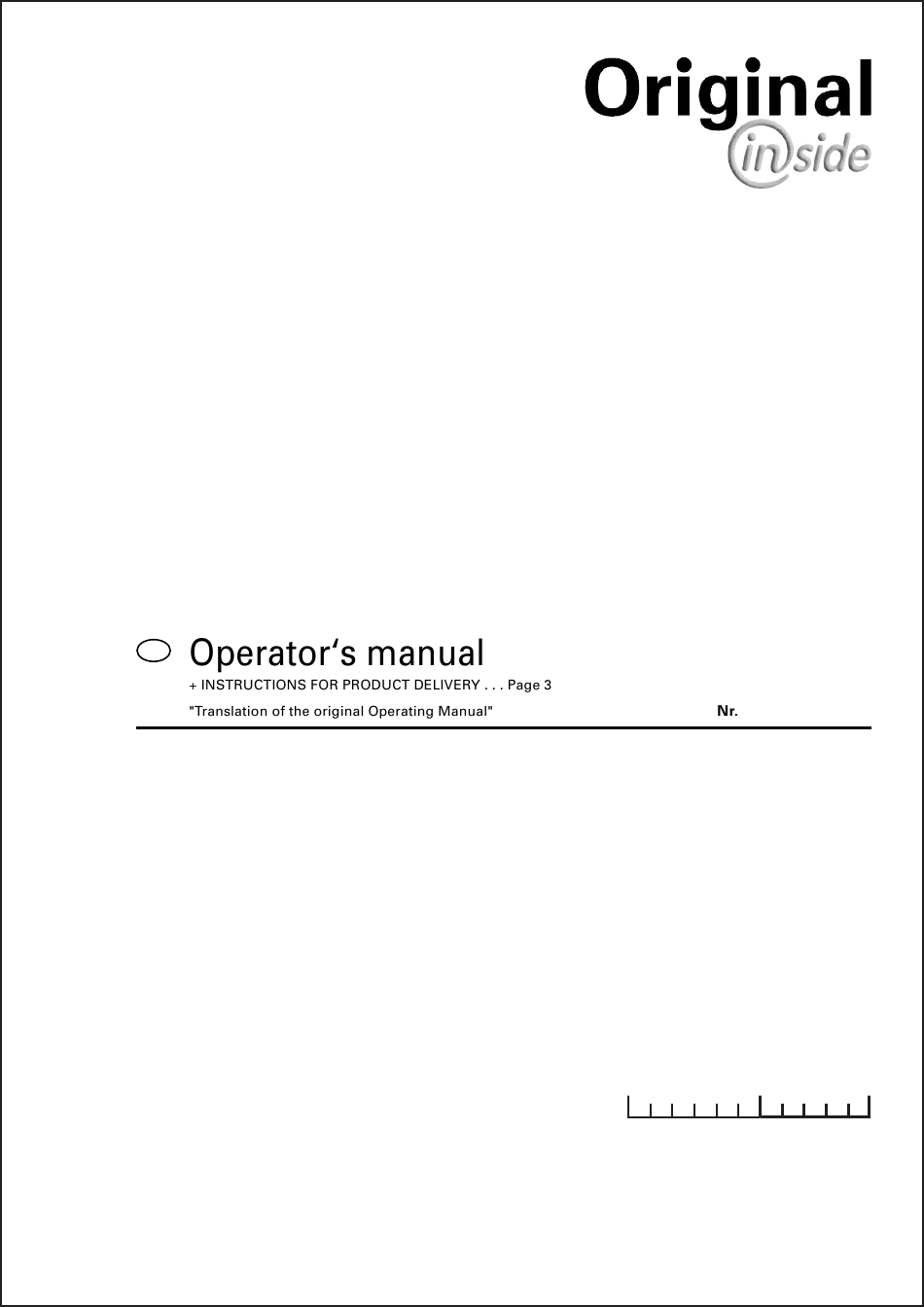

- Page 1 99 348.GB.80J.0 EUROCAT 275 H-ED (Type PTM 348 : + . . 01001) EUROCAT 315 H (Type PTM 349 : + . . 01001) • Drum mower Ihre / Your / Votre • Masch.Nr. • Fgst.Ident.Nr.
- Page 2 Dear Farmer You have just made an excellent choice. Naturally we are very happy and wish to congratulate you for having chosen Pöttinger. As your agricultural partner, we offer you quality and efficiency combined with reliable servicing. In order to assess the spare-parts demand for our agricultural machines and to take these demands into consideration when developing new machines, we would ask you to provide us with some details.
- Page 3 INSTRUCTIONS FOR Dokument PRODUCT DELIVERY PÖTTINGER Landtechnik GmbH Industriegelände 1 A-4710 Grieskirchen Tel. 07248 / 600 -0 Telefax 07248 / 600-2511 According to the product liability please check the above mentioned items. Please check. Machine checked according to delivery note. All attached parts removed. All safety equipment, drive shaft and operating devices at hand.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Observe Safety Hints in the supplement! Table of contents WARNING SIGNS MAINTENANCE CE sign ....................5 Safety point ..................27 Meaning of warning signs ..............5 General maintenance hints .............. 27 Cleaning of machine parts .............. 27 ATTACHING TO TRACTOR Parking in the ope ................ -
Page 5: Warning Signs
WARNING SIGNS CE sign The CE sign, which is affixed by the manufacturer, indicates out ward ly that this machine con forms to the engineering guideline regulations and the other relevant EU guidelines. Recommendations EU Declaration of Conformity (see supplement) for work safety By signing the EU Declaration of Conformity, the ma nu fac tu r er declares that the machine being All points referring... -
Page 6: Attaching To Tractor
ATTACHING TO TRACTOR Attaching implement to tractor Safety hints: see supplement-A1 points 7.), 8a. - 8h.) - Attach mower so that the edge of the tractor-side drum is just outside the right-hand tractor tyre! - See also chapter "Side-located attachment", supplement-D - Adjust lower link bolt (1) on frame accordingly. -
Page 7: Adjusting Lower Links
ATTACHING TO TRACTOR Adjusting lower links • The drive shaft (GW) position should be approximately horizontal when mowing. - Set the tractor's lifting gear accordingly (H1) - Set the tractor hydraulics (ST) using the bit stop. This height allows optimal evenness when working on uneven ground TD 4-00-1 and need not be changed for swinging cutter bar up. -
Page 8: Transport- And Working Position
TRANSPORT- AND WORKING POSITION Conversion from working to transport position Safety Precaution! NOTE: Attention! see supplement- The implement has been so designed that the mower Take care with transport positions 1, 2, 3. A1 points 7.), 8c. unit is positioned as close as possible to the tractor. Before swivelling the cutter bar up, turn - 8h.) This has important advantages for both mowing and... -
Page 9: Transport Position - 1
TRANSPORT- AND WORKING POSITION Transport position - 1 Transport position - 2 Attention! Mower bar only swivelled up at the side. Mower bar swivelled back. Important Cutter bar o the rear and swivelled up until it stops instructions (approx. 20°) in the chapter entitled ”Parking the implement”... -
Page 10: Transport Position - 3
TRANSPORT- AND WORKING POSITION Transport position - 3 Reducing the Total Height Note: Before converting to transport position Cutter bar to the rear and swivelled up (approx. For safety reasons 90°). • The external guard plate (10) can be swivelled in to the mower reduce the total height (- 30 cm) when in the transport disks must be... -
Page 11: Dismount And Parking
DISMOUNT AND PARKING Dismount implement from tractor Attention! • Always Instructions Important! park implement The lever 13b is a safety device. It should not be Keep to the order of operation steadfast changed in its form and functions. 1. Shift servo to floating position so that no residual air •... -
Page 12: Parking The Implement
DISMOUNT AND PARKING Parking the implement Support Stand Beware! The implement can be parked in two positions (R and The support stand can be pinned in 4 positions Before Positions 1, 2, 3: when parking the implement uncoupling Position 4: For transport and operating positions the lower link, Parking the implement on the support stand always secure... -
Page 13: Take Care When Turning On Slopes
WORKING ON SLOPES Take care when turning on slopes! The tractor's travelling characteristics are influenced by the weight (G) of the mower unit. This can lead to dangerous situations, especially on slopes. Danger of tipping occurs - when the mower unit is facing downhill and in a raised position, - when travelling in a left-hand curve with the mower unit raised, - when travelling in a left-hand curve in the transport position (mower unit completely raised). -
Page 14: Starting Work
STARTING WORK Safety hints Adjustment • Adjust tractor hydraulics in a way that the machine can adapt to 1. Check: uneven ground. - Check wear of blade bolt (31). - The drive shaft (GW) position should be approximately horizontal when mowing. Replace blade holder when bolt diameter is less - Frame horizontal. -
Page 15: Operation
STARTING WORK Operation Cutting height adjustment Safety points 1. Adjust cutting height by turning upper link spindle - Turn engine off when (inclination of the cutting discs max. 5°). adjustment, service and repair work is to be done. - Do not work under the Cutting height adjustment machine without safe support. - Page 16 STARTING WORK 0400-GB Schnitthöhe_344 - 16 -...
-
Page 17: Conditioner
CONDITIONER Mowing with the conditioner The conditioning effect can be modified: - with lever (13), which adjusts the gap between adjustable plate and rotor. The conditioning effect is most intense with the lever at the bottom of its travel (Pos. 3). However the crop should not be chopped. -
Page 18: Dismounting And Mounting The Conditioner
CONDITIONER Dismounting and mounting the conditioner Reduce spring tension before dismounting the conditioner Pin bolt (18) in the relative position (a, b, c) - see chapter "MAINTENANCE" Otherwise the danger exists that the mounting frame of the cutter bar could swivel up in jerks and jolts when uncoupling the 1. - Page 19 CONDITIONER 5. Release left and right locks Important! • Spring loaded positioning bolt up to 2004 • Screwed in from 2004 model model When mowing Remove screw (S) without Remove linch pin (V1) and release bolts (Spring loaded positioning bolt = optional) conditioner, •...
-
Page 20: Mowing Without Conditioner
CONDITIONER Mowing without Conditioner Take particular notice when the conditioner is detached rom the cutter bar Safety hint A machine with a conditioner (CR) as a complete unit is fitted with proper protection elements. Should the conditioner be detached however, the mowing unit no longer has complete protection covering. - Page 21 AUFBEREITER (CONDITIONER) 1 2 3 4 5 14 15 6 7 8 9 10 11 18 19 23 24 25 25 26 27 28 30 345.31.006.1 0° 0° 45° 45° 90° 90° 135° 135° 180° 180° 225° 225° 270° 270° 315°...
-
Page 22: Set The Positions Of The Guiding Plates
SET THE POSITIONS OF THE GUIDING PLATES Variation NOVACAT 305 extra dry EUROCAT 275 extra dry "Extra dry" system Note The settings listed below are to be understood as basic settings. Because of the various types of crops, an optimum setting of the guiding plates can possibly first be ascertained when the machine is in use. -
Page 23: Dismount Guide Plate
SET THE POSITIONS OF THE GUIDING PLATES Dismount guide plate When spreading it could occur that the left mounted guide plate (LB) reduces the spread width. - Mount guide plate (LB) onto the top side of the conditioner If a greater spread width is required, the guide plate can be removed. -
Page 24: Swathformer
SWATHFORMER Adjustment of both swath makers (8i Leading swath disc Rear swath disc • Distance between mowing plate and swath disc "5-10 mm ". Adjustment "+10 mm". • inclination 5° TD 79-99-17 10 mm TD 25-98-4 5° + 10 mm TD 25-98-3 TD 37-98-02 Adjustment of swath width... -
Page 25: Montage Of The Transport-Rings
SWATHFORMER Montage of the transport-rings. Fitting inner conveying guides Additional transport-rings can be fitted to the inner mowing drums For dense fodder additional conveying guides can be fitted to prevent to prevent clogging when working with dense fodder. clogging Adjustment "8 - 10 cm" Attention! Remove conveying clamp when mowing with the conditioner (CR) -
Page 26: Collision Safety Device
COLLISION SAFETY DEVICE Collision safety device When mowing around trees, fences, boundary stones etc., collisions between the cutter bar and obstacles can occur despite careful and slow driving. Therefore, in order to prevent such damage, collision protection has been planned for the cutting device. Attention! It is not the intention of the collision safety device to prevent damage to the machine when working at full speed. -
Page 27: Maintenance
MAINTENANCE Safety point Parking in the ope Safety points! • Turn engine off when ad ju st ment, service and repair When parking in the open for work is to be done. long periods of time, clean • Turn engine off piston rods and then coat when ad ju st ment, with grease. -
Page 28: Holder For A Quick Change Of Cutter Blades
MAINTENANCE AND SERVICE Holder for a quick change of cutter blades Changing the Cutter Blades Attention! For Your Safety 1. Insert lever (H) horizontally between cutter disc and - Regularly check that cutter blades are tightened firmly! - Cutter blades on a cutter disc should wear out simultaneously (danger of imbalance). -
Page 29: Cutters
MAINTENANCE AND SERVICE Cutters The cutters on a cutting drum should be evenly worn out, (danger of imbalance) otherwise they are to be replaced by new ones. Fahrtrichtung Pay attention to correct assembly! - Cutters with the notation “L” are only to be mounted on the left TD 86/98/08 rotating mowing drum. -
Page 30: Increased Cutting Height With High - Cut Mowing Plates
MAINTENANCE AND SERVICE Increased cutting height with high – cut mowing plates Distance disc (basic equipment) • In the basic equipment of the machine the cutting height can be adjusted by adding distance discs - See chapter « Bringing into operation » High - cut mower disc (optional equipment) By doing so the cutting height is increased by 23 mm. -
Page 31: Check Initial Spring Tension
MAINTENANCE Check initial spring tension. 1. Mount the implement onto the tractor - see chapter “Mounting onto Tractor” 2. Lower cutter bar to the ground - the ground bearing load of the cutter bar outside right should be about 75 kg. Alter spring tension 1. -
Page 32: Tabel
MAINTENANCE - Bj. 2001: At the same time turn the half-bolt 180° and take it out of the bore (17a). Afterwards put in the half-bolt (17) and turn as far as possible so that the pin bolt can be again inserted. + Bj. -
Page 33: Danger Of Accident If Wearing Parts Are Worn
MOUNTING OF MOWING BLADE CHECKING WEAR Attention ! Danger of accident if wearing parts are worn Wearing parts are: - mounting of mowing blades (30) - bolts of mowing blades (31) If such wearing parts are worn out they must not be used any longer , otherwise it can no longer be guaranteed that the pin of the mowing blade is firmly adjusted and accidents may be caused... -
Page 34: Technical Data
TECHNICAL DATA Technical data EUROCAT 275 H / EUROCAT 275 H-ED (Type PTM 348) EUROCAT 315 H (Type PTM 349) Three-point linkage (adjustable) Kat. II Three-point linkage (adjustable) Kat. II Working width 2,70 m Working width 3,05 m No. of mowing drums No. -
Page 35: The Deä Ned Use Of The Mower Unit
TECHNICAL DATA Position of Vehicle Identification Plate The factory number is imprinted on the accompanying Vehicle Identification Plate (as shown) and on the frame. Guarantee issues and further inquiries cannot be processed without the factory number being stated. Please enter the number onto the front page of the operating manual immediately after taking delivery of the vehicle/implement. -
Page 36: Supplement
SUPPLEMENT GB-Anhang Titelblatt _BA-Allgemein... - Page 37 The original cannot be copied ... Things will run better with genuine Pöttinger parts • Quality and precise fitting The decision must be made, ”original” or ”imitation”? The decision is often governed by price and a ”cheap buy” can sometimes be very expensive. - Operating safety.
-
Page 38: Recommendations For Work Safety
Recommendations for work safety SUPPLEMENT - A Recommendations for work safety 6.) Transport of persons prohibited All points refering to safety in this manual are in di ca ted a. The transport of persons on the machine is not permitted. by this sign. -
Page 39: Driveshaft
DRIVESHAFT Supplement - B Matching driveshaft to tractor Rules for working To determine the actual length re qui red, hold the two Never exceed the ma xi mum p. t. o. speed when using halves of the driveshaft side by side. the implement. - Page 40 DRIVESHAFT Supplement - B How a cam type cut out safety clutch works This overload clutch switches the torque transmitted to zero if overloaded. To revert to normal operation, stop the p.t.o. drive briefly. The clutch reengages at a speed below 200 rpm. IMPORTANT! Re-engaging is also possible by decreasing the p.t.o.
-
Page 41: Attachment Variations
SIDE-LOCATED ATTACHMENT Attachment variations Example: Tractor with a width of 195 cm. 195 cm 7 cm 10 cm 15 cm 1. Attachment variation (7 cm) • Install lower link bolts according to sketch - left 10 cm TD 26/96/7 - right 15 cm 100 cm 195 cm 7 cm... -
Page 42: Lubrication Chart
FETT Schmierplan Plan de graissage Lubrication chart alle X Betriebsstunden Toutes les X heures de service after every X hours operation 40 F alle 40 Fuhren 40 F Tous les 40 voyages 40 F all 40 loads 80 F alle 80 Fuhren 80 F Tous les 80 voyages 80 F... - Page 43 FETT (IV) FETT 1 - 1,5 TD 04/00/20 (III) EUROCAT 275 H 11 Liter (III) (III) EUROCAT 315 H 0,7 Liter 13 Liter 0000-SCHMIERPLAN (348) - 43 -...
- Page 46 TAPER BUSHES Taper bushes installation instructions To assemble 1. Clean and degrease the bore and taper surfaces of the bush and the tapered bore of the pulley. 2. Insert the bush in the pulley hub and line up the holes (half thread holes must line up with half straight holes).
-
Page 47: Combination Of Tractor And Mounted Implement
IMPORTANT! ADDITIONAL INFORMATION Combination of tractor and mounted implement The mounting of implements on the front or rear three point linkage shall not result in exceeding the maximum permissible weight, the permissible axle loads and the tyre load carrying capacities ot the tractor. The front axle of the tractor must always to be loaded with at least 20 % of the unladen weight of the tractor. - Page 48 IMPORTANT! ADDITIONAL INFORMATION 3. CALCULATION OF THE REAL FRONT AXLE LOAD T V tat (If with the front mounted implement (G ) the required minimum front ballasting (G ) cannot be reached, the weight of the front mounted V min implement has to be increased to the weight of the minimum ballasting at the front!) Record the calculated real front axle load and the permissible front axle load of the tractor into the table.
- Page 49 (full address of company - where this concerns authorized agents within the Common Market, also state the company name and manufacturer) declare in sole responsibility, that the product Drum mower EUROCAT 275 H Type 348 EUROCAT 275 H-ED Type 348 EUROCAT 315 H Type 349 __________________________________________________________________________ (make, model) to which this certiÀcate applies, conforms to the basic safety and health requirements of...
- Page 50 Im Zuge der technischen Weiterentwicklung La société PÖTTINGER Landtechnik GmbH Following the policy of the PÖTTINGER arbeitet die PÖTTINGER Landtechnik améliore constamment ses produits grâce Landtechnik GmbH to improve their products GmbH ständig an der Verbesserung ihrer au progrès technique. as technical developments continue, Produkte.
- Page 51 PÖTTINGER Landtechnik GmbH A-4710 Grieskirchen Telefon: +43 7248 600-0 Telefax: +43 7248 600-2513 e-Mail: info@poettinger.at Internet: http://www.poettinger.at PÖTTINGER Deutschland GmbH Verkaufs- und Servicecenter Recke Steinbecker Strasse 15 D-49509 Recke Telefon: +49 5453 9114-0 Telefax: +49 5453 9114-14 e-Mail: recke@poettinger.at PÖTTINGER Deutschland GmbH Servicecenter Landsberg Spöttinger-Straße 24 Postfach 1561...
