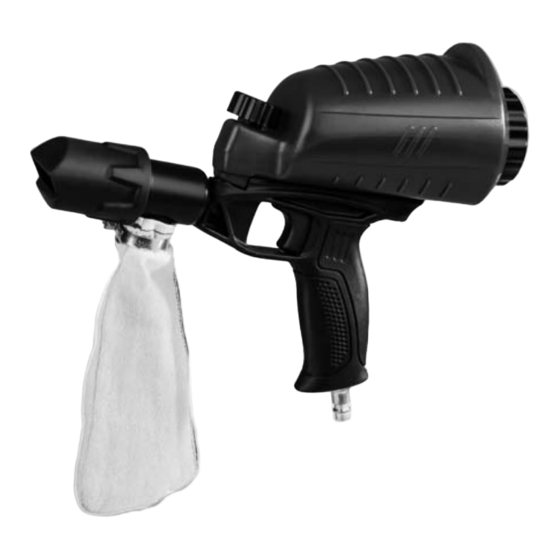

Air sandblaster gun
Table of Contents
  • Español

    • Table of Contents
    • Introducción

      • Uso Previsto
      • Equipamiento
      • Volumen de Suministro
      • Características Técnicas
    • Indicaciones Generales de Seguridad

      • Seguridad en el Lugar de Trabajo
      • Indicaciones de Seguridad Específi Cas para la Pistola de Arenado de Aire Comprimido
    • Manejo

      • Conexión de la Alimentación de Aire Comprimido
      • Llenado del Depósito del Material de Arenado
      • Montaje de la Bolsa Colectora del Material de Arenado
      • Selección y Montaje de Los Accesorios
      • Uso de la Pistola de Arenado de Aire Comprimido
      • Vaciado de la Bolsa Colectora del Material de Arenado
    • Eliminación de Fallos

    • Componentes

    • Mantenimiento y Limpieza

    • Desecho

    • Garantía

    • Asistencia Técnica

    • Importador

    • Traducción de la Declaración de Conformidad Original

  • Italiano

    • Introduzione

      • Uso Conforme
      • Dotazione
      • Volume Della Fornitura
      • Dati Tecnici
    • Indicazioni Generali Relative Alla Sicurezza

      • Sicurezza Sul Posto DI Lavoro
      • Indicazioni Relative Alla Sicurezza Specifi Che Per Pistole Sabbiatrici Ad Aria Compressa
    • Funzionamento

      • Collegamento Alla Fonte DI Alimentazione DI Aria Compressa
      • Riempimento del Contenitore DI Abrasivo
      • Montaggio del Sacchetto DI Raccolta Dell'abrasivo
      • Selezione E Montaggio Dell'accessorio
      • Utilizzo Della Pistola Sabbiatrice Ad Aria Compressa
      • Svuotamento del Sacchetto DI Raccolta Dell'abrasivo
    • Eliminazione Dei Guasti

    • Componenti Singoli

    • Manutenzione E Pulizia

    • Smaltimento

    • Garanzia

    • Assistenza

    • Importatore

    • Traduzione Della Dichiarazione DI Conformità Originale

  • Português

    • Introdução

      • Utilização Correta
      • Equipamento
      • Conteúdo da Embalagem
      • Dados Técnicos
    • Indicações Gerais de Segurança

      • Segurança no Local de Trabalho
      • Indicações de Segurança Específi Cas para Pistolas Pneumáticas de Jato de Areia
    • Operação

      • Ligar a Fonte de Ar Comprimido
      • Encher O Recipiente Do Produto Abrasivo
      • Montar O Saco Coletor de Material de Areamento
      • Selecionar E Montar O Aplicador
      • Utilizar a Pistola Pneumática de Jato de Areia
      • Esvaziar O Saco Coletor de Material de Areamento
    • Eliminação de Erros

    • Peças Individuais

    • Assistência Técnica

    • Garantia

    • Eliminação

    • Manutenção E Limpeza

    • Tradução da Declaração de Conformidade Original

    • Importador

  • Deutsch

    • Einleitung

      • Bestimmungsgemäßer Gebrauch
      • Ausstattung
      • Lieferumfang
      • Technische Daten
    • Allgemeine Sicherheitshinweise

      • Arbeitsplatz-Sicherheit
      • Gerätespezifi Sche Sicherheitshinweise für Druckluft-Sandstrahler
    • Bedienung

      • Druckluftquelle Anschließen
      • Strahlgutbehälter Befüllen
      • Auff Angbeutel für Sandstrahlmaterial Montieren
      • Aufsatz Auswählen und Montieren
      • Druckluft-Sandstrahlpistole Verwenden
      • Auff Angbeutel für Sandstrahlmaterial Entleeren
    • Fehlerbehebung

    • Einzelteile

    • Wartung und Reinigung

    • Entsorgung

    • Garantie

    • Service

    • Importeur

    • Original-Konformitätserklärung
