Item # : DW52ING3DR
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, report damage,
or request parts. www.walkeredison.com
TM
Revised 22/04/2020 (L)
Walker Edison
®
©
Copyright
2020 b
Walker Edison Furniture Co., LLC. All rights reserved.
P.1
y
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison DW52ING3DR
Summary of Contents for Walker Edison DW52ING3DR

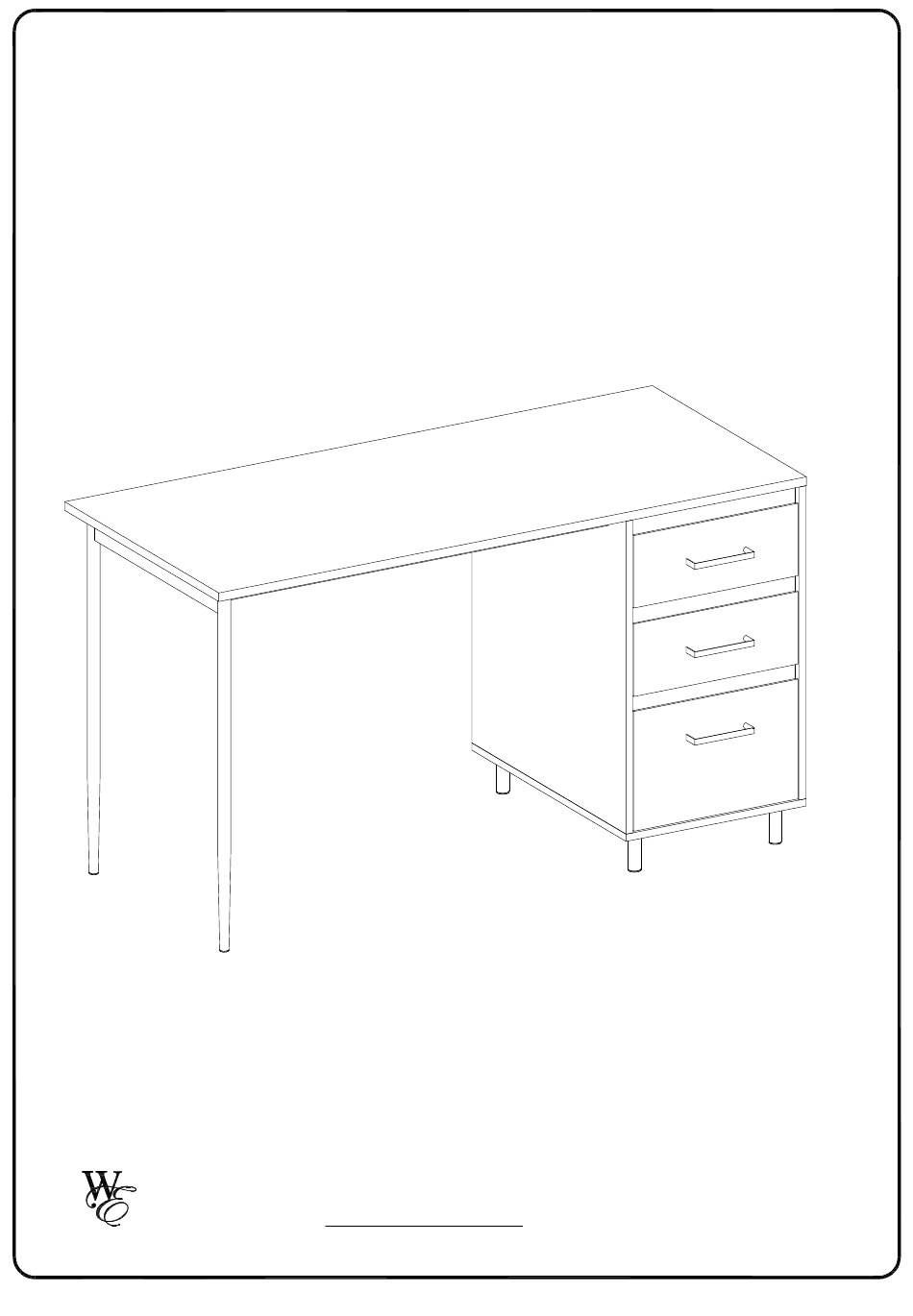

- Page 1 Item # : DW52ING3DR Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 22/04/2020 (L) Walker Edison ® © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
- Page 5 Insert wooden dowel (A) into parts (3,4,7) as per diagram.
- Page 6 Secure cam bolt (B) into parts (1,3,4,) with Philips head screwdriver as per diagram.
- Page 7 Pick up the slider arm (T) and separate the slide Runner for the following Steps. Extend the Slide .Runner all the way forward,press the plastic release lever of the slider arm up and pull the Slide Runner Complete out .
- Page 8 Using screw (M) attach drawer slider (T) to parts (3,4) with Philips head screwdriver as per diagram.
- Page 9 Using cam lock(C) secure part (3) to parts (7) with Philips head screwdriver as per diagram.
- Page 10 Using cam lock(C) secure part (4) to parts (7) with Philips head screwdriver as per diagram.
- Page 11 Using cam lock(C) secure parts (3,4) to part (1) with Philips head screwdriver as per diagram.
- Page 12 Using bolt (H) attach part (3) to part (8) with Hex key (Q) , then put part (6) as per diagram. Note: Do not fully tighten all bolts .
- Page 13 Using bolt (H) attach part (8) to part (1) , bolt (E) attach part (5) to parts (3,4) with Hex key (Q) , then put part (6) as per diagram.
- Page 14 Using screw (S) attach parts (9) to part (5) with Philips head screwdriver as per diagram.
- Page 15 Using bolt (F) attach part (2) into parts (1,8) with Hex key (Q) as per diagram. Note:Fully tighten all bolts.
- Page 16 Using screw (L) secure plastic wedge (K) to part (6) with Philips head screwdriver as per diagram.
- Page 17 Step 13 Using screw (M) attach drawer slider (T) to parts (10,11,15,16) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.17...
- Page 18 Step 14 Using screw (R) attach parts (10,11) to part (12), parts (15,16) to part (17) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.18...
- Page 19 Secure cam bolt (B) into parts (13,18) and using bolt (P) attach parts (13,18) to handle (N) with Philips head screwdriver as per diagram.
- Page 20 Step 16 Put parts (14) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.20...
- Page 21 Step 17 Using cam lock(C) secure part (13) to parts (10,11) ,part (18) to parts (15,16) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.21...
- Page 22 Step 18 Place sticker (D) cover the holes as per diagram . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.22...
- Page 23 If you need to remove the drawer, please pull the drawer all the way out,press or lift the plastic release lever and pull out the drawer and then re-assembled the drawer until it was going in smoothly . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.23...
