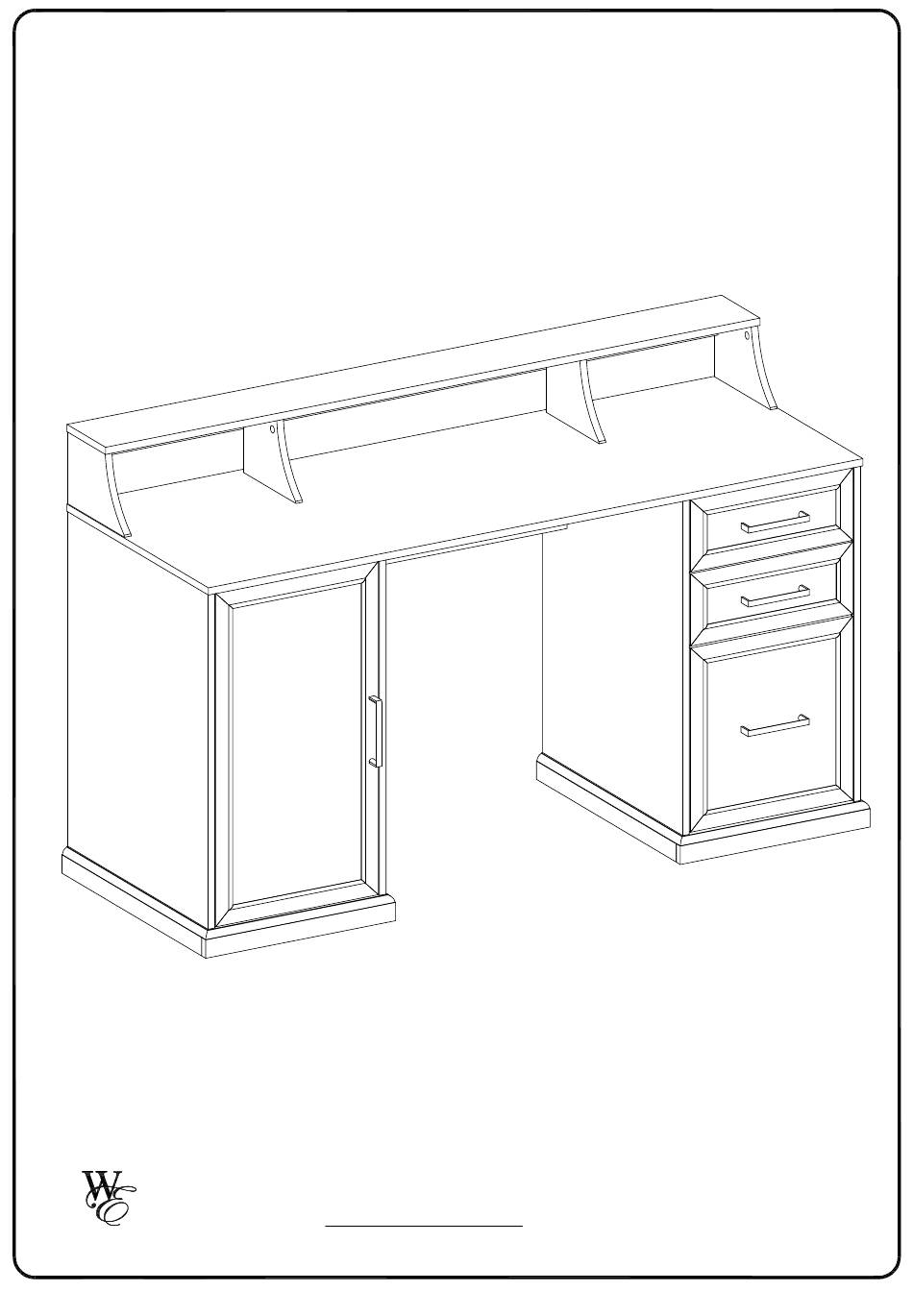

Item # : DW58GAV
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, report damage,
or request parts. www.walkeredison.com
TM
Revised 20/10/2020 (L)
Walker Edison
®
©
Copyright
2020 b
Walker Edison Furniture Co., LLC. All rights reserved.
P.1
y

Advertisement

loading
Need help?

Need help?

Do you have a question about the DW58GAV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Walker Edison DW58GAV

Summary of Contents for Walker Edison DW58GAV

  • Page 1 Item # : DW58GAV Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 20/10/2020 (L) Walker Edison ® © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.

  • Page 2: General Assembly Guidelines

    Concealed hinges are three-way adjustable. Horizontal In-and-Out Vertical by screw adjustment by loosening the hinge-arm Via slots in the mounting mounting screw or via cam plate or via cam adjustment adjustment © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.

  • Page 3: Parts List

    Parts List © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.

  • Page 4: Hardware List

    12 pcs Bracket Ø6x12mm 32 pcs Bolt Plastic wedge Hex key Ø4x38mm 12 pcs Screw Handle Ø5/32"x16mm Bolt Shelf support pin Ø3x17mm Screw Plastic wedge Door stopper Ø3x15mm Screw © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 5 Glue tube Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 6 Step 1 Insert wooden dowel (A) into parts (2,19,20) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 7 Step 2 Insert wooden dowel (A) into parts (14,15,16,17), then secure cam bolt (C) into parts (1,17) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 8 Step 3 Using Cam lock(D) secure parts (14,17) to part (2)with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 9 Step 4 Using Cam lock(D) secure parts (2,14,17) to part (1)with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 10 Step 5 Using Cam lock(D) secure parts (15,16) to part (1)with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.10...
  • Page 11 Step 6 Using screw (G) attach part (3) into parts (14,15,16,17) with Hex key (N) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.11...
  • Page 12 Step 7 Secure cam bolt (C) into part (3), then using screw (W) attach door stopper (V) to part (3) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.12...
  • Page 13 Pick up the slider arm (Z) and separate the slide runner for the following Steps. Extend the slide runner all the way forward,press the plastic release lever of the slider arm up and pull the slide runner complete out . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.13...
  • Page 14 Pick up the slider arm (AA) and separate the slide runner for the following Steps. Extend the slide runner all the way forward,press the plastic release lever of the slider arm up and pull the slide runner complete out . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.14...
  • Page 15 Using screw (X) attach drawer sliders (AA,Z) to parts (5,7) with Philips head screwdriver as per diagram.
  • Page 16 Step 11 Insert wooden dowel (A) into parts (4,5,6), then secure cam bolt (C) into parts (5,6) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.16...
  • Page 17 Step 12 Insert wooden dowel (A) into part (7), then secure cam bolt (C) into part (7) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.17...
  • Page 18 Step 13 Using Cam lock(D) secure part (19) to parts (5,7) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.18...
  • Page 19 Step 14 Using screw (G) attach part (8) into parts (4,6,5,7) with Hex key (N) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.19...
  • Page 20 Using screw(X) attach bracket (K) to parts (10,11,13) with Philips head screwdriver , then using bolt (L) attach plastic wedge (M) to parts (10,11,12,13) with hex key (N) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.20...
  • Page 21 Using screw (X) attach bracket (K) on part (13) to parts (10,11) , then using screw (X) attach bracket (K) on parts (10,11) to part (12) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.21...
  • Page 22 Step 17 Using bolt (L) secure plastic wedge (M) to parts (8) with Hex key (N) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.22...
  • Page 23 Step 18 Put parts (21,22) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.23...
  • Page 24 Step 19 Using Cam lock(D) secure part (20) to parts (6,7) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.24...
  • Page 25 Step 20 Using Cam lock(D) secure part (3) to parts (4,5,6,7,20) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.25...
  • Page 26 Step 21 Using screw (T) secure plastic wedge (U) to parts (21,22) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.26...
  • Page 27 Insert wooden dowel (B) into parts (23,24,25),then secure cam bolt (C) into parts (26,31) ,using handle bolt (R) secure handle (Q) to parts (26,31) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.27...
  • Page 28 Step 23 Using screw (X) attach drawer slider (AA) to parts (23,24) ,drawer slider (Z) to parts (28,29) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.28...
  • Page 29 Step 24 Using screw (P) attach parts (28,29) to part (30) ,parts (23,24) to part (25) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.29...
  • Page 30 Step 25 Put parts (27,32) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.30...
  • Page 31 Using Cam lock(E) secure part (31) to parts (28,29) , part (26) to parts (23,24) with Philips head screwdriver as per diagram.
  • Page 32 Place sticker (F) cover the holes as per diagram .
  • Page 33 Note :If the drawer does not go in smoothly .Press or lift the plastic release lever . Pull out the slider bracket from the slider arm then re-assembled the drawer until they were going in smoothly well . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.33...
  • Page 34 Step 29 Place plate (Y) on the top of parts (23,24) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.34...

  • Page 35: Finished Edge

    (S) in the same level. So the shelf is not titled .Put part (18) into unit as per diagram. Tilt and rest part (18) onto the shelf support pins . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.35...
  • Page 36 Using screw (J) attach Europe hinge (H) into part (9) , then using handle bolt (R) secure handle (Q) to part (9) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.36...
  • Page 37 Step 32 Using screw (J) attach Europe hinge (H) into part (4) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.37...
  • Page 38 Step 33 Final Assembly © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.38...
