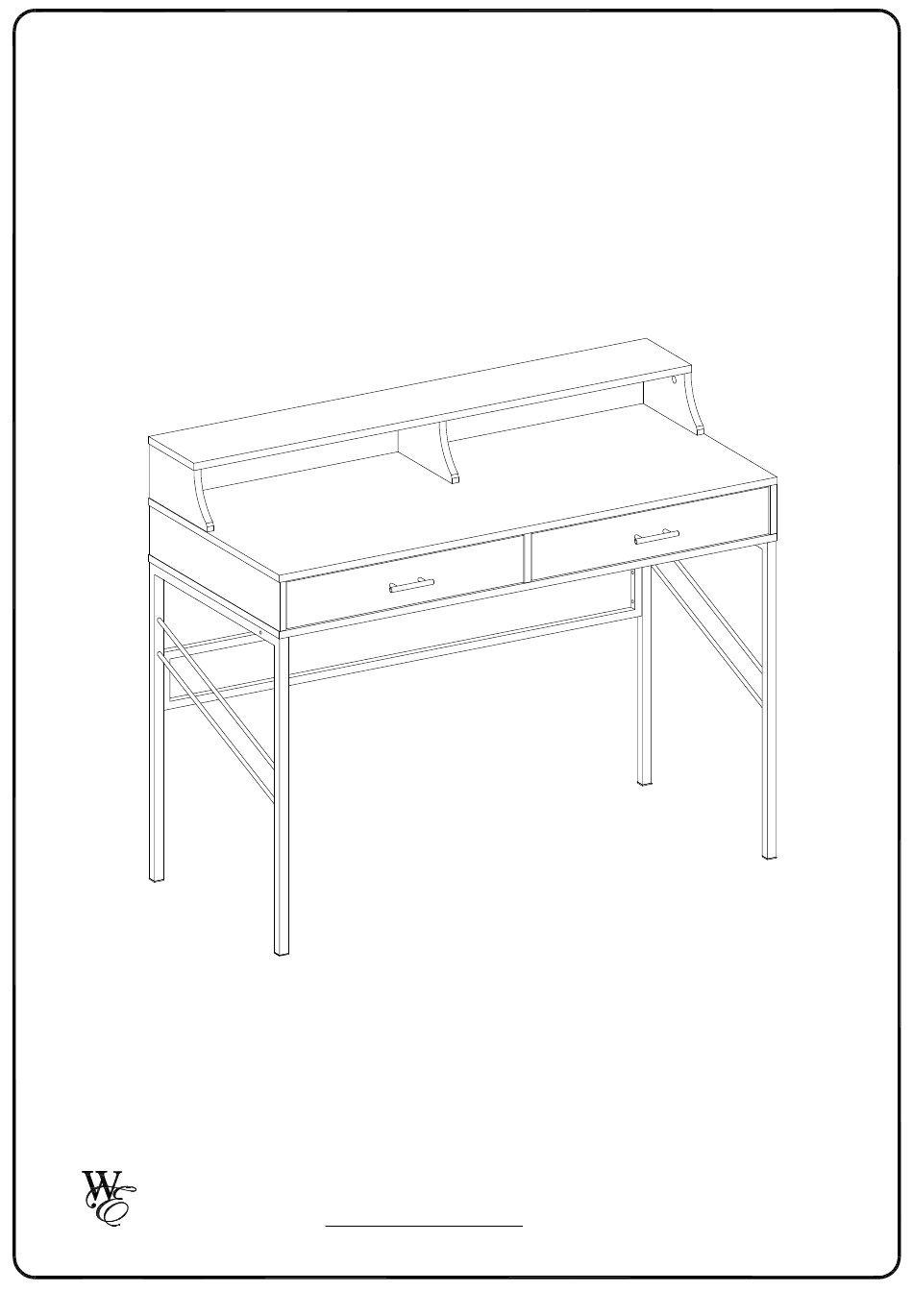

Item # : D44VETHUT
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, report damage,
or request parts. www.walkeredison.com
TM
Revised 19/10/2020 (L)
Walker Edison
®
©
Copyright
2020 b
Walker Edison Furniture Co., LLC. All rights reserved.
P.1
y
Advertisement
Related Manuals for Walker Edison D44VETHUT
Summary of Contents for Walker Edison D44VETHUT
- Page 1 Item # : D44VETHUT Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 19/10/2020 (L) Walker Edison ® © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 3: Parts List
Parts List © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. -
Page 4: Hardware List
Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. - Page 5 Pick up the slider arm (Q) and separate the slide runner for the following Steps. Extend the slide runner all the way forward,press the plastic release lever of the slider arm up and pull the slide runner complete out . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
- Page 6 Step 2 Using screw (M) attach drawer slider (Q) to parts (16,17) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
- Page 7 Secure cam bolt (C) into parts (1,2) with Philips head screwdriver as per diagram.
- Page 8 Insert wooden dowel (A) into parts (4,5,6,7,8,9) as per diagram.
- Page 9 Step 5 Using screw (M) attach drawer slider (Q) to parts (7,8,9) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
- Page 10 Using Cam lock (B) secure parts (4,5,6) to part (1) with Philips head screwdriver as per diagram.
- Page 11 Put part (12) as per diagram.
- Page 12 Using screw (K) attach part (2) to parts (4,5,6) with Philips head screwdriver as per diagram.
- Page 13 Step 9 Using Cam lock(B) secure parts (7,8,9) to part (2) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.13...
- Page 14 Step 10 Put part (13) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.14...
- Page 15 Step 11 Using screw (K) attach part (3) to parts (7,8,9) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.15...
- Page 16 Using Bolt (E) attach parts (10,11) into part (15), then using bolt (F) attach part (14) to parts (10,11) with Hex key (G) as per diagram.
- Page 17 Using Bolt (F) attach parts (10,11) into part (3) with Hex key (G) as per diagram.
- Page 18 Using screw (J) secure plastic wedge (H) to parts (12,13) with Philips head screwdriver as per diagram.
- Page 19 Secure cam bolt (C) into part (19) ,then using handle bolt ( P) secure handle (N) to part (19) with Philips head screwdriver as per diagram.
- Page 20 Step 16 Using screw (K) attach parts (16,17) to part (18) with Philips head screwdriver ,then insert part (20) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.20...
- Page 21 Step 17 Using Cam lock (B) secure part (19) to parts (16,17) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.21...
- Page 22 Step 18 Place sticker (D) cover the holes as per diagram . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.22...
- Page 23 . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.23...
