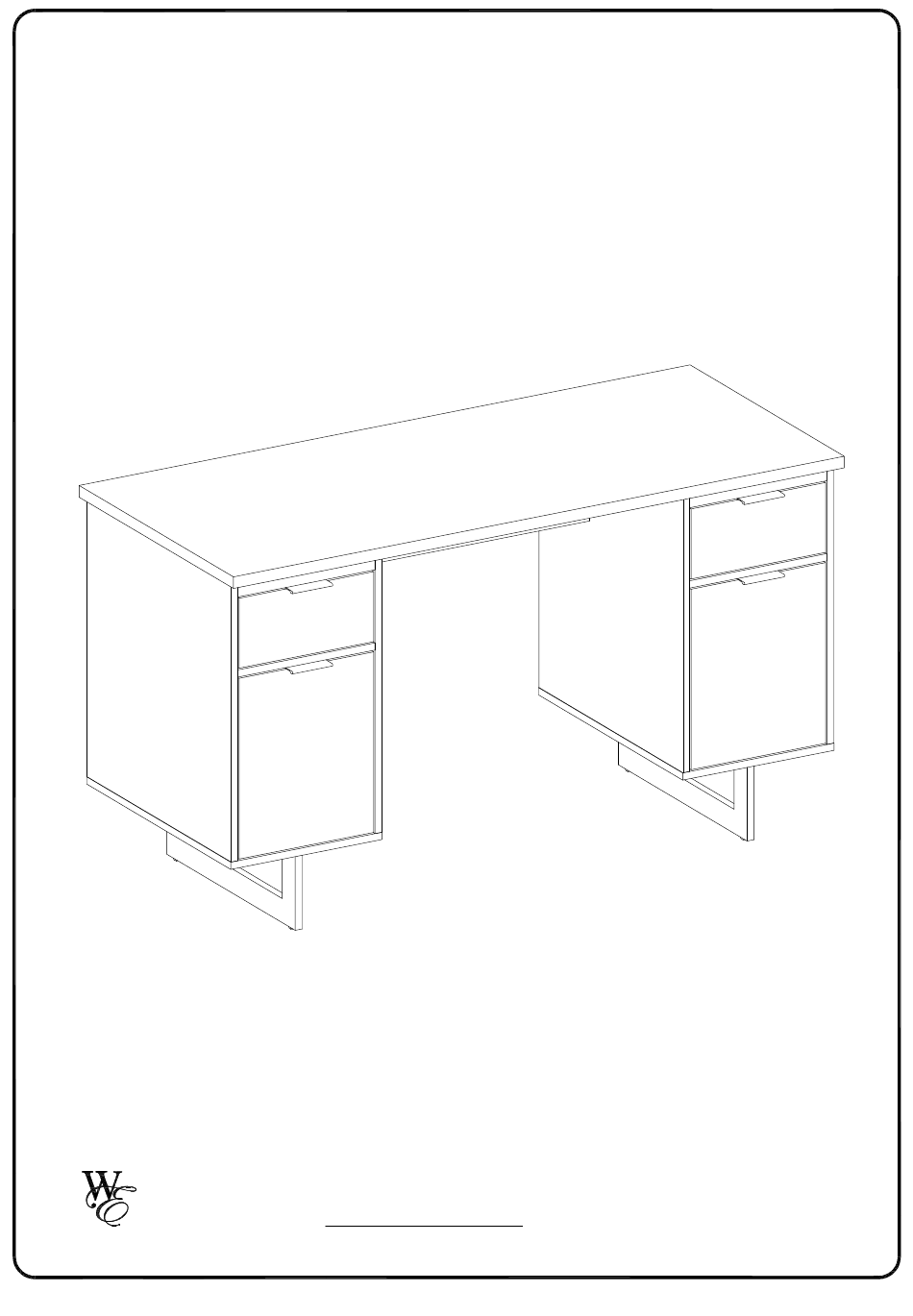

Item # : DW54PEREX
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, report damage,
or request parts. www.walkeredison.com
TM
Revised 15/06/2020 (L)
Walker Edison
®
©
Copyright
2020 b
Walker Edison Furniture Co., LLC. All rights reserved.
P.1
y

Advertisement

loading
Need help?

Need help?

Do you have a question about the DW54PEREX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Walker Edison DW54PEREX

  • Page 1 Item # : DW54PEREX Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 15/06/2020 (L) Walker Edison ® © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 4: Hardware List

    Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. © Copyright 2020, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 5 Pick up the slider arm (T) and separate the slide Runner for the following Steps. Extend the Slide .Runner all the way forward,press the plastic release lever of the slider arm up and pull the Slide Runner Complete out . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 6 Step 2 Using Screw (L) attach part (T) to parts (18,19) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 7 Insert wooden dowel (A) into parts (7,8,11,12) ,then secure Cam bolt (B) into part (7) and using Screw (L) attach door stopper (P) to parts (11,12) with Philips head screwdriver as per diagram.
  • Page 8 Insert wooden dowel (A) into parts (9,10) ,then secure Cam bolt (B) into part (1) with Philips head screwdriver as per diagram.
  • Page 9 Using Screw (M) secure part (10) to part (1) with Philips head screwdriver as per diagram.
  • Page 10 Insert wooden dowel (A) into parts (2,3,4,5) ,then secure Cam bolt (B) into parts (2,3,4,5) with Philips head screwdriver as per diagram.
  • Page 11 Step 7 Using Screw (L) secure part (T) into parts (2,3,4,5) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.11...
  • Page 12 Step 8 Using Cam lock (C) secure part (11) into part (3) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.12...
  • Page 13 Step 9 Using Cam lock (C) secure part (11) into part (2) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.13...
  • Page 14 Step 10 Using Cam lock (C) secure part (12) into part (4) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.14...
  • Page 15 Step 11 Using Cam lock (C) secure part (12) into part (5) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.15...
  • Page 16 Using Cam lock (C) secure part (8) into part (7) with Philips head screwdriver as per diagram.
  • Page 17 Step 13 Using Cam lock (C) secure parts (7,8) into part (2) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.17...
  • Page 18 Using Bolt (H) attach Connecting Iron Sheet (J) to parts (3,8) with Hex Key (G) as per diagram.
  • Page 19 Step 15 Using Cam lock (C) secure parts (7,8) into part (5) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.19...
  • Page 20 Using Bolt (H) attach Connecting Iron Sheet (J) to parts (4,8) with Hex Key (G) as per diagram.
  • Page 21 Using Screw (F) attach Part (8) to part (9) with Hex Key (G) as per diagram.
  • Page 22 Put part (13) as per diagram.
  • Page 23 Using Screw (F) attach part (6) into parts (2,3,4,5) with Hex Key (G) as per diagram.
  • Page 24 Using Bolt (H) attach part (17) to part (6) with Hex key (G) as per diagram.
  • Page 25 Using Cam lock (C) secure part (1) into parts (2,3,4,5,7,9) with Philips head screwdriver as per diagram.
  • Page 26 Secure Cam bolt (B) into part (21) and using Screw (L) attach Handle (K) to parts (15,16,21),finally using Screw (R) attach Europe Hinge (Q) to parts (15,16) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.26...
  • Page 27 Step 23 Using Screw (M) attach parts (18,19) to part (20) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.27...
  • Page 28 Step 24 Put part (22) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.28...
  • Page 29 Step 25 Using Cam lock(D) secure part (21) to parts (18,19) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.29...
  • Page 30 Step 26 Place sticker (E) cover the holes as per diagram . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.30...
  • Page 31 Note :If the drawer does not go in smoothly .Press or lift the plastic release lever . Pull out the slider bracket from the slider arm then re-assembled the drawer until they were going in smoothly well . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.31...
  • Page 32 Insert shelf support pin (N) into parts (2,3,4,5) as per diagram. Make sure you place the shelf support pins (N) in the same level. So the shelf is not titled .Put part (14) into unit as per diagram. Tilt and rest the adjustable shelf(14) onto the shelf support pins .
  • Page 33 Using Screw (R) attach Europe Hinge (Q) to part (2) with Philips head screwdriver as per diagram.
  • Page 34 Using Screw (R) attach Europe Hinge (Q) to part (5) with Philips head screwdriver as per diagram.
  • Page 35 Position the assembled unit at the desired location ,if necessary adjust the floor leveler at the bottom of the leg to level the unit .
