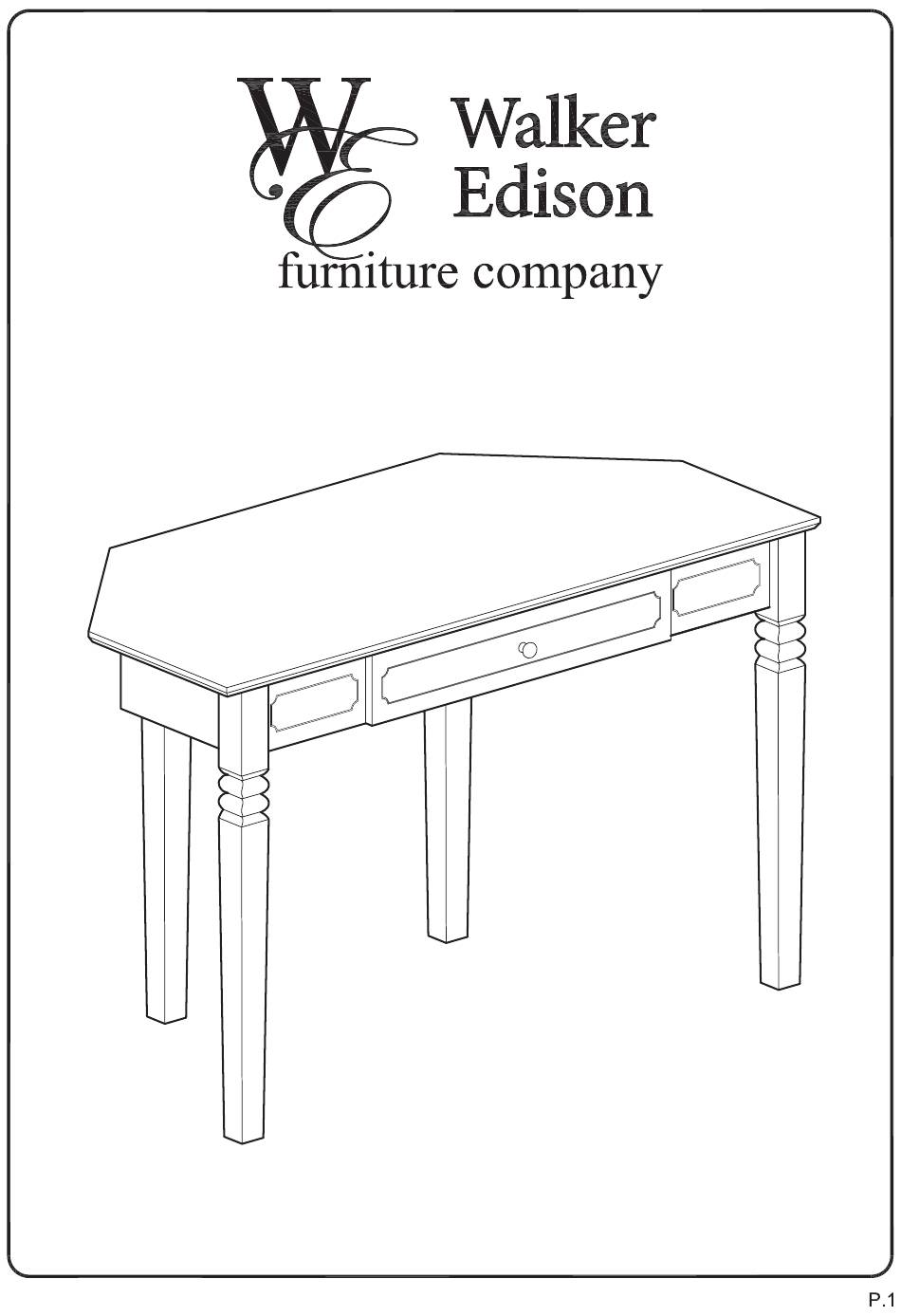

- Page 1 Item #: DW48C28 Assembly Instructions For our most current instructions, to request missing, lost or broken parts, or for any other Customer Service issues, please visit our website at www.walkeredison.com or call us at 877-207-5906. Revised 10/2011...
-
Page 2: General Assembly Guidelines
General Assembly Guidelines Insure that all parts and hardware are available before beginning assembly. Follow each step carefully to insure the proper assembly of this product. III. Two people are recommended for ease in the assembly of this product. The main types of hardware used to assemble this product are screws, bolts and washers. -
Page 4: Hardware List
Hardware List Fixed drawer track Left drawer track Right drawer track Right drawer lock Left drawer lock... - Page 5 Carefully slide panels (2,3) into place along the interior of desk top (1). Attach panels (2,3) to desk top (1) using screws (A). Tighten screws (A) with a screwdriver. Rubber stopper Attach fixed drawer tracks (C) to panels (2,3) using screws (B). Insure that the small rubber stoppers of fixed drawer tracks (C) are towards the back of the desk as shown above.
- Page 6 Carefully slide desk legs (5) into place. Attach desk legs (5) to desk top (1) using washers (R), spring washers (Q) and bolts (P). Tighten bolts (P) with wrench (S). Attach panels (4) to desk top (1) using screws (A). Tighten screws (A) with a screwdriver.
- Page 7 Attach left drawer lock (G) to drawer side (6) using screws (J). Attach right drawer lock (F) to drawer side (7) using screws (J). Tighten all screws (J) with a screwdriver. Attach drawer sides (6,7) to drawer back (8) using screws (L). Insure that the drawer locks are on the interior of the drawer assembly.
- Page 8 Attach drawer bottom (10) to drawer sides (6,7) and drawer back (8) using screws (L). Tighten screws (L) with a screwdriver. Attach left drawer track (D) and right drawer track (E) to drawer bottom (10) as shown above using screws (J).
- Page 9 Align drawer front (9) with drawer bottom (10). Place hinges (H) into the slots of drawer pieces (9,10) and attach them to the drawer pieces using screws (K). Attach knob (N) to drawer front (9) using bolt (M). Tighten screws (K) and bolt (M) with a screwdriver. Carefully slide the drawer into the desk assembly.
