MAGNETIC BELT DRIVE INDOOR
CYCLING BIKE
SF-B1877
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B1877 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunny Health & Fitness SF-B1877

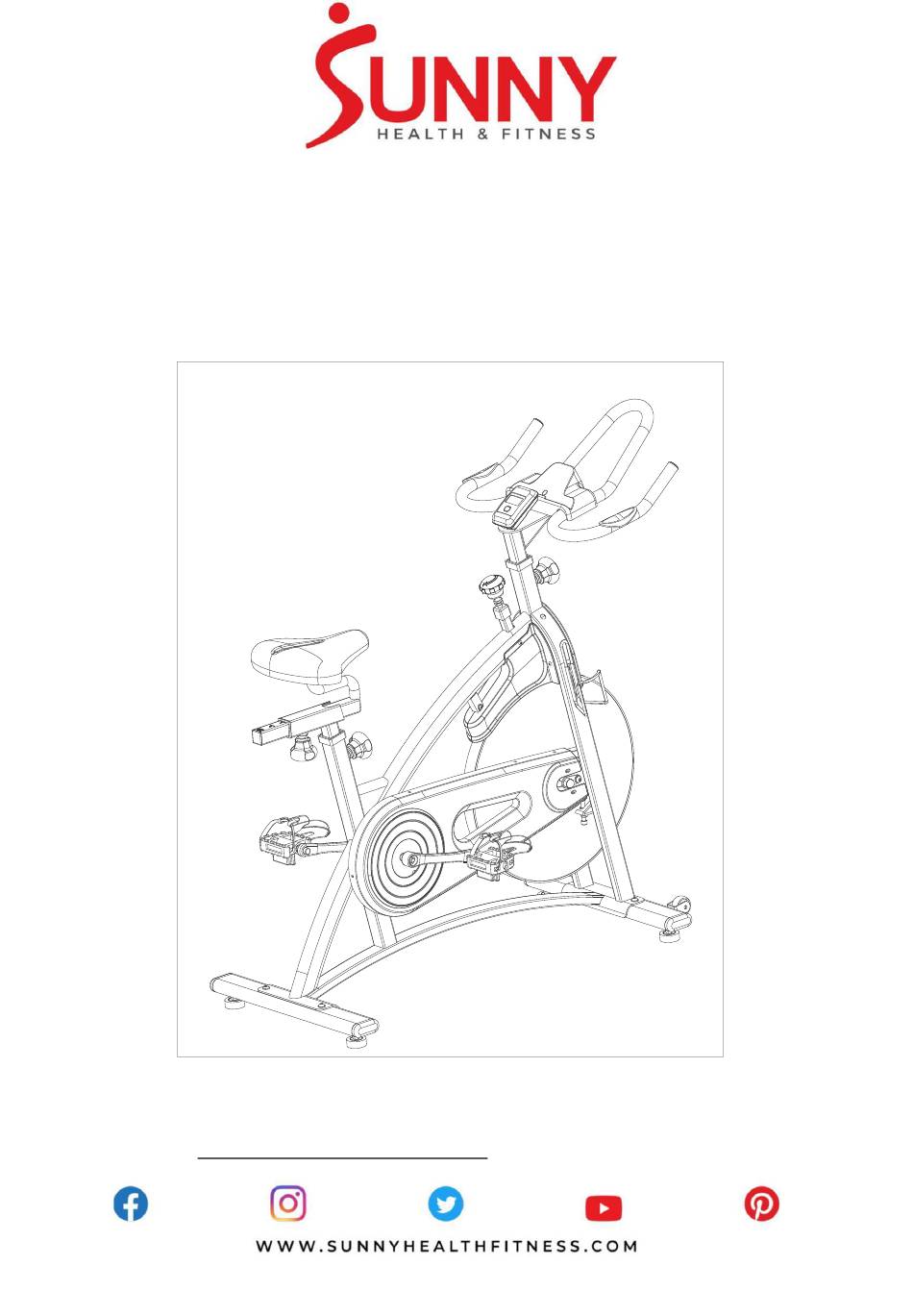

  • Page 1 MAGNETIC BELT DRIVE INDOOR CYCLING BIKE SF-B1877 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM 81 72 70 82 49 48 21 43 100 100 18 17 25 26 20 19 HARDWARE PACKAGE #37 M10*H9.5*S17 2PCS #67 M10*35*15*H6 2PCS #65 φ8.4*φ16*1.6 4PCS #100 M8*20*S5 4PCS #72 M5*10 1PC #93 S5-S6 1PC #94 S13-S14-S15 1PC #95 S10-13-17-22 1PC #4 M16*1.5 1PC...
  • Page 4: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Seat Post LTF8163 Inductor Seat Handlebar Post Magnetic Bracket Seat Slider M8*S13 Adjustment Knob M16*1.5 Wave Washer D17*Φ22*30 Seat 98-2 C-clip Rear Stabilizer Right Decorative Front Stabilizer 220*191*67 80g Cover Left Decorative Main Frame 220*191*67 80g Cover...
  • Page 5 No. Description Spec. Qty. Description Spec. Qty. Inner Belt Cover 504*259*23 Allen Wrench S5-S6 Handlebar (B) Spanner S13-14-15 Handle Pulse Spanner S10-13-17-22 Washer Φ6.1*Φ9.3*t1.6 Handle Pulse Wire Φ23*Φ29*600 Φ22*Φ17.1*10 Foam (A) Spacer Φ23*Φ29*420 Foam (B) Screw M8*15 Rear Shipping Screw ST4.2*15 Tube Inductor...
  • Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: #65 Φ8.4*Φ16*1.6 2PCS #98 M8*15 2PCS Rear Shipping Tube (No. 99) is pre-assembled on Main Frame (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: #4 M16*1.5 1PC Pull out the Seat Post (No. 1) from Main Frame (No. 8). Turn the Seat Post (No. 1) at 180° as left picture showed.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: #52L/R 9/16*20*H8*S22 2PCS WARNING! Read instructions carefully #73 D5*φ13*1 2PCS improper assembly cause permanent #74 M5*15*φ10 2PCS damage to your bike.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Loosen and remove the [seat slider] Adjustment Knob (No. 4). Insert Seat Slider (No. 3) into the Seat Post (No.
  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AAA batteries from computer box. 2. Press the buckle of battery cover on the back of the Computer (No. 40), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 40). Pay attention to the battery + and –...
  • Page 11: Exercise Computer

    EXERCISE COMPUTER FUNCTION BUTTON: MODE: 1. Press the button for selection function display value on LCD. 2. Press the button and hold for 2 seconds to reset all values except odometer to zero. Note: When the user replaces batteries, all the values will reset to ZERO automatically.
  • Page 12 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the bike is stabled and secured. If you notice that the bike is unbalanced during use, you should adjust the Foot Levelers (No. 13) located beneath the Front &...
  • Page 13: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS This is general information for daily, weekly, and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check if all hardware is secure, such as: the equipment: seat, frame, and handlebars. bottle holder, flywheel nuts, belt/chain guard Pay special attention to the seat post, bolts, brake caliper lock nuts, and brake...
