Sunny Health & Fitness SF-B1879 User Manual

Synergy magnetic indoor cycling bike
Hide thumbs Also See for SF-B1879:

Advertisement

Table of Contents

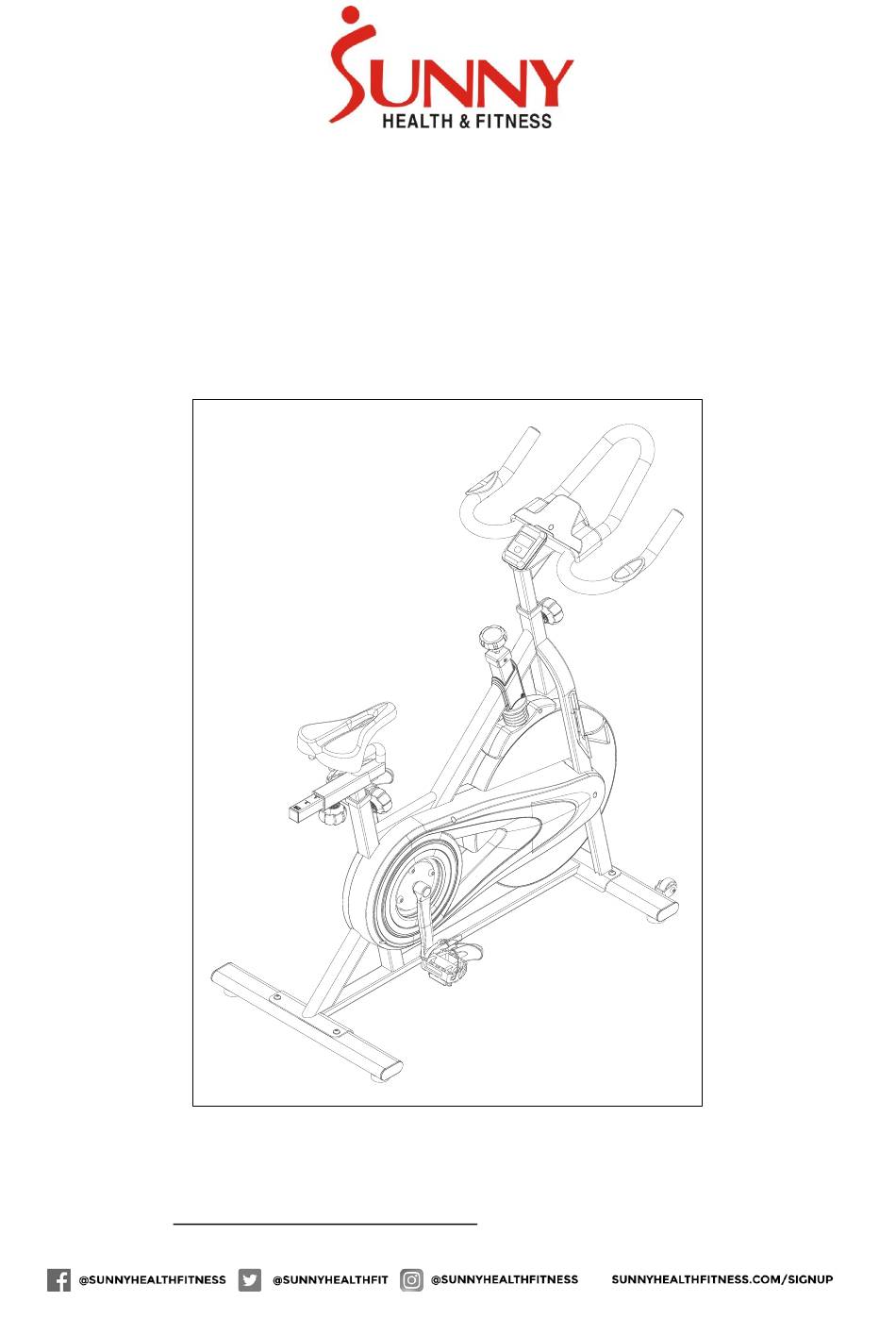

SYNERGY MAGNETIC INDOOR
CYCLING BIKE
SF-B1879
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B1879 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-B1879

Summary of Contents for Sunny Health & Fitness SF-B1879

  • Page 1 SYNERGY MAGNETIC INDOOR CYCLING BIKE SF-B1879 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 4: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Foam Grip Front Stabilizer Foam Grip Rear Stabilizer Round End Cap Handlebar Post Middle Axle Handlebar Brake Washer Front Handlebar Sleeve 1 Seat Post Sleeve 2 Seat Slider Bearing 6004-ZZ Magnet Bracket Water Bottle Holder Brake Assembly...

  • Page 5: Hardware Package

    Description Spec. Qty. Description Spec. Qty. Φ6.1*Φ9.3*1.6 Spring Washer Inductor Seat Φ20.7*Φ27*0.3 Wave Washer Crank Cap Φ20 Spring Washer 95L/R Nylon Nut 9/16 Hex Thin Nut M12*1.0P Sensor Wire 800mm Bearing 6203-2RS Socket Head Bolt M5*10 Φ8.4*Φ20*1.5 Sleeve Flat Washer Φ8.1*Φ12.3*2.1 Flywheel Axle Spring Washer...
  • Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: #100 M8*15 4PCS Unscrew the 4 Hexagonal Screws (No. 100) #104 S6-S5 φ...
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: #90 M10*35 2PCS Loose and pull out Adjustment Knob (No. 23), insert Handlebar Post (No. 4) into Main Frame #88 M10 2PCS #105 S13-S16 (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: Attach the Water Bottle Holder (No. 49) and Dumbbell Holder (No. 50) onto the Main Frame #97 M5*10 4PCS (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 6: WARNING! Read instructions carefully as improper assembly may cause permanent #95L 9/16 1PC #106 S19-S22 1PC damage to your bike.

  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION AND REPLACEMENT Battery Battery Cover Battery BATTERY INSTALLATION: 1. Take out 2 AAA batteries from computer box. 2. Press the buckle of battery cover on the back of the Computer (No. 54), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 54). Pay attention to the battery + and –...
  • Page 11 ADJUSTMENTS AND USAGE GUIDE ADJUSTING THE HEIGHT AND BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the bike is secured. If you notice that the bike is unbalanced during use, adjust the Adjustment Foot Pad (No.

  • Page 12: Adjusting The Handlebar

    ADJUSTING THE HANDLEBAR It is important that the handlebar and seat are both set to the correct height to your body. To adjust the handlebar height, loosen and pull the Adjustment Knob (No. 23) outward, then slide the Handlebar (No. 5) up or down to the desired height.

  • Page 13: Exercise Computer

    EXERCISE COMPUTER FUNCTION BUTTON: MODE: Press the button for selection function display value on LCD. Press the button and hold for 2 seconds to reset all values except odometer to zero. Note: When the user replaces batteries, all the values will reset to ZERO automatically.

  • Page 14: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all the 1. Check if all hardware is secure, such as: equipment: seat, frame, and handlebars. Pay water bottle holder, flywheel nuts, belt/chain special attention to the seat post, handlebar post guard bolts, brake caliper lock nuts, and...
