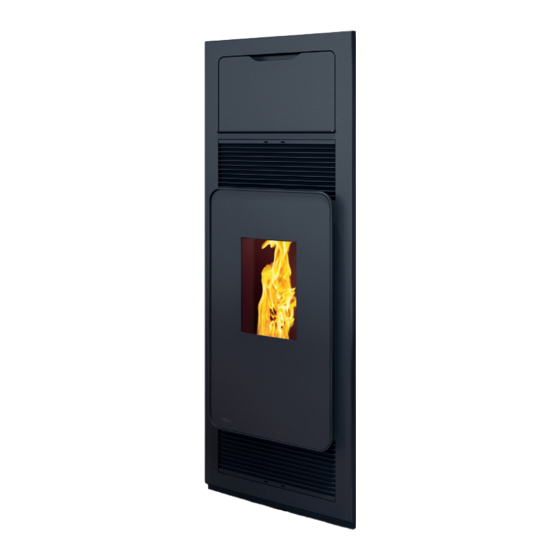

Summary of Contents for RIKA REVIVO 140

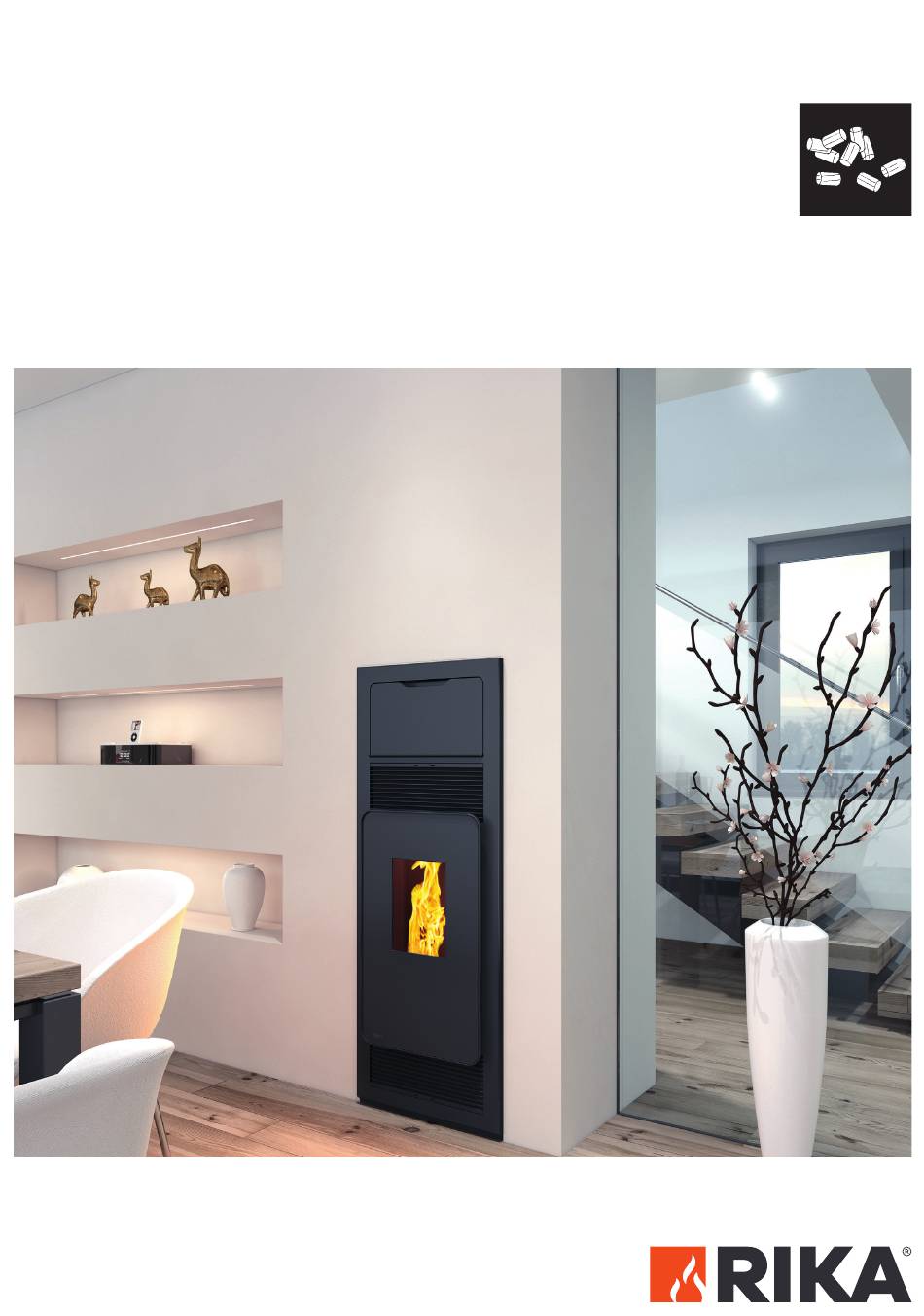

  • Page 1 REVIVO 140 REVIVO 125 Operating manual...
  • Page 2: Table Of Contents

    Feeding in external combustion air ����������������������������������������������������������������������������������������������������������������������������������������������������������������������17 8. COMFORT OPTIONS Room sensor, Radio room sensor ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 Interface for various options �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 External room thermostat �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 External connection cable bridge ������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 Option firenet ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 RIKA VOICE ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18...
  • Page 3: Explanations To Symbols

    9. MAINTENANCE Open the combustion chamber door ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 Empty the ash drawer ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 19 Cleaning the flame temperature sensor ��������������������������������������������������������������������������������������������������������������������������������������������������������� 19 Cleaning of the burn pot - daily ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 19 Cleaning the door glass �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 Cleaning painted surfaces ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 10.
  • Page 4: Technical Documentation - Ecodesign

    RIKA Innovative Ofentechnik GmbH Andreas Bloderer Contact: Address: Müllerviertel 20 4563 Micheldorf Austria Details of the device Model Identifier: REVIVO 125 / REVIVO 140 Equivalent models: Technologisches Gewerbemuseum, Wexstraße 19-23, 1200 Notified body: Wien, Austria Notified body no.: 1532 Test report no.: HL-8480...
  • Page 5 Micheldorf, 16.12.2021 In case of doubt as well as missing or incorrect translations, the German version is the only valid one.  Subject to technical and visual changes as well as layout and printing errors. © 2021 | RIKA Innovative Ofentechnik GmbH...
  • Page 6: Technical Data

    3. TECHNICAL DATA Spare part overview exploded diagram...
  • Page 9: Spare Part Overview Exploded Diagram Revivo 125

    Spare part overview exploded diagram REVIVO 125...
  • Page 10: Spare Part Overview Article Numbers

    Spare part overview article numbers Art.Nr. Description Art.Nr. Description B18309 Decorative door assy N105179 Hexagonal nut M10 L03494 Hinge plate L03330 Washer L03493 Securing plate LB00701 Rail angle right N112027 Magnet Z36778 Blind cover N112190 Hexagon socket screw B18188 Cover combustion chamber assy Z37140 Combustion chamber door black N100476...
  • Page 11 Art.Nr. Description Art.Nr. Description N112086 Grub screw Additional motherboard for motor, incl. B16030 cable N112318 Spring-loaded pressure piece N112030 Screw motor, stepless 107 *2 LB00717 Front panel L03410 Support for motor Z37305 Opener for ventilation grid N108486 Allen screw LB00730 Convection fins Z11915 Lock ring conveyer screw...
  • Page 12: Dimensions

    [kW] 2,5 - 6 Room heating capacity (depending [m3] 50 - 160 on house insulation) Fuel consumption [kg/h] 0,6 - 1,3 Pellet container capacity REVIVO 140* [l]/[kg] 76/~50 Pellet container capacity REVIVO 125* [l]/[kg] 62/~40 Electric supply [V]/[Hz] 230/50 Average electrical input...
  • Page 13: Important Information

    The hardening of the paint is finished after the first as well as the regulations and rules applicable locally� heating with high power� RIKA stoves should only be installed in rooms with normal humidity (dry areas according to VDE 0100 Part 200)� The furnaces are not Safety distances splash water protected and may not be installed in wet areas�...
  • Page 14: Prior To Set Up

    Prior to set up Stoves type 1 (BA 1): Suitable for multiple occupancy� (Note the different country Floor bearing capacity regulations�) Ensure that the substructure is capable of bearing the weight of the These may only be operated with the combustion chamber door stove prior to set-up�...
  • Page 15: Brief Information On Fuel - Pellets

    5. BRIEF INFORMATION ON FUEL - PELLETS Your pellet stove is only approved for the burning of pellets of tested What are pellets? quality� Please ask your pellet stove dealer for tested fuel and a list of monitored fuel manufacturers� Wood pellets are a standardised fuel�...
  • Page 16: Technology And Safety Functions

    6. TECHNOLOGY AND SAFETY FUNCTIONS The technological advances in your new combi stove are the result of Automatic cleaning cycle years of testing and practical experience� The practical advantages of your pellet stove are convincing: The speed of the flue gas fan is increased every hour for a short period to blow ash from the burn pot, increasing the operational safety�...
  • Page 17: Installing The Stove

    Connect at the air intake either a pipe Ø 125 mm for log wood and We recommend original flue pipes from RIKA for proper connection� combi stoves, or Ø 50 mm or Ø 60 mm for pellet stoves� Fix it with a hose clamp (not included!)�...
  • Page 18: Comfort Options

    RIKA Firenet module and Amazon Alexa RIKA VOICE allows you to control your RIKA stove by simply speaking to it� Power on or off, switching between modes or adjusting the preferred heat output or room temperature: a few words is all it takes! More detailed information could be obtained at www.rika.at or from...
  • Page 19: Maintenance

    FIRE RISK! In a cold state, dispose it of in the household waste� Note We recommend at least once a year to have all maintenance carried out by your RIKA dealer� Open the combustion chamber door To open or close the combustion chamber door use the included key�...
  • Page 20: Cleaning

    10. CLEANING Depending on pellet consumption, a message prompting cleaning of Extract the stove completely towards the front, securing it with a lock the stove appears on the display in regular intervals� This message screw on either side� Thus, the stove remains in extracted position for can be acknowledged on the Touch Display, while continuing maintenance works�...
  • Page 21: Cleaning The Flue Pipes

    Combustion air - intake Loosen the wing screws on all cleaning openings, as marked� If necessary, please also clean the air intake with a hoover� Note Only when the stove is cold! You could vacuum out embers – FIRE RISK! Cleaning the convection air openings Vacuum clean any dust deposits from the convection air openings at regular intervals�...
  • Page 22: Problems - Possible Solutions

    11. PROBLEMS - POSSIBLE SOLUTIONS Problem 1 Problem 3 Fire burns with weak, orange flame� Pellets heap up in fire trough, Flue gas discharge when wood is added and during heating phase� window soots up� Cause(s) Cause(s) Leaking cleaning openings Insufficient combustion air Chimney draught too low Poor chimney draught...
  • Page 23: Instructions For Commissioning Protocol

    Please return 1 completed protocol for putting into service to blockers, lack of cleaning or maintenance and stove malfunctions� RIKA Innovative Ofentechnik GmbH, Müllerviertel 20, 4563 Thorough instruction can prevent many complaints� Micheldorf, Austria�...
  • Page 24 The client confirms the reception of correct and clear instructions. Our general terms and conditions shall apply. I consent to the collection, saving and use of my personal data (name, address, e-mail) by RIKA Innovative Ofentechnik GmbH for marketing and information purposes.
  • Page 25: Guarantee Conditions

    In cases of doubt, or in the case of missing or incorrect translations, the German version is always the sole valid version. In the interest of ensuring damage limitation in good time, the guarantee claim should be sent in writing to the RIKA specialist or contract dealer.
  • Page 26: Disposal Information

    15. DISPOSAL INFORMATION RIKA Innovative Ofentechnik GmbH is ensuring that its products Extract from the waste code of the are eco-friendly throughout the product life cycle� This is why our European Waste List Regulation commitment for electronic products goes beyond the end of their product life cycle�...
  • Page 28 German version is the only Müllerviertel 20 valid one. Subject to technical and visual 4563 Micheldorf / AUSTRIA changes as well as layout and printing errors.. Tel.: +43 (0)7582/686 - 41, Fax: -43 © 2021 | RIKA Innovative Ofentechnik GmbH verkauf@rika.at www.rika.at...
