Summary of Contents for DFI WL053

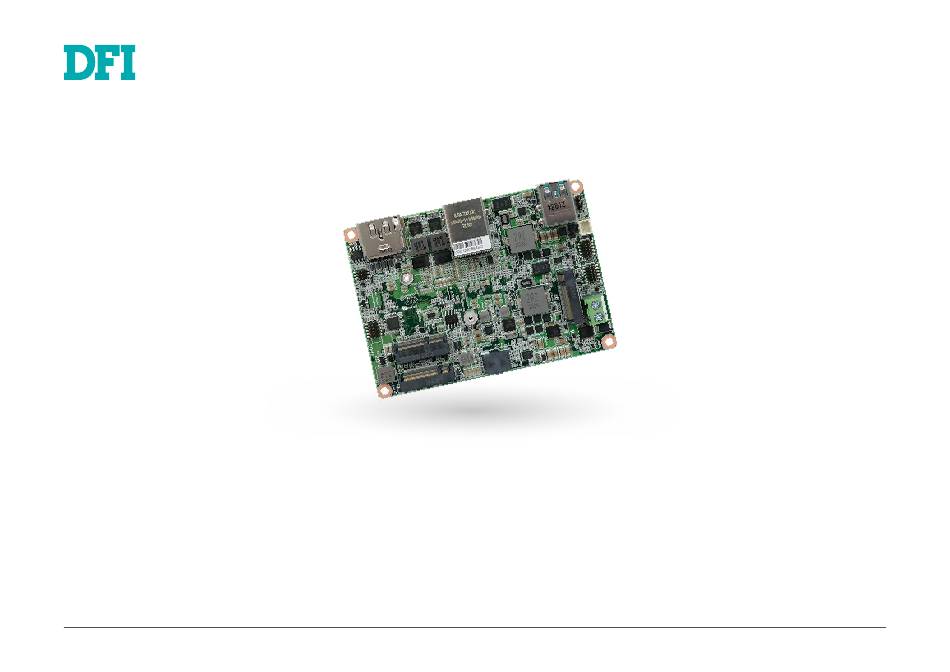

- Page 1 WL053 2.5" Pico-ITX Motherboard User’s Manual ver.0A_MVT_3-3121_16-34...
-
Page 2: Fcc And Doc Statement On Class B
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | WL053... - Page 3 Rear I/O Ports ........................14 USB Ports ........................14 Graphics Display ......................15 LAN ..........................15 Internal I/O Connectors .......................16 SMBus ..........................16 CPU Fan ..........................16 USB Ports ........................17 Digital I/O ........................18 COM1 ..........................18 Power Connector ......................19 Front Panel ........................20 Battery Header .......................21 User's Manual | WL053...
-
Page 4: About This Manual
To avoid damage to the system, use the correct AC input voltage range. • To reduce the risk of electric shock, unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | WL053... -
Page 5: About The Package
When installing the system board in a new system, you will need at least the following internal The package contains the following items. If any of these items are missing or damaged, components. please contact your dealer or sales representative for assistance. • 1 WL053 board • Memory module • 1 Heat spreader (Height: 11mm) A71-808331-000G •... -
Page 6: Specifications
1 x RS-232/422/485 (1.27mm pitch) 2 x USB 2.0 (1.27mm pitch) 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security fTPM2.0 User's Manual | WL053... - Page 7 IRQ or DMA interrupt. Wake-On-USB This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. User's Manual | WL053...
-
Page 8: Board Layout
BGA 1528 SM_BUS Buzzer SMBus WL051 AUJ1 CPU Fan SO_DIMM1 DDR4 SODIMM Front Audio REV.1 Bottom View DP++/ HDMI Front Panel Battery UBCN1 USB 2 6/7 M2CN3.G3 M.2-E COM1 M.2-B(R0) DC-in M2CN1 M2CN3 CN13 CN14 M.2-B(R1) User's Manual | WL053... -
Page 9: System Memory
4. Make sure the notch on memory card is aligned to the key on the socket. DDR4_1 The system board supports the following memory interface. DDR4 DIMM Notch Socket Top View Eject Tab Eject Tab Socket Side View Step 1 User's Manual | WL053 Step 2... -
Page 10: Removing The Memory Module
The tabs snap automatically to the edges of the card and lock the card in place. Step 1 Step 1 Step 1 Step 1 Step 2 Step 2 Step 2 Step 2 Step 3 Step 3 Step 3 Step 3 User's Manual | WL053... - Page 11 I n t e S c r e h a s e t a l T o C r f a c I n t e S i d e C P U User's Manual | WL053...
- Page 12 T o C „ Module side to chassis „ Heat spreader side to chassis s i s h a s T o C User's Manual | WL053...
-
Page 13: Jumper Settings
2. Put a jumper cap on JP5’s pin 2 and pin 3. Wait for a few seconds and set JP5 back to its default setting, i.e. jumper cap on pin 1 and pin 2. 3. Plug the power cord and power-on the system. „ 1-2 On: Normal (default) „ 2-3 On: Clear CMOS User's Manual | WL053... -
Page 14: Rear I/O Ports
Plug and Play peripherals. Wake-On-USB Keyboard/Mouse The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. User's Manual | WL053... -
Page 15: Graphics Display
DP++ is supported by the system board for converting to DVI and HDMI signals. HDMI The HDMI port which carries both digital audio and video signals is used to connect a LCD monitor or digital TV that has the HDMI port. User's Manual | WL053... -
Page 16: Internal I/O Connectors
„ SMBus Pin Assignment „ CPU Fan Pin Assignment Assignment Assignment Assignment 3V3SB Sense SMBus_Clock SMBus_SDA Power SMBus_Alert N.C. User's Manual | WL053... - Page 17 The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up the system from the S state(s). M2CN3.G3 M2CN1 M2CN3 „ USB2.0 Pin Assignment CN13 CN14 Assignment Assignment 5V_USB6_7 5V_USB6_7 USB2_6_C_N USB2_7_C_N USB2_6_C_P USB2_7_C_P N.C. N.C. User's Manual | WL053...
- Page 18 „ Digital I/O Pin Assignment „ Digital I/O Pin Assignment Assignment Assignment Assignment Assignment DIO_7 DIO_6 DIO_7 DIO_6 DIO_5 DIO_4 DIO_5 DIO_4 DIO_3 DIO_2 DIO_3 DIO_2 DIO_1 DIO_0 DIO_1 DIO_0 User's Manual | WL053...
-
Page 19: Power Connector
Please make sure the positive and negative wires are installed correctly. Using a voltage more than the recommended range may fail to boot the system or cause damage to the system board. User's Manual | WL053... - Page 20 This switch allows you to reboot without having to power off the system. M2CN1 M2CN3 CN13 CN14 „ Front Panel Pin Assignment Assignment Pin Assignment PWSIN 3V3SB SUS_LED RESET HD_LED „ Front Panel Pin Combination Name Pin Name 3V3SB PWSIN PWR-LED PWR-SW SUS_LED 3V3SB HD-LED RESET HD_LED RESET User's Manual | WL053...
- Page 21 • Replace only with the same or equivalent type recommended by the manufacturer. • Dispose of used batteries according to local ordinance. • Higher temperature or harsh environment may limit the functionality of the tape wrapped on battery. User's Manual | WL053...
-
Page 22: Chapter 3 - Bios Settings
When “X” appears on the left of a particular field, it indicates that a submenu which contains restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | WL053... - Page 23 The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | WL053...
-
Page 24: Cpu Configuration
Select number of cores to enable in each processor package. To choose a re-applied state (S0,S5,Last State) after a power-failure (G3 State). Note: Some of the fields may not be available when the features are not supported by the equipped CPU. User's Manual | WL053... -
Page 25: Power & Performance
Value must be between Max and Min power limits(specified by PACKAGE_POWER_SKU_MSR). Other SKUs: This value must be between Min Power and TDP Limit. For PL2, the processor applies control policies if package power does not exceed this limit. User's Manual | WL053... -
Page 26: Firmware Update Configuration
This field is used to enable or disable the ME FW Image Re-Flash function, which allows the achieve hardware-level security via cryptographic keys. user to update the ME firmware. Pending operation Schedule an operation for the Security Device, the change of state needs a reboot. User's Manual | WL053... -
Page 27: Serial Port Configuration
Electrical Interface Mode SuperIO WatchDog Timer Choose mode between RS232 / RS485 / RS422 Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. Note: The sub-menus are detailed in following sections. User's Manual | WL053... -
Page 28: Smart Fan Function
▼ CPU Smart Fan Control = [Manual] Fix Fan Speed Count Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will always operate at the specified speed regardless of gauged temperatures. User's Manual | WL053... -
Page 29: Serial Port Console Redirection
Select data bits: 7 bits or 8 bits. Parity Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or Hardware RTS/CTS. User's Manual | WL053... -
Page 30: Usb Configuration
This field controls the execution of UEFI and Legacy Storage OpROM. Video This field controls the execution of UEFI and Legacy Video OpROM. Other PCI devices This field determines OpROM execution policy for devices other than Network, Storage or Video. User's Manual | WL053... -
Page 31: Network Stack Configuration
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | WL053... -
Page 32: Graphics Configuration
Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc. To configure graphics and PCH-IO relevant settings. Primary Display Select which of AUTO/IGFX/PCI Graphics device to be the primary display. Internal Graphics Keep Auto enabled based on the setup options. User's Manual | WL053... -
Page 33: Pch-Io Configuration
Adjust the maximum value of TOLUD or set it to Dynamic to vary based on largest MMIO length Detect Non-Compliance Device of installed graphic controller. Enable to detect non-Compliance PCI Express Device by consuming more POST time. Note: The sub-menus are detailed in following sections. User's Manual | WL053... -
Page 34: Sata And Rst Configuration
Use RST Legacy OROM This field shows up when SATA Mode Selection is set to Intel RST Premium With Intel Optane System Acceleration. Port and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | WL053... -
Page 35: Secure Boot
Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | WL053... -
Page 36: Key Management
Export the Secure Boot settings (i.e. all keys and signatures) as files to the root directory of a file system device. Press Enter and select a storage device listed in the pop-up menu. The saved files will be named automatically according to the type of key/signature as listed below. User's Manual | WL053... - Page 37 Refer to the Advanced > CSM Configuration for more ► Restore Setting from file information. This field will appear only when a USB flash device is detected. Select this field to restore setting from the USB flash device. User's Manual | WL053...
-
Page 38: Updating The Bios
When the BIOS IC needs to be replaced, you have to populate it properly onto the system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not. User's Manual | WL053...
