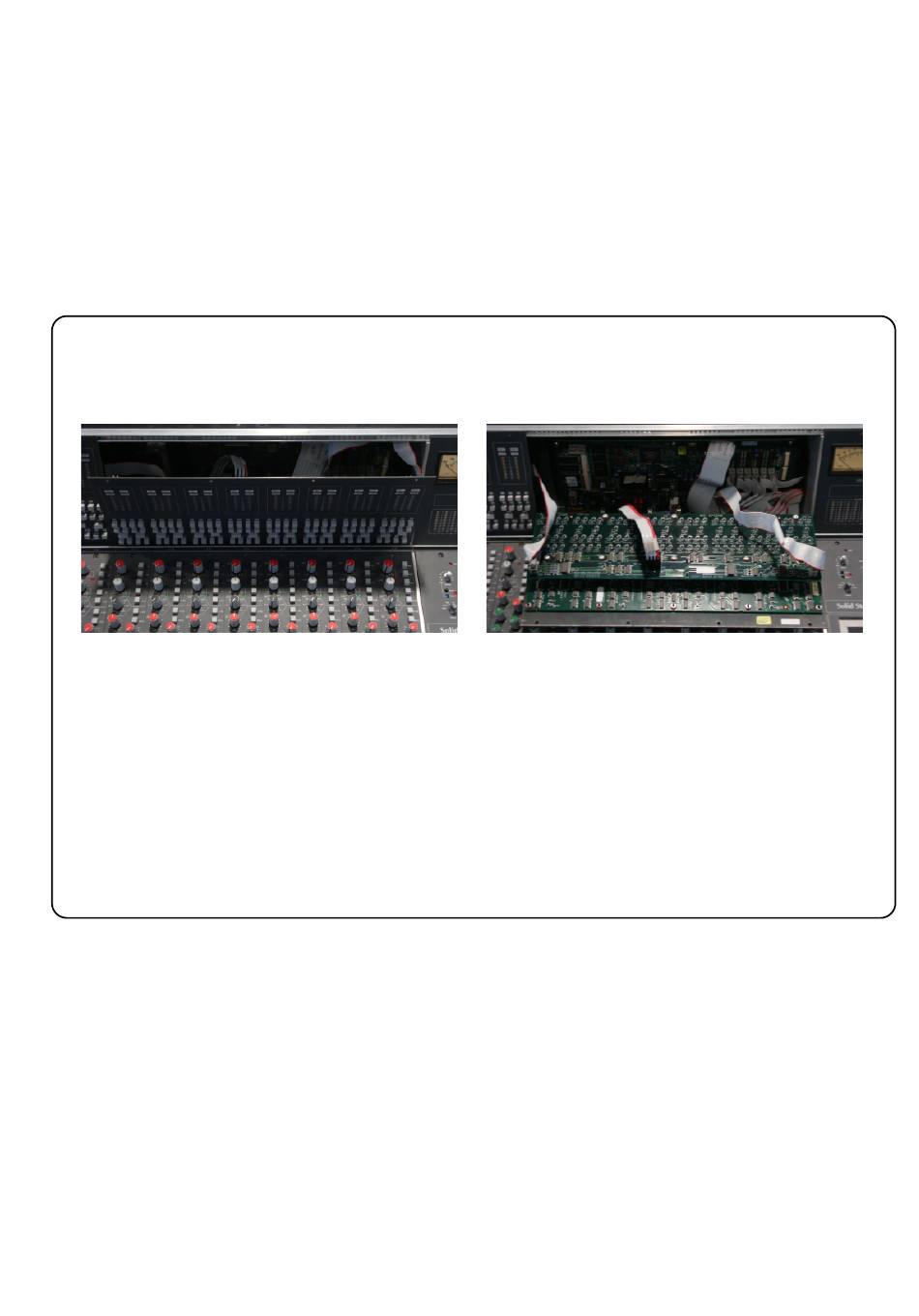

4) Using the Pozidrive screwdriver, remove the four screws securing meter panel 17-24 in position. Tilt the panel
forward slightly and lift the panel out of its slot. Lay the panel onto channels 17-24. It is not necessary to unplug
any of the meter panel's connections.
5) On consoles shipped prior to the 3rd November 2005 (serial numbers AWS001 – 144 approximately) a screening
plate covered the AWS900's CPU card. Remove this screening plate taking care not to drop any screws into the
console.
