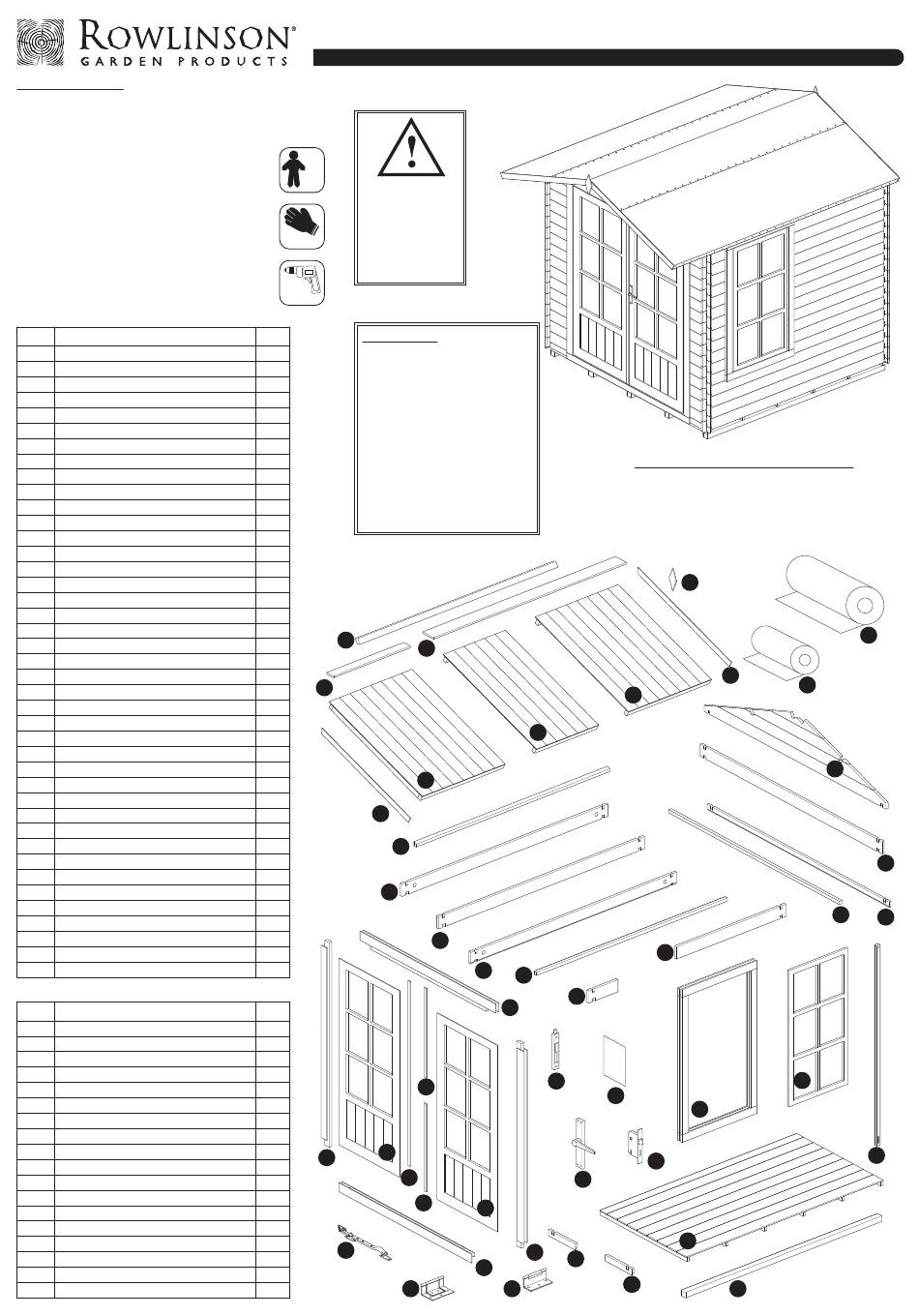

Rowlinson Garden Products Marsden Cabin Assembly Instructions

Before assembly
• We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
• Check all components prior to assembly
• This product should be assembled by no
less than two people.
• Some of the components may have sharp
edges, wear protective work gloves while
handling components.
• Never attempt to erect the assembly in
high winds.
• Drill components where indicated.
No. Components
1 Treated floor bearers
(50 x 50 x 2050mm)
2 Floor panel
3 Top door frame
4 Bottom door frame
5 Right-hand door frame
6 Left-hand door frame
7 Right-hand door
8 Left-hand door
9 Window frame
10 Window
11 Back wall base log
(2080mm)
12 Right-hand front wall base log
13 Left-hand front wall base log
14 Side wall base log
(2147mm)
15 Side wall log
(2147mm)
16 Back wall log
(2080mm)
17 Door/window log
(305mm)
18 Window log
(1140mm)
19 Side wall top log
(2147mm)
20 Apex panel
21 Angled purlin
22 Purlin
(35 x 28 x 2067mm)
23 Front right/back left roof panel
24 Mid section roof panel
25 Front left/back right roof panel
26 Roof felt
27 Roof ridge felt
28 Bargeboard
29 Finial
30 Front apex panel coverstrip
31 Back wall skirting
(28 x 28 x 1990mm)
32 Side wall skirting
(28 x 28 x 1955mm)
33 Door and window glazing
34 Lock kit
35 Door handle
36 Door weatherstrip
(12 x 45 x 750mm)
37 Door weatherstrip
(12 x 45 x 700mm)
38 Internal door coverstrip
39 Storm braces
40 Internal apex cover
41 Roof overhang apex cover
(19 x 57 x 460mm)
No. Fixings
42 Cabinet hinges (Door)
43 Storm proof hinges (window)
44 Lever action door bolt
45 Window stay
46 60mm coachbolt
47 Washers
48 Nuts
49 70mm screws
50 50mm screws
51 40mm screws
52 30mm black screws
53 25mm screws
54 20mm black screws
55 20mm roundhead screws
56 70mm nails
57 40mm nails
58 25mm nails
59 10mm felt nails
Marsden Cabin
Assembly Instructions
x 2
Gloves
work gloves while
Drill
Qty. Dimensions
•
5
2
1
1
•
1
1
1
•
1
1
1
•
1
1
(305mm)
1
(305mm)
2
18
16
44
12
2
22
2
2
4
41
2
2
2
2
1
4
2
2
1
2
18
(372x263mm)
1
2
1
1
1
4
1
1
Qty.
6
2
2
1
8
8
8
19
22
6
12
4
114
4
8
30
45
16
222
148
Caution
This product
contains glass.
Wear protective
handling these
components.
Overall dimensions
H= 2370mm
W= 2170mm
D= 2640mm
Footprint dimensions
W= 2020mm
D= 2080mm
Min. recommended base size
W= 2070mm
D= 2130mm
Door opening
W= 2080mm
D= 2150mm
40
24
23
30
21
19
15
14
32
3
37
8
38
36
7
5
4
42 43
English SS226C
Recommended tools for assembly
• Cross head screw driver
• Hammer
• Sharp knife
• Drill
•
2mm diameter drill bit
29
25
18
17
44
33
9
34
35
2
13
12
• Spanner
• Spirit level
• Silicon sealant
• Step ladder
26
28
27
20
16
31
11
10
39
1
