Rowlinson Garden Products winchester arbour Assembly Instructions

7. Finials
Hold the apex of the roof together by securing an L-bracket using 4 x 40mm screws to the underside of the front
two rafters. Use the flat bracket to join the back two rafters, secure across the join on the inside of the roof using
4 x 40mm screws. Drill two holes in four finials as shown below. Attach finials over each roof and upright join, two
on the front and two on the back. Drill four holes in the remaining finials, position one on the front and one on the
back over the join of the two roof panels at the apex. Use 4 x 40mm screws per finial. Attach the metal roof to the
upright legs using 2 x 30mm screws per leg as shown in the diagram.
40mm
40mm
Drill two holes in four finials and attach
over each roof and upright join.
Drill
Drill four holes in two finials and attach at
the roof apex.
Safety information
MPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Periodically check all fastenings for tightness
For domestic use only
If in doubt of any aspect regarding the assembly, use or safety of your arbour please contact us :
Help Line: (Normal Office Hours) 01829 261 121
Email: support@rowgar.co.uk
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
www.rowgar.co.uk
40mm
Drill
We constantly improve the quality of our products, occasionally
the components may differ from the components shown and are
only correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2015 © Rowlinson Garden Products Ltd

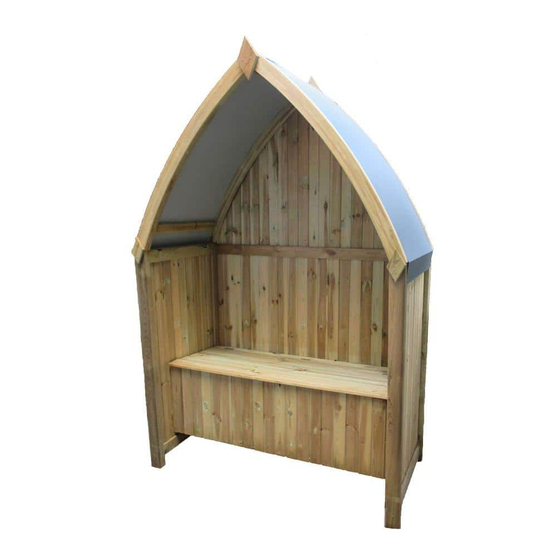

Winchester Arbour
Assembly Instructions
Before assembly
•
We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step
by step guide.The instruction sheet
is only a guide to the assembly.
Certain items may not be shown to
scale.
•
Check all components prior to assembly
•
This product should be assembled
by no less than two people.
•
Never attempt to erect the assembly
in high winds.
•
Drill all components where indicated.
x 2
Gloves
Recommended tools for assembly
•
Cross head screw driver
•
Drill with 3mm diameter drill bit
•
Step ladder
No. Components
1 Floor
2 Seat front
3 Left-hand upright
4 Right-hand upright
25mm
5 Seat
6 Seat back
7 Triangular panel
8 Left roof panel
9 Right roof panel
10 Coverstrip
11 Finial
No. Fixing kit
12 70mm screws
13 50mm screws
14 40mm screws
15 25mm black screws
16 L-bracket
17 Flat bracket
Caution
Some of the arbour
components may
have sharp edges.
Wear protective
work gloves while
handling these
components.
Drill
Qty.
1
1
1
1
8
1
1
1
1
1
1
3
6
Qty.
4
10
62
16
9
1
English SS121F
10
11
9
7
5
1
2
6
4
