Notes on Usage of Lithium Battery
The AnyTouch is delivered without inserting the battery connector in the battery holder on the back of
the unit. Be sure to set the battery when using the calendar function or SRAM. Without battery, the
contents in the SRAM or calendar will not be retained.
Specifications
Item
Battery Specification
Backup Memory
Backup Period
Detection of Voltage for Battery Lowering
Calendar Precision

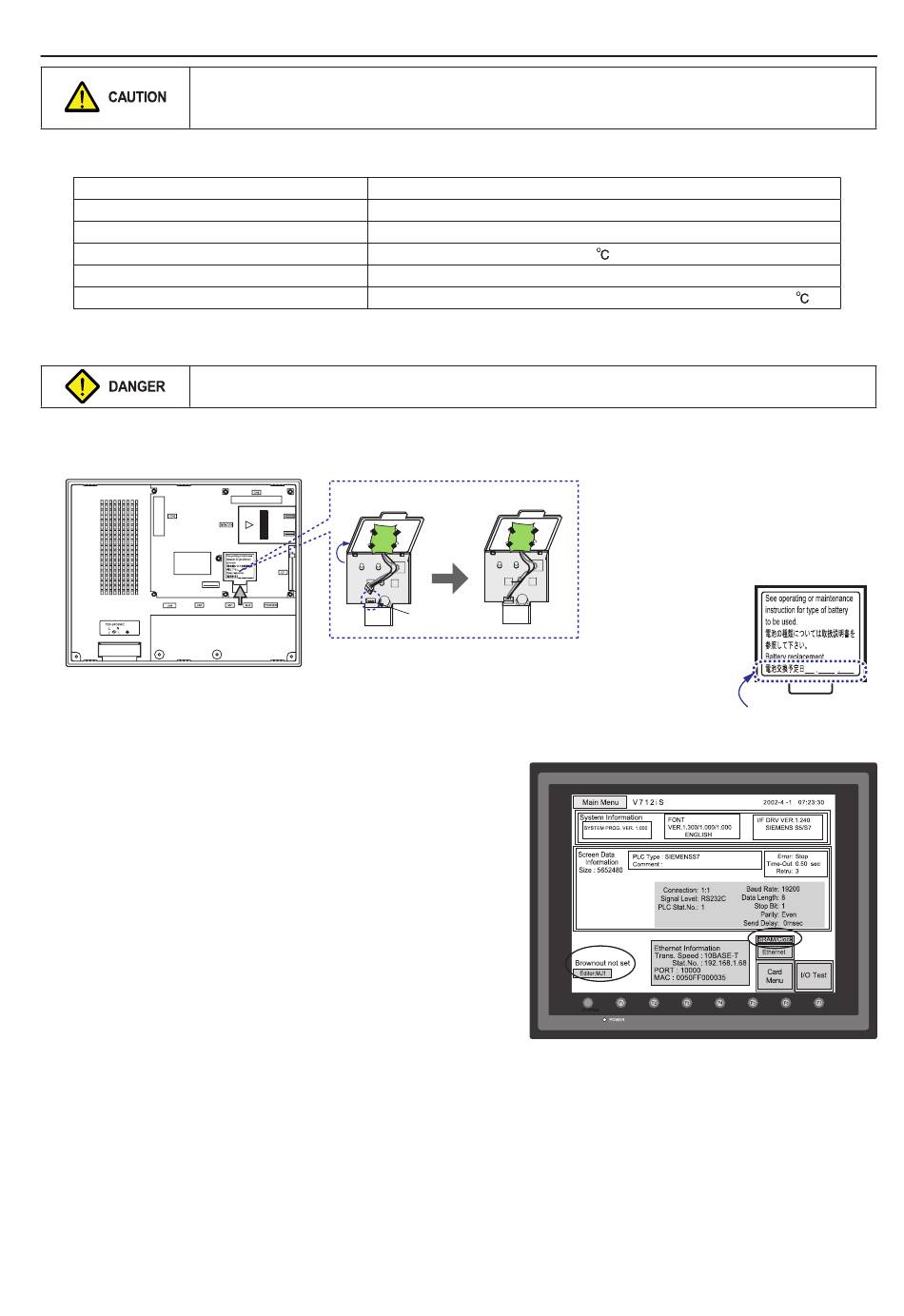

Battery Mounting Procedure
Electric shock hazards
Steps 2 to 5 must be performed when the power to the V7+ unit is turned off.
1. Turn the unit off.
2. Slide the battery holder cover in the direction of the arrow as shown in the illustration below to open it.
3. Check that the battery is securely attached to the backside of the cover, and connect the battery
connector.
4. Close the battery holder cover.
5. Enter a date five years from now for "Battery replacement" on the sticker on the battery holder.
6. Turn on the power to the V7+ unit and check that the battery
is correctly mounted on the Main Menu screen. When the
battery is not connected, the [SRAM/Clock] switch blinks and
the message "Battery not set" is displayed at the bottom left
corner. When the battery is correctly connected, the [SRAM/
Clock] switch goes out and the message is cleared. When the
battery voltage has dropped, the message "Brownout Battery"
is displayed. It is strongly recommended to replace the battery
immediately even it has not been passed for five years.

Battery Replacement Procedure

About the battery replacement procedure, refer to "V7-BT+ (Replacement Battery) Operation Instruction" attached to the
battery 'V7-BT+'.
Lithium primary battery of coin type
SRAM 64Kbyte
5 years (at the temperature of 25
Available (internal memories allocated)
Remainder on a month ± 90 seconds (at the temperature of 25
Battery holder
Connector
of battery
8
Specifications
)
)
Write down the date of
five years from now.
