Modular Jack (MJ1/MJ2)

This port is used for such connection as data transfer, temperature controller network, bar code reader, CREC, and V-I/O,
etc. The pin arrangement of modular jack is as follows:
LAN Connector (LAN)
This port is used for Ethernet (10BASE-T, 100BASE-TX) connection.
Specification: comply with IEEE802.3, UDP/IP and TCP/IP supported
MJ1, 2, and LAN port are modular jack 8pins. Check the name of the port to insert a cable to the
appropriate port. When using a LAN cable: For safety, do not connect for device that might have
excessive voltage to the network port.

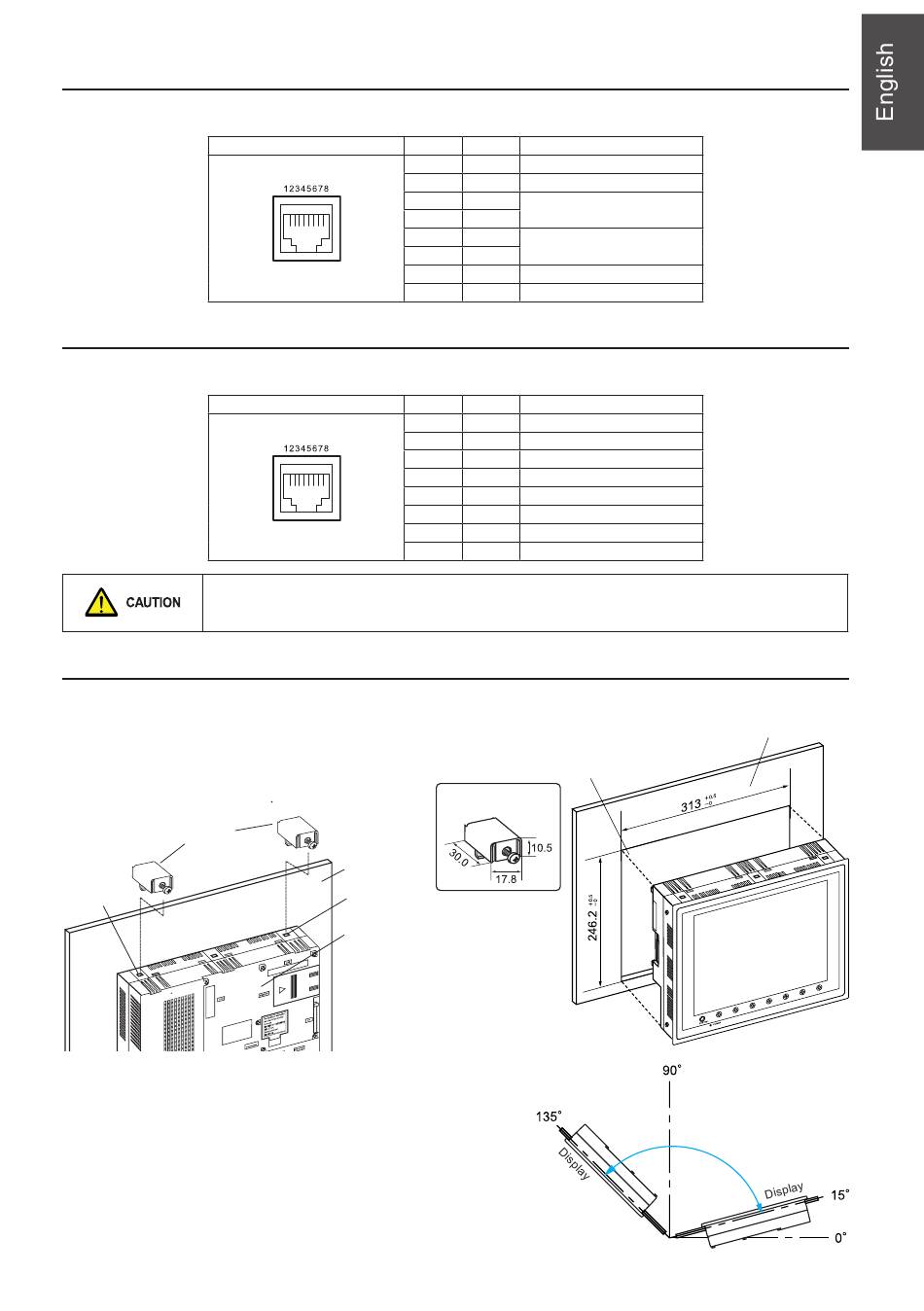

Mounting Procedure

Mounting Procedure
1. Insert the unit into the mounting panel (max. thick: 5 mm).
2. Insert four fixtures attached to the V7 Plus series into
the mounting holes, and tighten them with the locking
screws. (Torque: 0.5 to 0.7N m)
Fixture
Mounting
hole
* When the V7+ unit is attached to the mounting panel, the fixtures and frame
grounds (FG) are connected. To prevent static electricity be sure
to connect the mounting panel to the frame ground.
3. Mount the gasket so that it will be sandwiched securely
between the unit and the mounting panel.
Mounting Angle
The unit (V7+) shall be installed within the angle of 15 to 135 degrees.
MJ1/MJ2 Pin No.
1
2
3
4
5
6
7
8
V712i+ only
LAN Pin No.
1
2
3
4
5
6
7
8
Dimensions of
Fixtures (unit: mm)
Sheet metal
Mounting
hole
V7 Plus series
Signal Contents
+SD/RD RS-485 data (+)
-SD/RD RS-485 data (-)
+5V
Output power supply
Max. 150 mA
+5V
SG
Signal ground
SG
RD RS-232C receive data
SD RS-232C send data
Signal Contents
TX+ Ethernet send (+)
TX- Ethernet send (-)
RX+ Ethernet receive (+)
NC Not used
NC Not used
RX- Ethernet receive (-)
NC Not used
NC Not used
Panel cut-out hole
5
Mounting panel
