Notes on Usage of Lithium Battery
The AnyTouch is delivered without inserting the battery connector in the battery holder on the back of
the unit. Be sure to set the battery when using the calendar function or SRAM. Without battery, the
contents in the SRAM or calendar will not be retained.
Specifications
Item
Battery Specification
Backup Memory
Backup Period
Detection of Voltage for Battery Lowering Available (internal memories allocated)
Calendar Precision

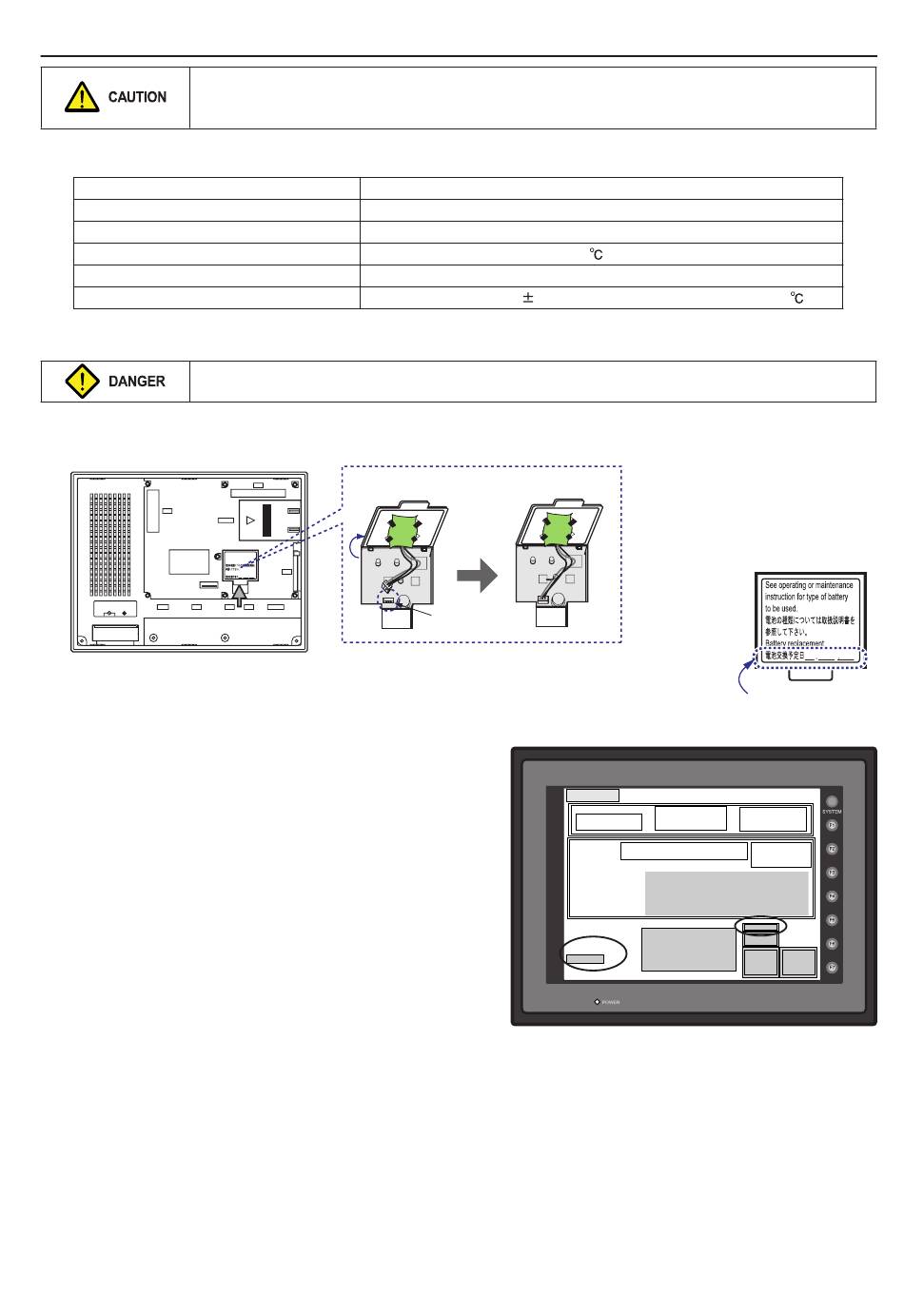

Battery Mounting Procedure

Electric shock hazards
Steps 2 to 5 must be performed when the power to the V7+ unit is turned off.
1. Turn the unit off.
2. Slide the battery holder cover in the direction of the arrow as shown in the illustration below to open it.
CN5
100-240VAC
LAN CN1
L N
3. Check that the battery is securely attached to the backside of the cover, and connect the battery
connector.
4. Close the battery holder cover.
5. Enter a date five years from now for "Battery replacement" on the sticker on the battery holder.
6. Turn on the power to the V7+ unit and check that the battery
is correctly mounted on the Main Menu screen. When the
battery is not connected, the [SRAM/Clock] switch blinks and
the message "Battery not set" is displayed at the bottom left
corner. When the battery is correctly connected, the [SRAM/
Clock] switch goes out and the message is cleared. When the
battery voltage has dropped, the message "Brownout Battery"
is displayed. It is strongly recommended to replace the battery
immediately even it has not been passed for five years.

Battery Replacement Procedure

About the battery replacement procedure, refer to "V7-BT+ (Replacement Battery) Operation Instruction" attached to the
battery 'V7-BT+'.
Lithium primary battery of coin type
SRAM 64Kbyte
5 years (at the temperature of 25
Remainder on a month
Battery holder
CN6
MEMORY
See operating or maintenance
instruction for type of battery
to be used.
CF
Battery replacement.
MJ1 MJ2 PRINTER
Specifications
90 seconds (at the temperature of 25
Connector of battery
Main Menu
System Information
SYSTEM PROG. VER. 1.000
Screen Data
Information
Size : 5652480
Brownout not set
Editor:MJ1
8
)
Write down the date of
five years from now.
V 7 1 0 i T
2002-4 -1 07:23:30
FONT I/F DRV VER.1.240
VER.1.300/1.000/1.000
SIEMENS S5/S7
ENGLISH
Error: Stop
PLC Type : SIEMENSS7
Comment : Time-Out: 0.50 sec
Retru: 3
Baud Rate: 19200
Connection: 1:1
Data Length: 8
Signal Level: RS232C
Stop Bit: 1
PLC Stat.No.: 1
Parity: Even
Send Delay: 0msec
SRAM/Clock
Ethernet Information
Ethernet
Trans. Speed : 10BASE-T
Stat.No. : 192.168.1.68
PORT : 10000
Card
MAC : 0050FF000035
Menu
)
I/O Test
