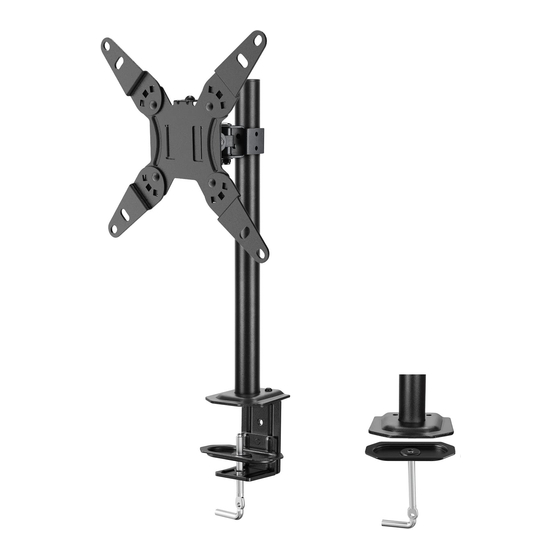

Monitor Desk Mount Instruction Manual
V3.0
Model: HNCM12-1
Thank you for choosing this HUANUO product! At HUANUO we strive to
provide you with the best quality products and services in the industry.
Should you have any issues, please don't hesitate to contact us at
Technical Support:
1-800-556-0533 Mon-Fri 8am - 8pm (CST)
Other Info:
support@huanuoav.com (US/CA)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HUANUO HNCM12-1
Summary of Contents for HUANUO HNCM12-1
- Page 1 Monitor Desk Mount Instruction Manual V3.0 Model: HNCM12-1 Thank you for choosing this HUANUO product! At HUANUO we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us at...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at 1-800-556-0533 or customer service at sup- port@huanuoav.com. CAUTION: Avoid potential personal injuries and property damage! •... - Page 3 Supplied Parts and Hardware Warning: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. Do not use dam- aged or defective parts. lf you require replacement parts, please contact our Technical Support line at 1-800-556-0533 or customer service at support@huanuoav.com.
- Page 4 Supplied Hardware for Step 4 Bolt Bolt Bolt Bolt Washer Spacer M4X12MM M4X16MM M5X15MM M6X15MM B1(x4) B2(x4) A1(x4) A2(x4) C1 (x4) C2 (x8) Supplied Hardware for Step 5 Bolt M6X15MM F (x1) Step 1 Install the Base Option A： C-Clamp Installation Small Allen Key Small...
- Page 5 Large Allen Key Desk Desk Desk Desk Tighten Desk Desk Thickness Desk Thickness Thickness...
- Page 6 Option B: Grommet Installation If there is no grommet hole on your desk, position the pole [01] on the mounting surface and mark the hole. Drill a hole using the drill bit in a diameter of 7/16 in - 55/64 in (11-22mm) at the marked position through the mounting surface.
- Page 7 Choose the Combination that Applies to Your VESA Hole Step 3 Pattern Option A No Need to Attach Extender Brackets [06] to Faceplate [05] 100 mm 75 mm For VESA hole pattern: 3x3 in (75x75mm) 4x4 in (100x100mm) Option B Need to Attach Extender Brackets [06] to Faceplate [05] 200 mm 200 mm...
- Page 8 Step 5 Hang the Monitor to the Stand Small Allen Key HEAVY! You may need assistance with this step. Step 6 Adjust the Tilt Angle and Manage the Cables Tilt Adjustment 1. If the monitors can stay at the desired height by itself, no Tilt Adjustment adjustment needed.
