T2Mk3F8Q2: Configuration Of Mercury Boards; Access Controller Position Chart For The Following Models - Altronix TROVE T2MK3F8Q2 Installation Manual

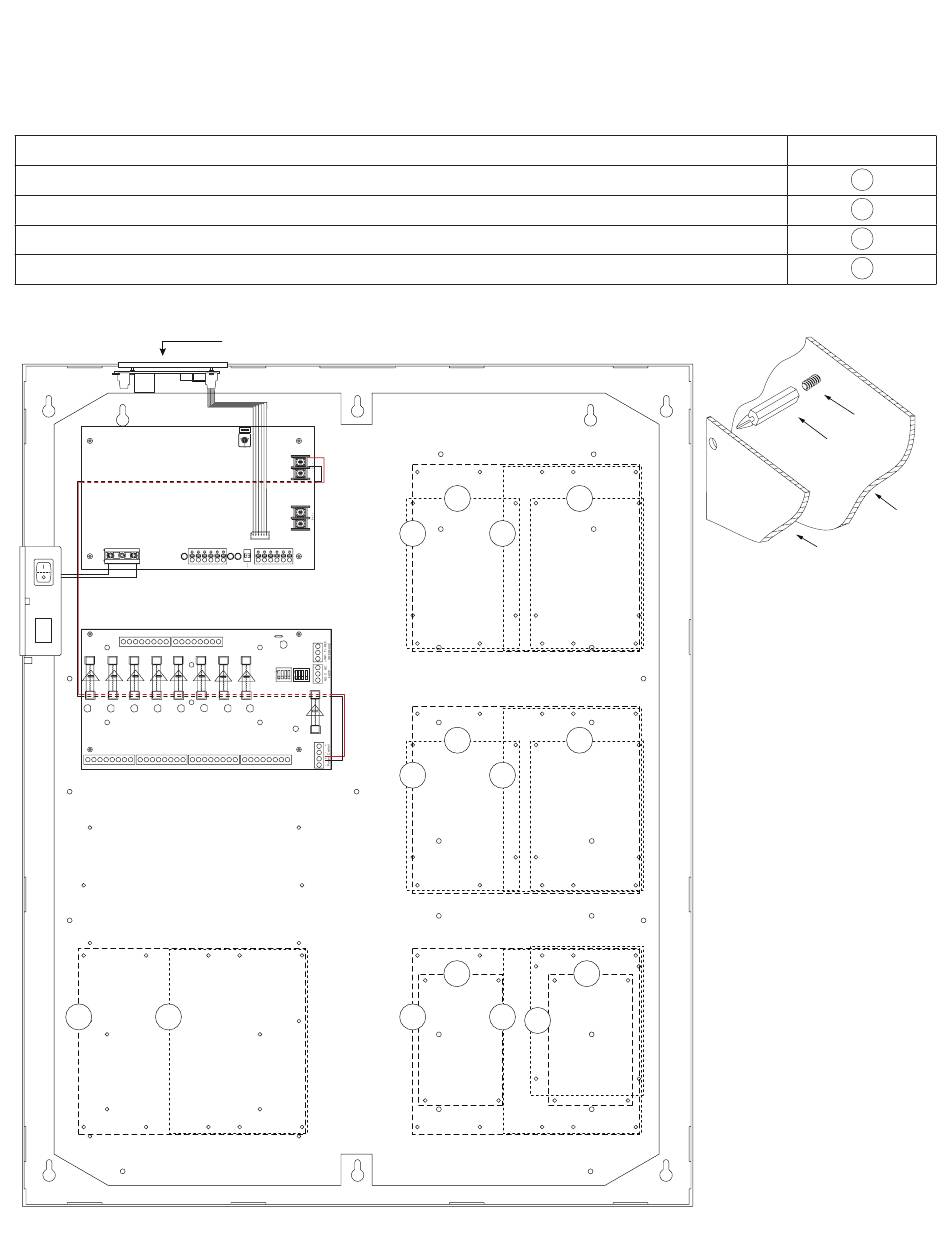

1. Fasten snap on standoffs onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 2, pg. 3).
2. Position access controller module over corresponding standoffs and depress onto snap on standoffs (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

Mercury Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
EP1501, MR51e
MR50
Fig. 2
Altronix - eFlow6NB
AC1
L G N NC C NO NC C NO
RSB1
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
5 6
1 2 3 4
F1 F2 F3 F4 F5
Altronix - ACM8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5
A
B
T2MK3F8Q2 Installation Guide

T2MK3F8Q2: Configuration of Mercury Boards:

Altronix LINQ2 Module
OFF - 24V
ON - 12V
AC DC
TRIGGER EOL NO GND +AUX-
SUPERVISED RESET
AC FAIL BAT FAIL
FACP
TRIGGER
TRG
INPUT
7 8
F6 F7 F8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 6 OUTPUT 7 OUTPUT 8
C C
A
B
C C
A
B
D D
A
B
C
Pem Mounting
A
B
C
D
Fig. 2a
Pem
Snap On
Spacer
Backplane
Mercury Board
- 3 -
