P R I N T H E A D

I N S T R U C T I O N S

The printhead is sensitive to static electricity, which

can damage the printhead or reduce its life. Ground

yourself by touching metal, such as the printer's metal

base, before touching the printhead.

I M P O R T A N T

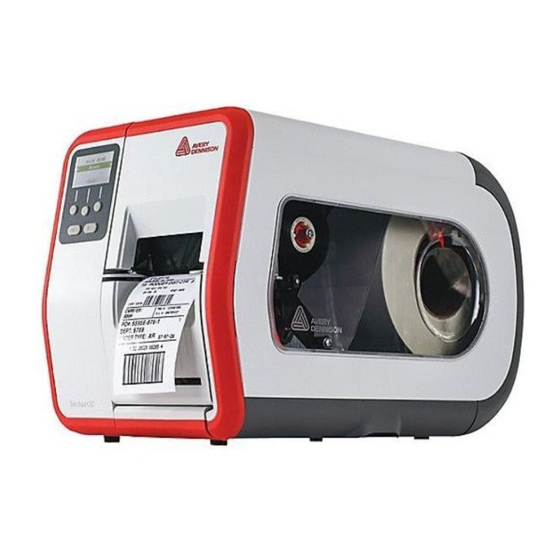

If your Avery Dennison® ADTP1/ADTP2 printer uses a

203dpi printhead, you must update the firmware and

set the Printhead Type.

Update your printer firmware to Version 3.11 or greater.

If you cannot update your firmware, adjust Print

Contrast to achieve optimal print quality or call

Technical Support.

Data streams may override settings made on the

printer.

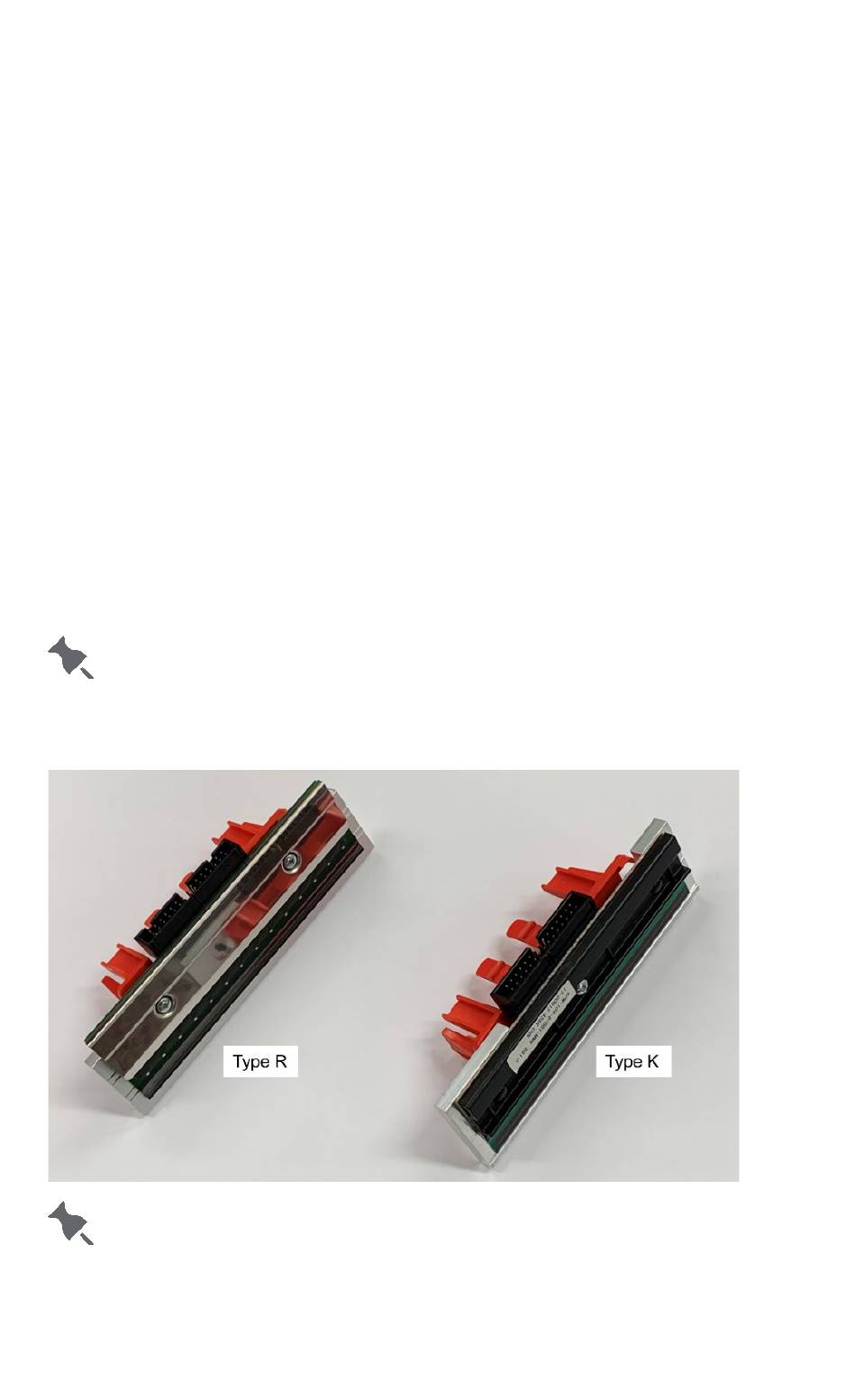

Compare your new printhead with this photo:

Type R has all metal construction and attaches

with two screws; Type K has black plastic

construction and attaches with one screw.

TC9820PHI Rev. AE 1/21

Table of Contents

Need help?

Do you have a question about the ADTP1 and is the answer not in the manual?

Page 1 I M P O R T A N T If your Avery Dennison® ADTP1/ADTP2 printer uses a 203dpi printhead, you must update the firmware and set the Printhead Type.
Page 2 S e t t i n g t h e P r i n t h e a d T y p e To set the Printhead Type: 1. From the Main Menu select TLABEL. 2. Press . You see Printhead Type. 3.
Page 3 Carefully unplug the cable from the printhead as shown. The printhead is sensitive to static electricity, which can damage the printhead or reduce its life. Ground yourself by touching some metal, such as the printer's metal base, before touching the printhead. Carefully plug the cable into the new printhead.
Page 4 Snap the printhead into place. Do not touch here Make sure the printhead cable does not touch the ribbon roll. 10. Clean the new printhead with a cotton swab dipped in isopropyl alcohol to remove any salt or oil left from handling.
