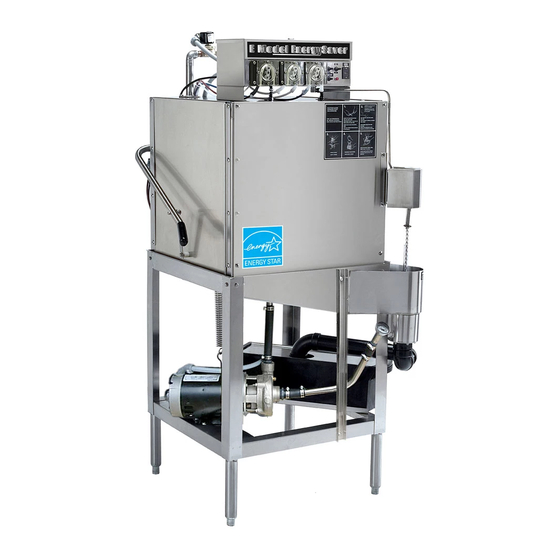

CMA Dishmachines E-AH Quick Setup Instructions

Models EAH, EC, EAH-T, EC-T
Quick Setup
Instructions
WARNING: Electrical and plumbing connections
need to be made by a licensed service person
and comply with all Federal, State and Local
Health, Electrical, Plumbing and Safety codes.

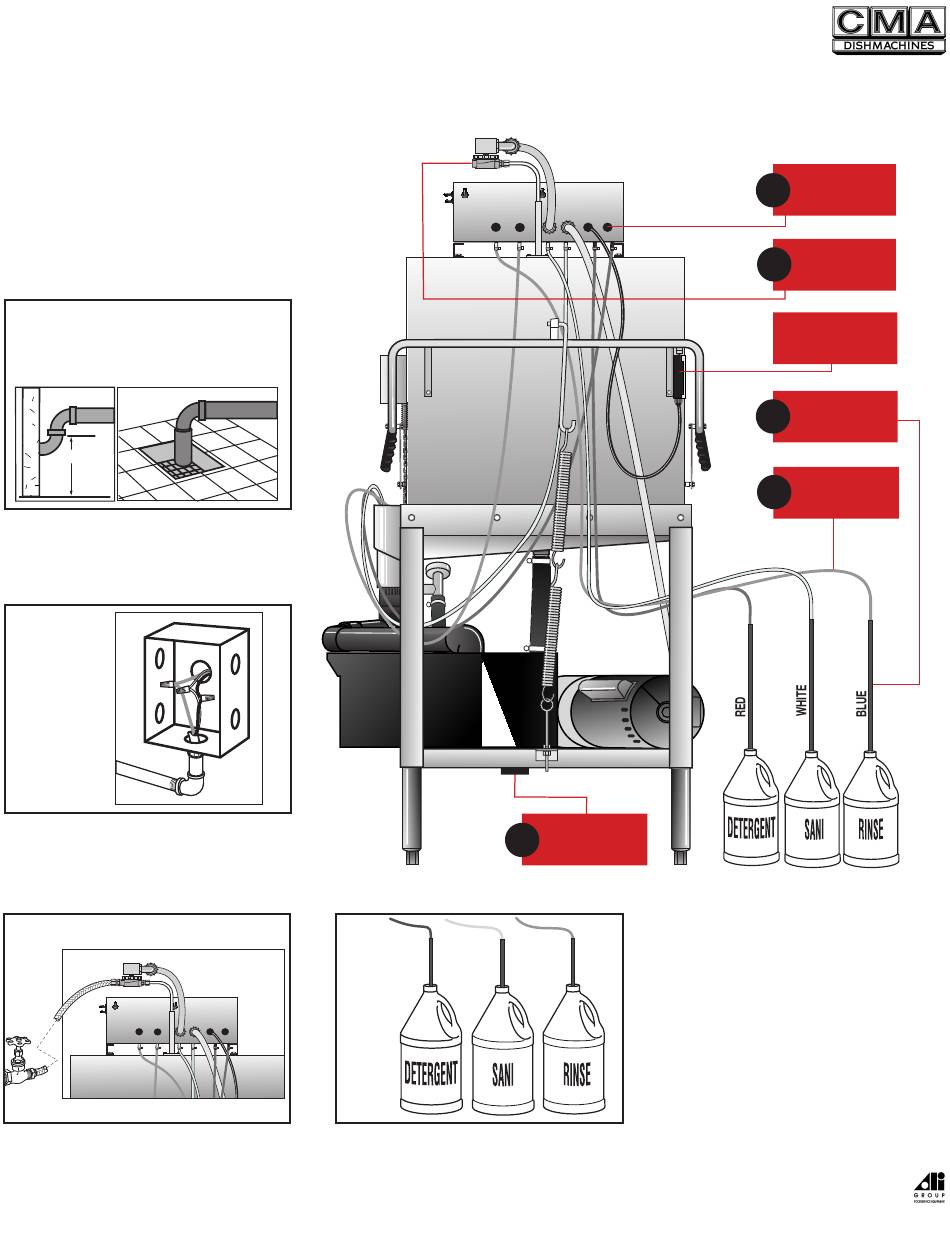

STEP
1
8"
WALL
DRAIN
Connect a 2" drain pipe (not supplied)
from scrap accumulator to floor or
wall drain.
STEP
2
Connect hard wire power supply from
dishmachine to power box.
STEP
3
Connect dishmachine to hot water source
(minimum 120°-140° temperature
required).
FLOOR DRAIN
STEP
4
Insert tube stiffener with chemical tubing
into each corresponding chemical
dispensers.
1 2" DRAIN
OUTLET
WHITE BLUE
RED
800-854-6417
HARD WIRE
2
POWER SUPPLY
3 1/2" WATER
INLET
AUTO START
SWITCH
TUBE
4
STIFFENER
4
CHEMICAL
TUBING
10-2007
