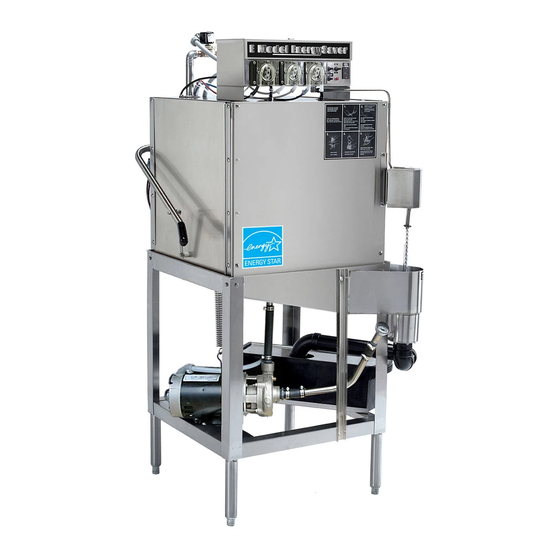

CMA Dishmachines EAH Quick Setup Instructions

Models EAH, EC, EAH-T, EC-T
Quick Setup
Instructions
WARNING: Electrical and plumbing connections
need to be made by a licensed service person
and comply with all Federal, State and Local
Health, Electrical, Plumbing and Safety codes.
STEP
1
8"
WALL
DRAIN
Connect a 2" drain pipe (not supplied)
from scrap accumulator to floor or
wall drain.
STEP
2
Connect dishmachine to hot water source
(minimum 120-140 temperature
required).
PN: 10130.23
FLOOR DRAIN
STEP
3
Insert tube stiffener with chemical tubing
into each corresponding chemical
dispensers.

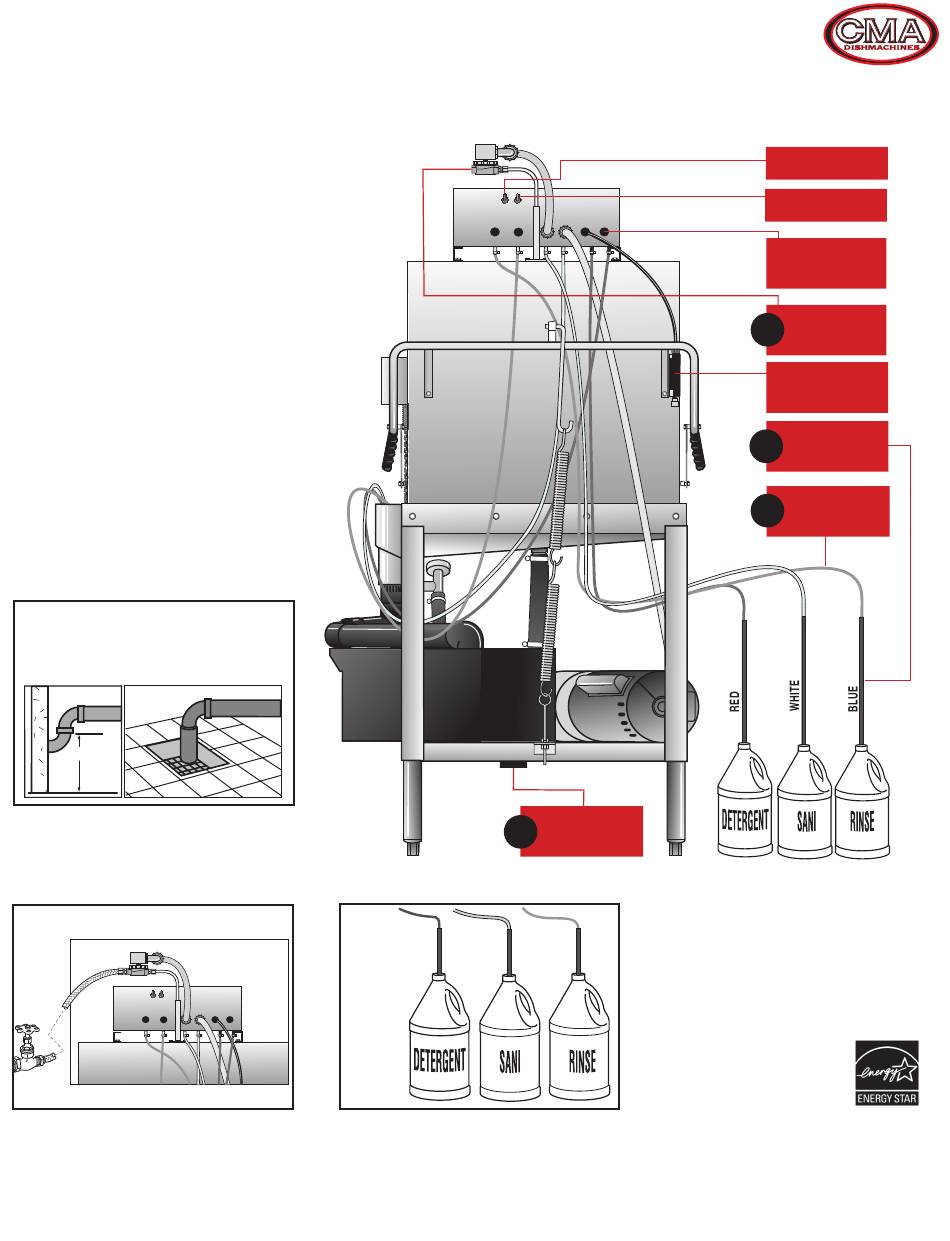

MODEL "E" REAR VIEW
2" DRAIN
1
OUTLET
WHITE BLUE
RED
POWER SWITCH
DELIMER SWITCH
HARD WIRE
POWER SUPPLY
2 1/2" WATER
INLET
AUTO START
SWITCH
TUBE
3
STIFFENER
3
CHEMICAL
TUBING
11-2016
