Uplift Desk ACU021-60x27.4x31 Instructions

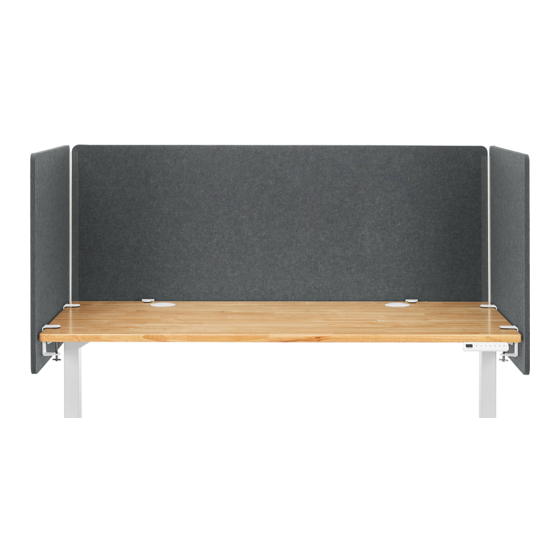

3-Sided Tall Acoustic Privacy Screen
ACU021-60x27.4x31, ACU021-72x27.4x31

Package Contents

Box 1
Back Panel
(qty 1. in 60'' or 72" width)
Please note, the Privacy Screen can be installed with one person but it will be considerably easier to install the Privacy
Screen with the help of a friend during the later steps.
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Box 2
Side Panel Corner Connector
(qty 2) (qty 2)
Clamp Bracket
(qty 6)
Step 1
Remove the material from the pre-cut holes in the Acoustic
Panels with your fingertip or pencil. There are four holes per
Panel, they're near the bottom of the panel at each end.
Step 2
Line up the pegs on the Support Bracket with a set of holes on a
Panel, and push them inside so the Support Bracket is flush with
the Panel. The long end of the Support Bracket should extend
towards the closest edge as shown in the first image. From the
other side, line the Clamp Bracket up with the holes. Insert the
Flathead Screws and tighten until snug. Do not over tighten.
Repeat this for the second set of holes on the Panel.
Repeat this step for all Panels, so that each panel has two Sup-
port Brackets and two Clamp Brackets attached.
Step 3
Loosen all Clamps so that the openings are wide enough to
slide onto your desktop. The included Mounting Hardware will
fit desktops between 0.75'' and 1.75'' thick.
Step 4
Note: If you have a desk that isn't an UPLIFT Desk or you have
a desktop that extends further than 2" from the desk frame side
bracket and you can't slide the Clamp Bracket around the desk
frame side bracket, you can proceed to step 5.
Starting with a Side Panel, slide the front Clamp Bracket around
and inside of the front end of the desk frame side bracket as
shown.
Next, slide the back Clamp Bracket around and inside of the
back end of the desk frame side bracket.
Box 3
Support Bracket Flathead Screws
(qty 6) (qty 12)
