Uplift Desk ACU069 Quick Start Manual

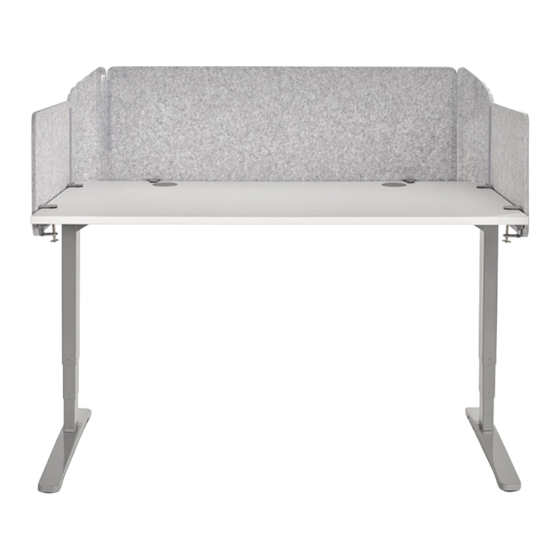

Corners for 3-Sided Acoustic Privacy Screen
ACU069

Package Contents

Corners
(qty 2, left & right)
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Long H-Channel Short H-Channel
(qty 2)
Acoustic Privacy Panel Mounting Hardware
(qty 2)

Step 1

Attach the rear Acoustic Privacy Panel per the
provided with the ACU062 mounting hardware.
long panel on the back of the desktop and secure in place with
the panel mounting hardware.
It is important that this panel is centered.

Step 2

Attach one side panel loosely, and slide towards the front of the
desk as far as it will go.

Step 3

Press the Long H-Channel connectors onto the side-edges of
the rear privacy panel ensuring they are centered between the
top and bottom of the panel.
Repeat the process for pressing the Short H-Channels onto the
side-edge of both side privacy panels.

Step 4

Prepare both the Corners by bending them inward at each
groove as shown to form the panels into a curved shape.
This process will make the Corners more pliable and help in the
next steps when they are attached to the back and side panels.
to be used in conjunction with
UPLIFT Acoustic Privacy Panels
(ACU062)
instructions
Center the
