Uplift Desk ACU011 Quick Manual

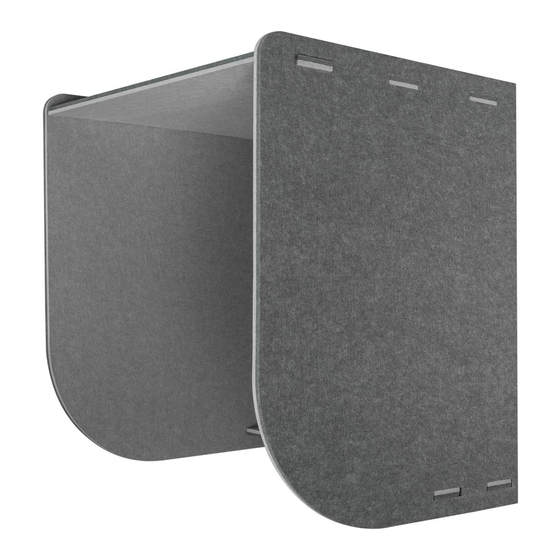

Acoustic Phone Booth
ACU011

Package Contents

Main panel
Other types of wall material may will require different hardware (not included).
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Top panel
A note before you begin:
The hardware included is for attaching the booth to wood or drywall.
Shelf panel Locking pins
(qty 4)

Step 1

Determine where you want the phone booth to be on your
wall.
Ensure there is enough room for the Main panel to unfold flat.
Make a mark on the wall where you want the center of your
phone booth to be installed. We recommend making a mark
about 78" up from the floor to accommodate users up to 6'
3" tall.

Step 2

Have a friend hold the unfolded Main panel up to the wall,
aligning it with the top edge at the mark you made. The panel
should be the aligned the correct way: the flat side should be
against the wall with the vertical notches facing outward, and
the edge with the large curved corners should be facing the
floor.
With your friend supporting the panel in place, use a level to
make sure the booth will be straight when installed. Then use a
pencil or a nail to make a mark on the wall through each of the
six holes of the Main panel.

Step 3

Remove the panel from the wall, and use a drill to make pilot
holes where your marks are.
For wood walls: Use a 1/8" drill bit to make pilot holes in each
of the six marked locations.
For drywall: Use a 1/8" drill bit to make pilot holes in each of
the six marked locations. Note: if you run into a wall stud when
drilling the pilot hole, do not use a Drywall anchor in that hole.
Use just a Screw and Washer instead.
Press the tip of one Drywall anchor into each pilot hole, and
using a Phillips-head screwdriver, screw the Anchors in until
they are flush with the surface of the wall. Be careful to not
overtighten the Drywall anchors
Drywall anchors Screws
(qty 6) (qty 6)
Washers
(qty 6)
