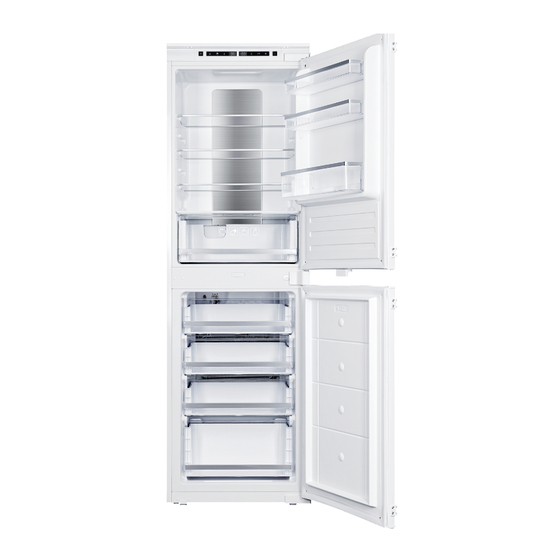

Integrated Fridge Freezer
MIFF5151F / 7131F - No Frost
Please r
Pleas
e read thes
ead these instructions c
e instructions car arefully bef
W W e r
e rec
ecommend that y
ommend that you k
THE PERFEC C T T B B A A L L ANCE OF FUN
THE PERFE
L L A A U U ND
NDR R Y - D
Y - DI I SH
SHW W A A SHI
Installation and Operating Instructions
Installation and Oper
efully befor ore att
e attempting t
ou keep thes
eep these instructions in a saf
e instructions in a safe plac
ANCE OF FUNC C T T I I ON AND STYLE
ON AND STYLE
SHIN N G - C
G - COO
OOK K I I NG -
NG - C C O O O O L L IN ING G
empting to install or us
o install or use this applianc
e this appliance e . .
e place f
e for futur
or future r
e ref efer erenc
ating Instructions
ence e . .
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MIFF5151F
Summary of Contents for montpellier MIFF5151F
- Page 1 NG - C C O O O O L L IN ING G Installation and Oper Installation and Operating Instructions ating Instructions Integrated Fridge Freezer MIFF5151F / 7131F - No Frost Pleas Please r e read thes ead these instructions c...
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
Contents: Important information Important safety and usage instructions Before first use General use of the fridge Crisper drawer humidity adjustment / Adapt Zone General use of the freezer Storage Control panel Defrosting the freezer / fridge Care and cleaning Troubleshooting Installation preparation Cabinet dimensions Ventilation requirements... -
Page 4: Important Information
Important Information The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that we reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had... - Page 5 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At the end of its working life, the product must not be disposed of as urban waste. The refrigeration system contains insulating gases and refrigerants, which require specialised waste disposal. The valuable materials contained in this appliance can be recycle.
- Page 6 Important Safety and Usage Instructions Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products.
-
Page 7: Before First Use
Before first use You must allow the fridge to settle for at least twenty four hours prior to switching the power on. It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. -
Page 8: General Use Of The Fridge
General use of the Fridge • Never put liquids in the refrigerator uncovered. • Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator. • Nothing should rest against the rear wall of the refrigerator. •... -
Page 9: Crisper Drawer Humidity Adjustment / Adapt Zone
Crisper drawer humidity adjustment The crisper drawer within this appliance features a humidity level adjustment slider. Vegetables and similar produce that are subject to wilting (e.g. rocket, spinach leaves, herbs such as basil etc.) should be kept in the crisper drawer and the adjustment slider kept closed (fully to the left - high). -
Page 10: General Use Of The Freezer
• The maximum amount of fresh food that can be frozen within a 24 hour period is 4.5 kg for the MIFF5151F and 3.0 kg for the MIFF7131F. • Do not attempt to freeze more than the maximum amount. -
Page 11: Storage
Drinks, e.g. milk Fruit and vegetables Cooked food Adapt Zone (-2° to 3°C) MIFF5151F MIFF7131F The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards. To replace, slide the shelf back into the slot, and then lower the rear section. -
Page 12: Control Panel
Note: On the MIFF5151F model, the Adapt zone temperature adjustment sensor is replaced with a padlock symbol. On the MIFF5151F, holding down button A for 3 seconds activates the lock function. A beep will be heard, the padlock illuminates and all functions cannot be altered. - Page 13 D. Fridge temperature adjustment This button is used to adjust the temperature within the fridge. Press this button once to activate adjustment, and then as many times as necessary until the desired level is selected Display This is where you can see the current temperature in the fridge (left) and freezer (right) E.
-
Page 14: Defrosting The Freezer / Fridge
Defrosting the freezer The freezer has a no frost system which is designed to prevent the heavy build up of ice. Under normal use, there should be no need to regularly defrost the freezer system. To help in times of service or cleaning, the appliance has a forced defrost mode which can be activated by touching and holding buttons A and C in Fig. -
Page 15: Care And Cleaning
Care and cleaning Always disconnect the appliance from the power supply before any cleaning or maintenance. The fridge and freezer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. After washing, rinse and dry thoroughly. Clean the shelves and balconies separately by hand with a mild solution of washing up liquid and water. -
Page 16: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling the Customer Care. If the appliance is not working, check: • That there is power to the appliance. • The house fuses are intact and the fuse in the plug has not blown. - Page 17 If excessive ice has formed in the freezer: • Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced or the appliance is incorrectly fitted and this can be due to the decor door(s) not being properly fitted.
-
Page 18: Installation Preparation
• Adequate ventilation should be provided in the base of the unit to aid airflow (Fig.5/6 (A))Recommended cut out of 300mm x 300mm. MIFF5151F Fig. 5... - Page 19 MIFF7131F Fig. 6 Important Please follow the instructions to install this unit. The diagrams show the ventilation requirements for your appliance. Failure to provide adequate ventilation can lead to increased running costs and premature failure and may invalidate The warranty provided with the appliance.
-
Page 20: Cabinet Dimensions
Cabinet Dimensions Fig. 7 Ventilation Hole Indicates required AirFlow... - Page 21 Ventilation The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the atmosphere. Incorrect ventilation can lead to premature compressor failure, excessive power consumption and total system failure. For products intended to be installed into a tall housing unit, the following requirements need to be met: A ventilation hole is required in the plinth of the unit (Fig.7),this...
-
Page 22: Installation Into The Cabinet
Installation into the cabinet With the help of another individual, or two, manoeuvre the appliance into the cabinet. There are two metal plates at the base of the appliance. Fit the supplied white spacers (Fig. 8) to these plates, as per Fig. 9. Fig. -
Page 23: Mounting The Fascia Doors
Mounting the Fascia Doors • Ensure that there is a gap of 3 to 4mm between the non-hinged side and the cabinet wall. • Locate the slider in the bracket and fix the slider to the fascia door 20 to 22mm from the edge of the fascia as shown in figure 11, ensuring that the slider is positioned centrally and horizontally within the bracket. - Page 24 Once complete, and if you are happy with the fit of the appliance in the cabinet, bend and snap the parts of the white spacers marked ‘S’ as shown by the dotted outline in fig. 14. Leave the rest of the spacer cover in place over the metal plates.
-
Page 25: Reversing The Appliance Doors
Reversing the Doors We recommend you seek the help of another individual to support the doors whilst performing this operation. Carefully prise off the cover cap for the top hinge and unscrew the screws fixing the top hinge to the appliance, you should support the upper door whilst doing this. -
Page 26: Electrical Information
Electrical Information Warning! This appliance must be earthed. Green and yellow to earth Brown to live 13A Fuse Cord Clamp Blue to Neutral Fig. 10 The mains lead of this appliance has been fitted with a BS 1363A 13Amp fused plug. To change a fuse in this type of plug, follow the steps below: 1. - Page 27 • The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with letter (E) or by the Earth symbol or coloured GREEN and YELLOW. • The wire which is coloured BLUE must be connected to the terminal which is marked with the letter (N) or coloured BLACK.
-
Page 28: Climate Range
Climate range The information about the climate range of the appliance is provided on the rating plate. It indicates at which ambient temperature (that is room temperature in which the appliance is working) is optimal for the operation of the appliance. Climate class Allowable ambient temperature This refrigeration appliance is intended for... -
Page 29: Practical Tips
Practical tips Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber. The coldest area is directly above the vegetable drawers. Use this area for all delicate and highly perishable food such as: •... - Page 30 Attribute Symbol Value Units MIFF5151F Model identification: Category of the household refrigerating appliance Voltage / Frequency 220 - 240V / 50Hz 54 X 55 X 177 Dimensions (W x D x H cm) Mass of the appliance 294.19 Annual energy consumption kWh/year The energy consumption is based on standard test results for 24 hours.
- Page 31 Attribute Symbol Value Units MIFF7131F Model identification: Category of the household refrigerating appliance Voltage / Frequency 220 - 240V / 50Hz 54 X 55 X 177 Dimensions (W x D x H cm) Mass of the appliance 288.35 Annual energy consumption kWh/year The energy consumption is based on standard test results for 24 hours.
- Page 32 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 33 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
