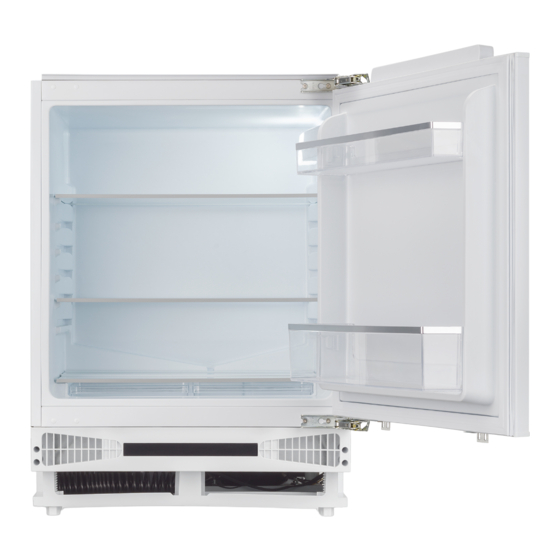

Built Under Larder Fridge
MBUL101
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MBUL101
Summary of Contents for montpellier MBUL101
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Built Under Larder Fridge MBUL101 Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
- Page 3 Contents Important information Important safety and usage instructions Before first use General use of the fridge Storage and use Controls Care and cleaning Defrosting the fridge Troubleshooting Installation and ventilation Mounting the fascia doors Reversing the fridge door Electrical information Changing the light bulb Climate range Practical tips...
- Page 4 Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model MBUL101 Serial Number EU Declarations of Conformity This appliance has been manufactured to the strictest standards...
- Page 5 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU. At the end of its working life, the product must not be disposed of as urban waste. The refrigeration system contains insulating gases and refrigerants, which require specialised waste disposal. The valuable materials contained in this appliance can be recycled.
- Page 6 Important Safety and Usage Instructions Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products.
-
Page 7: Before First Use
Before first use You must allow the fridge to settle for at least twenty four hours prior to switching the power on. It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. - Page 8 General use of the fridge Fridge • Never put liquids in the refrigerator uncovered • Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator • Nothing should rest against the rear wall of the refrigerator as this is a wet wall appliance which during normal usage will form droplets of ice on the rear wall(ref to image on Page13)and cause items to freeze to the back wall.
-
Page 9: Storage And Use
Storage and use The fridge is for short term food storage. Although the temperature can be maintained between 0-10˚C, extended periods of food storage is not recommended. As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type. - Page 10 Controls Power Adjust Fig. 2 Temperature control The temperature controls for this fridge are simple and easy to use. To change the temperature simply press the adjust button on the right hand side of the unit to cycle through settings 1 to 5. The warmest setting being 1 and the coldest being 5.
-
Page 11: Care And Cleaning
Care and cleaning Cleaning Rod Always disconnect the appliance from the power supply before any cleaning or maintenance. Drain Hole Water Outlet The fridge and crisper sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. -
Page 12: Defrosting The Fridge
Defrosting the fridge The fridge is self-defrosting. Any water created will run out of the fridge through the channel at the back of the fridge. It is important to keep the channel clear at all times using the cleaning tool supplied. The defrosted water is collected in the evaporating tray at the back of the appliance and dissipated by evaporation. -
Page 13: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting guide prior to calling the Customer Care to prevent unnecessary service calls and potential cost. Contact details are on the back cover of this manual If the appliance is not working, check the following: •... - Page 14 If there is water in the lower part of the refrigerator compartment: • Check the drain hole in the channel at the back of the refrigerator is clear. If this is blocked refer back to Care and Cleaning (page10) • Make sure no food or items are touching the back wall of the fridge as this may cause items to freeze to the back wall and during the automatic de-frost function water may run on to the shelves as well as in to the lower part of the fridge.
-
Page 15: Installation And Ventilation
Installation and ventilation This appliance must never be installed close to heat sources, e.g. heating elements, cookers or in damp places. • To ensure the appliance is level, you should use the height adjustable feet at the front and rear of the appliance •... -
Page 16: Mounting The Fascia Doors
Mounting the fascia doors Fig. 6 - Fitting the decor door bracket Remove the white decorative cover (Fig. 5) by lifting it upwards. Obtain the below measurements: Dimension B = Measure from the underside surface of kitchen unit to the bottom of fixing bracket. - Page 17 Fig. 9 - Aligning the decor door Close the door and check the alignment with the other unit doors. Adjust the decor door by screwing or unscrewing the adjustment bolts (3) for vertical adjustment and by the help of the slots on the fixing bracket for other directions.
- Page 18 Reversing the fridge door We recommend you seek the help of another individual to support the doors whilst performing this operation. 1. Open the door 2. Carefully prise off the white cover caps for the side that you wish to switch the hinges to 3.
- Page 19 Ensuring the door seals correctly: It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal.
-
Page 20: Electrical Information
Electrical information Warning! This appliance must be earthed. Green and yellow to earth Brown to live 13A Fuse Cord Clamp Blue to Neutral Fig. 11 The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a fuse in this type of plug, follow the steps below: 1. - Page 21 As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- • The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with letter (E) or by the Earth symbol or coloured GREEN and YELLOW...
-
Page 22: Changing The Light Bulb
Changing the light bulb If the LED lighting fails in any way, it should only be replaced by an authorised service agents. In the event of light failure within your fridge please contact the Customer Care to arrange a service visit. Climate range The information about the climate range of the appliance is provided on the rating plate. -
Page 23: Practical Tips
Practical tips Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber. The coldest area is directly above the vegetable drawers. Use this area for all delicate and highly perishable food such as: Fish, meat, poultry •... - Page 24 Attribute Symbol Value Units MBUL101 Model identification: Category of the household refrigerating appliance Voltage / Frequency 220 - 240V / 50Hz x 55 x 81.8-87 59.6 Dimensions (W x D x H cm) Mass of the appliance 116.07 Annual energy consumption kWh/year The energy consumption is based on standard test results for 24 hours.
- Page 25 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 26 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
