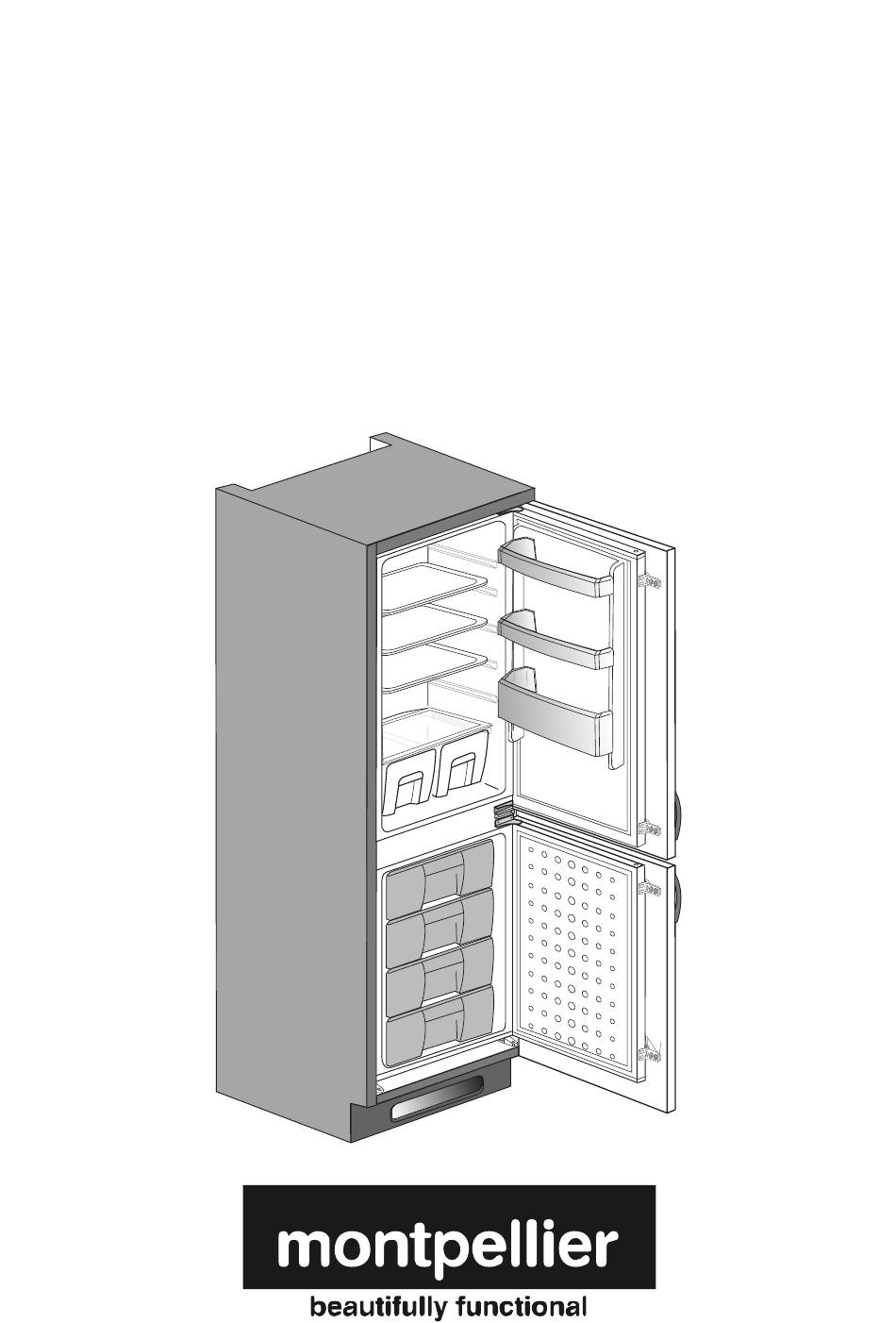

- Page 1 Built in Frost Free Fridge Freezer MIFF5050F Installation & Operating Instructions...
- Page 3 Congratulations on your choice of a MONTPELLIER quality Appliance which has been designed to give you service for many years. WARNING ! IMPORTANT ! DO NOT connect your appliance to the electricity supply until all packing and transit protectors have been removed.
-
Page 4: Table Of Contents
CONTENTS PAGE SAFETY FIRST / ELECTRICAL REQUIREMENTS TRANSPORTATION INSTRUCTIONS INSTALLATION INSTRUCTIONS - GUIDELINES GETTING TO KNOW YOUR FRIDGE / FREEZER SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE / FREEZER TEMPERATURE CONTROL AND ADJUSTMENT STARTING STORING FROZEN FOOD FREEZING FRESH FOOD MAKING ICE CUBES DEFROSTING CLEANING AND CARE... -
Page 5: Safety First / Electrical Requirements
Should the mains lead of the appliance become damaged or should it need replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained from a MONTPELLIER Authorised Service Agent. WARNING: Do not locate extension sockets or charging transformers/power supplies or Lithium-Iron battery operated products adjacent to the compressor as they could overheat. -
Page 6: Transportation Instructions
Do not allow children to play with the appliance or tamper with the controls. MONTPELLIER plc declines to accept any liability should the instructions not be followed. • This appliance is not intended for use by persons (including children) with... -
Page 7: Installation Instructions - Guidelines
IMPORTANT INSTALLATION INSTRUCTIONS 1. The space in the room where the appliance is installed must not be smaller than 10 cubic metres. 2. See pages 16 to 24 for detailed Installation Instructions including reversing door opening direction. This appliance has been designed to operate in ambient temperatures up to 32 degrees C (90 degrees F) and is equipped with Advanced Electronic Temperature Control System [AETCS] which ensures that at the advised setting [4 - four on the knob] the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. -
Page 8: Getting To Know Your Fridge / Freezer
GETTING TO KNOW YOUR COMBI FROST FREE FRIDGE / FREEZER DOOR SHELF TEMPERATURE SETTING EGG TRAY KNOB INTERIOR LIGHT CABINET SHELVES DEFROSTED WATER BOTTLE COLLECTION CHANNEL SHELF SALAD CRISPER FAST FREEZE COMPARTMENT FROZEN FOOD COMPARTMENTS... -
Page 9: Suggested Arrangement Of Food In The Fridge/Freezer
SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE/FREEZER Arrangement Examples (See diagram) 1. Baked, chilled cooked food, dairy products, cans. 2. Meat, sausages, cold cuts. 3. Fruit, vegetables, salads. 4. Frozen food and freezing of fresh food. 5. Frozen food. 6. Butter, cheese. 7. -
Page 10: Temperature Control And Adjustment
TEMPERATURE CONTROL AND ADJUSTMENT Operating temperatures are controlled by the setting knob (see diagram) located on the ceiling of fridge compartment. Settings may be made from min, 1 ... 6, max, max being the coldest position. When the appliance is switched on for the rst time, the setting knob should be adjusted so that after 24 hours, the average fridge temperature is no higher than +5°C (+41°F). -
Page 11: Starting
STARTING Final Check Before you start using the fridge/freezer check that: 1. The interior is dry and air can circulate freely at the rear of the cabinet. 2. Clean the interior as recommended under "CLEANING AND CARE." 3. Insert the plug into the wall socket and switch on the electricity supply. •... -
Page 12: Making Ice Cubes
MAKING ICE CUBES Fill the ice - cube tray 3/4 full with water. Loosen frozen trays with the handle of a spoon, never use sharp edged objects such as knives, forks. Note: If freshly made ice cubes are not consumed for several weeks, they will slowly reduce in size and eventually disappear completely. -
Page 13: Defrosting
DEFROSTING A) FRIDGE COMPARTMENT The fridge compartment defrosts automatically. The defrosting water runs Defrosted Water to the drain tube via a collection Drain Tube Collection container at the back of the appliance (1). (see diagram) During defrosting water droplets may form at the back of the fridge compartment where concealed evaporator is located. -
Page 14: Cleaning And Care
CLEANING AND CARE ** We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning. ** Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. ** Use luke warm water to clean the cabinet of the appliance and wipe it dry. -
Page 15: Replacing The Interior Light Bulb
REPLACING THE INTERIOR LIGHT BULB (See diagram) Should the light fail to work, proceed as follows. 1. Switch off at the socket outlet and pull out the mains plug. • You may nd it useful to remove shelves for easy access. 2. -
Page 16: Do's And Don'ts
DO'S AND DON'TS Clean and defrost your appliance regularly (See "Defrosting") Keep raw meat and poultry below cooked food and dairy products. Do- Take off any unusable leaves on vegetables and wipe off any soil. Leave lettuce, cabbage, parsley and cauli ower on the stem. Do- Wrap cheese rstly in greaseproof paper and then in a polythene bag excluding as much air as possible. -
Page 17: Energy Saving Tips
ENERGY SAVING TIPS 1- Ensure your appliance is installed in a well ventilated area. If the ambient temperature is low (but in no case lower than 5 degrees C), then the energy saving will be more. In this case, check temperatures of fridge and freezer compartments with an accurate thermometer and lower the thermostat setting (towards 1) if necessary. -
Page 18: Installation Instructions - Detailed Step By Step
INSTALLATION INSTRUCTIONS (All dimensions are in mm) 45 ° 45 ° FRONT FEET... - Page 19 45 ° REAR FEET...
- Page 20 min. 200 cm min. 75mm min. 200 cm The backwall of the wooden cabinet must be left open completely to kitchen wall in order to allow sufficient air circulation to cool down the condenser unit for energy efficiency.
- Page 21 min.75mm 200 cm 2 200 cm 2...
- Page 24 2 mm 2 mm 2 mm Ensure 2 mm gaps are obtained, adjust if necessary.
-
Page 25: Reversing The Doors
REVERSING THE DOORS... - Page 26 REVERSING THE DOORS Top Door 1. Unscrew the 4 screws securing the door to the top and middle hinges. 2. Carefully remove the door. 3. Remove plastic plugs 10 &11. 4. Unscrew top hinge 4 and re t as middle hinge on the left hand side 14. 5.
-
Page 27: Guarantee Details
• The cost of functional replacement parts, but excluding consumable items. • The labour costs of a MONTPELLIER approved repairer to carry out the repair. What is not covered? • Transit, delivery or accidental damage or misuse and abuse. - Page 29 WARNING! * DO NOT USE ANY COPPER POT, DISH INSIDE THE CABINET! * DO NOT LOAD ANY FOOD WITHOUT PACKAGE! Part no: 48 9173 00 00/AK...
