Integrated 50/50 Fridge Freezer
MIFF5051F - Frost Free
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MIFF5051F
Summary of Contents for montpellier MIFF5051F
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Integrated 50/50 Fridge Freezer MIFF5051F - Frost Free Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Integrated Fridge Freezer. Our refrigeration products have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Fridge Freezer to ensure you get the most from your purchase.
- Page 3 • Children should be supervised to ensure that they do not play with the appliance. Built in Frost Free Fridge Freezer MIFF5051F PERFORMANCE Energy ef Energy consumption - Kwh/year Net storage - vol fresh food ltrs (cu.ft.) 163 (5.8)
-
Page 4: Table Of Contents
CONTENTS PAGE SAFETY FIRST / ELECTRICAL REQUIREMENTS TRANSPORTATION INSTRUCTIONS IMPORTANT INSTALLATION INSTRUCTIONS GETTING TO KNOW YOUR FRIDGE / FREEZER SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE / FREEZER TEMPERATURE CONTROL AND ADJUSTMENT STARTING STORING FROZEN FOOD FREEZING FRESH FOOD MAKING ICE CUBES DEFROSTING CLEANING AND CARE REPLACING THE INTERIOR LIGHT BULB... -
Page 5: Safety First / Electrical Requirements
Should the mains lead of the appliance become damaged or should it need replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained from a MONTPELLIER Authorised Service Agent. WARNING: Do not locate extension sockets or charging transformers/power supplies or Lithium-Iron battery operated products adjacent to the compressor as they could overheat. -
Page 6: Transportation Instructions
/ moving the appliance, to avoid the mains cable becoming cut or damaged." Do not allow children to play with the appliance or tamper with the controls. MONTPELLIER declines to accept any liability should the instructions not be followed. -
Page 7: Important Installation Instructions

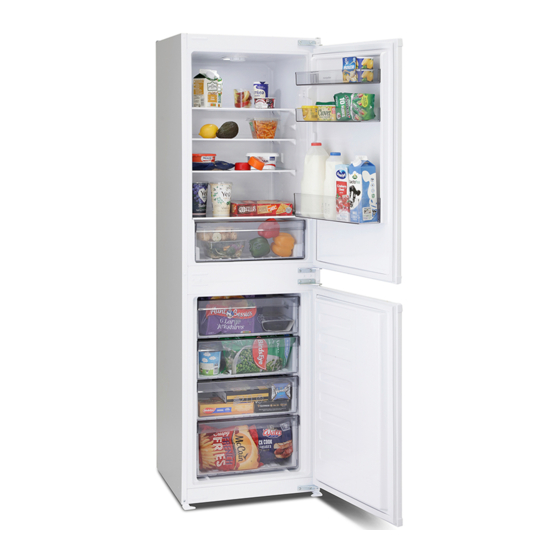

IMPORTANT INSTALLATION INSTRUCTIONS 1. The space in the room where the appliance is installed must not be smaller than 10 cubic metres. 2. See pages 13 to 21 for detailed Installation Instructions including reversing door opening direction. 3. This appliance has been designed to operate in ambient temperatures up to 38 degrees C (100 degrees F) and is equipped with Freezer Guard technology which ensures that even if the ambient temperature falls to -15 °C, frozen food in the freezer does not thaw thanks to this. - Page 8 GETTING TO KNOW YOUR COMBI FROST FREE FRIDGE/FREEZER DOOR SHELF TEMPERATURE SETTING KNOB EGG TR AY INTERIOR LIGHT & AUDIBLE ALARM DOOR SHELF CABINET SHELVES DEFROST WATER COLLECTION CHANNEL BOTTLE SHELF SALAD CRISPER FREEZER FAN FAST FREEZE COMPARTMENT FROZEN FOOD STORAGE DRAWERS Figures in this user manual are schematic and may not match the product exactly.
-
Page 9: Suggested Arrangement Of Food In The Fridge/Freezer
SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE/FREEZER Arrangement Examples (See diagram) 1. Baked, chilled cooked food, dairy products, cans. 2. Meat, sausages, cold cuts. Fruit, vegetables, salads. Frozen food and freezing of fresh food. 5. Frozen food. 6. Butter, cheese. 7. -
Page 10: Temperature Control And Adjustment
TEMPERATURE CONTROL AND ADJUSTMENT Operating temperatures are controlled by the thermostat knob (see diagram) located on the ceiling of fridge compartment. Settings may be made from 1 to 5, 5 being the coldest position. When the appliance is switched on for the first time, the thermostat should be adjusted so that after 24 hours, the average fridge temperature is no higher than +5°C (+41°F). -
Page 11: Starting
STARTING Final Check Before you start using the fridge/freezer check that: 1. The interior is dry and air can circulate freely at the rear of the cabinet. 2. Clean the interior as recommended under "CLEANING AND CARE." 3. Insert the plug into the wall socket and switch on the electricity supply. •... -
Page 12: Freezing Fresh Food
FREEZING FRESH FOOD Please observe the following instructions to obtain the best results. Do not freeze too large a quantity at any one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible. Do not exceed the freezing capacity of your appliance in 24 h which is 3.5 kg (7.9 lb) Placing warm food into the freezer compartment causes the refrigeration compressor to operate continuously until the food is frozen solid. -
Page 13: Defrosting
DEFROSTING A) FRIDGE COMPARTMENT The fridge compartment defrosts Defrosted automatically. The defrosting water runs Water to the drain tube via a collection Drain Tube Collection container at the back of the appliance (1). (see diagram) During defrosting water droplets may form at the back of the fridge compartment where concealed evaporator is located. -
Page 14: Cleaning And Care
CLEANING AND CARE ** We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning. ** Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. ** Use luke warm water to clean the cabinet of the appliance and wipe it dry. -
Page 15: Do's And Don'ts
DO'S AND DON'TS Clean and defrost your appliance regularly (See "Defrosting") Keep raw meat and poultry below cooked food and dairy products. Do- Take off any unusable leaves on vegetables and wipe off any soil. Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag excluding as much air as possible. -
Page 16: Installation Instructions Detailed Step By Step
INSTALLATION INSTRUCTIONS DETAILED STEP BY STEP No wooden back wall Adjusting the legs (*optional) If your refrigerator is unbalanced: You can balance your refrigerator by turning the legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. - Page 18 Torx Wood Plastic Sheet Wood (PS) (1TW) * Spares included view 42 mm ≤ 17 Note: Installation step for 2, screws for connecting top plastic part should not be screwed very hard, because of moving the plastic part easily left or right side.
- Page 20 4 2 . (1TW) 4 2 ,...
- Page 21 (1TW) 4 2 , (1TW) 2.0 mm...
- Page 22 21 mm 2 mm 2 mm 2 mm...
-
Page 23: Reversing The Doors
REVERSING THE DOORS Proceed in numerical order. - Page 24 Top Door 1.Unscrew top hinge (1). 2.Carefully remove the top door (2). 3.Unscrew lower hinge (3). 4.Remove plastic plugs (7 & 8 ). 5.Refit top hinge (1) as lower hinge (17) on the left hand side. 6.Replace top door (18). 7.Refit lower hinge (3) as top hinge (19) on the left hand side.
-
Page 25: Installation Of High Levelling Foot
INSTALLATION OF HIGH LEVELLING FOOT (All dimensions are in mm) 45 ° 8 mm 45 ° 59 mm FRONT FEET... - Page 26 45 ° REAR FEET...
- Page 28 Your 5 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 60 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 60 months prior to the date of claim.
- Page 29 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
