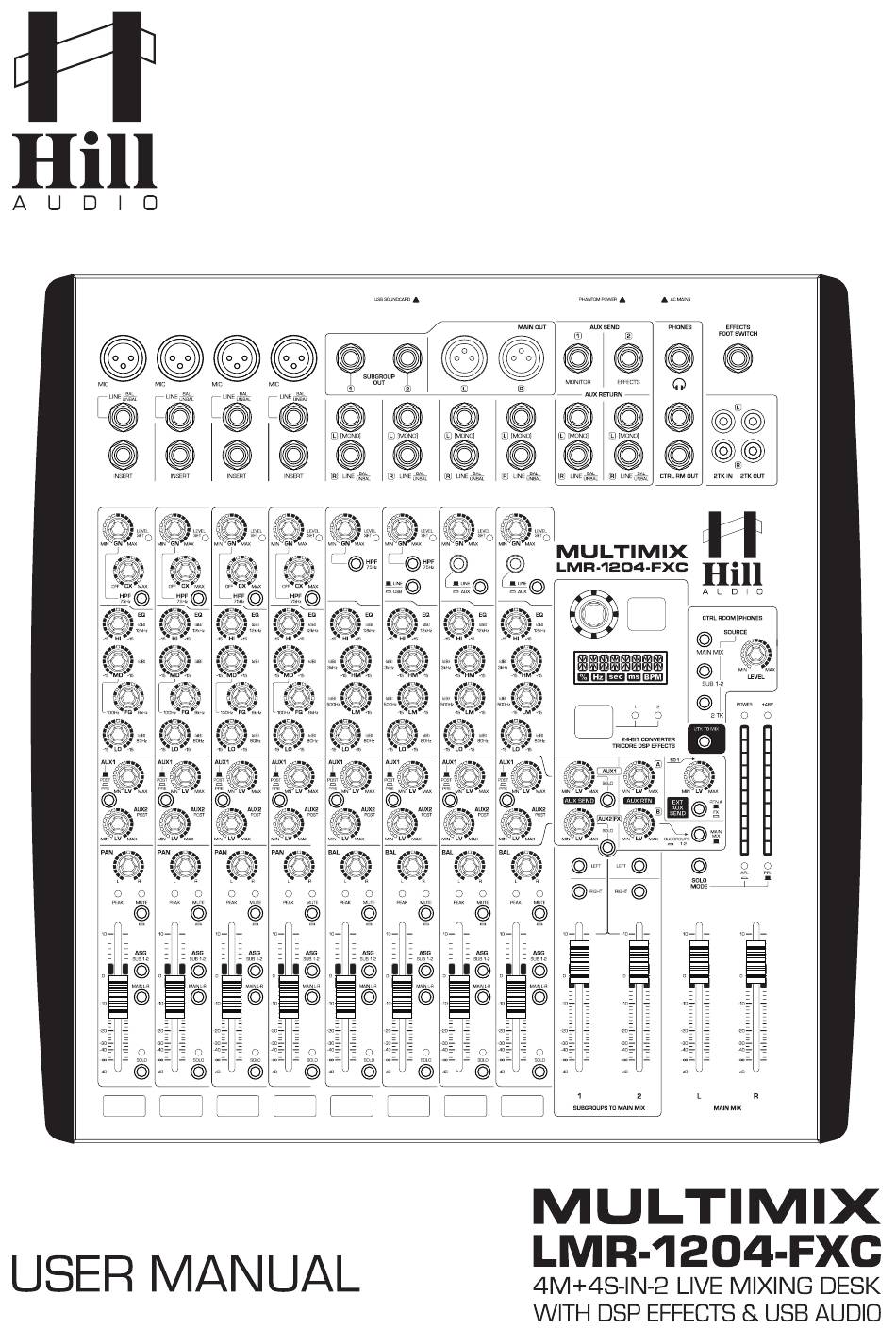

- Page 1 PARAM RevA 08-2015...
-
Page 2: Important Safety Instructions
USER MANUAL - LMR1204FX-C-(U) Rackmixer Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English. -
Page 3: Health Advice
USER MANUAL - LMR1204FX-C-(U) Rackmixer Description The LMR1204FX-C-(U) is a versatile audio mixer for stage sound and recording purposes, which is fitted with 4 studio-grade mono mic/line inputs, 4 stereo inputs and 2 subgroups for a well- structured mixdown. All channels sport a full feature set with gain controls, EQs and 2 AUX busses. The mono channels are further equipped with a one-knob compressors and semi-parametric mid- band EQs. - Page 4 USER MANUAL - LMR1204FX-C-(U) Rackmixer Controls and Connections PARAM Connections Rear PAGE 3...
-
Page 5: Functional Description
USER MANUAL - LMR1204FX-C-(U) Rackmixer Functional Description The LMR1204FX-C-(U) is a live sound/recording console with 4 mono and 4 stereo inputs. Each input features gain control, EQ, 2 AUX busses and a stereo pan/balance control. The mono inputs further sport a semi-parametric midband for their EQs and a one-knob compressor. Input channels can be routed to any of the 2 subgroups or directly to the master. - Page 6 USER MANUAL - LMR1204FX-C-(U) Rackmixer Mid EQ frequency control. Sets the center frequency of the semi-parametric mid frequency equalizer between 100Hz and 8kHz. Lo EQ level control. This is a shelving filter with a corner frequency of 80Hz, thus allowing to boost or attenuate all frequencies below this point by -15dB to +15dB.
-
Page 7: Stereo Input Channels
USER MANUAL - LMR1204FX-C-(U) Rackmixer Stereo Input Channels Most controls and functions of the stereo channels are identi- cal to the mono channels, with the exception of no compres- sors provided and other differences outlined below. For any not listed item, refer to the mono channel section. Gain control. -
Page 8: Master Section
USER MANUAL - LMR1204FX-C-(U) Rackmixer Master Section TOP PANEL CONNECTIONS EFFECTS CONTROL ROOM PARAM MASTER AUX SECTION SUBGROUPS PAGE 7... - Page 9 USER MANUAL - LMR1204FX-C-(U) Rackmixer AUX SEND (1-2). These controls determine the overall output level of the AUX bus, with ratios of the different channel contributions set by the channel AUX controls (12&14). The AUX bus signal is then sent to either the external AUX SEND connectors (for AUX1) on the top panel (section I) or to both the external AUX SEND connector on the top panel (section I) and the internal effects processor (AUX 2).
- Page 10 USER MANUAL - LMR1204FX-C-(U) Rackmixer EFFECTS DATA DIAL. Turning this infinite control scrolls through the list of available effect algo- rithms (see list below), and the currently pre-selected algorithm’s name will flash in the display unless it is either confirmed by pressing the dial or dismissed if no further action is taken. The DATA DIAL also serves to adjust a parameter of the effect if the EFFECTS PARAMETER button (35) is pressed first and a parameter is chosen by consecutively pressing the EFFECTS PARAMETER button (indicated by 37) for editing.
- Page 11 USER MANUAL - LMR1204FX-C-(U) Rackmixer AUX RETURN. Two AUX Return inputs are provided for connecting any sort of mono or stereo line level signal. The level of these inputs is adjusted by the respective RETURN controls (29). Insert a mono source into the L jack of any pair to make sure the signal is fed into both L and R main mix.
- Page 12 USER MANUAL - LMR1204FX-C-(U) Rackmixer Effect Algorithms / Parameters Preset Name Variable Parameter Tap Control Description CHORUS Depth, Speed Wav Shape Tri/Sine Chorus ensemble effect with short delays Classic stereo flanger with a slow sweep FLANGER Depth, Res Oscillation Speed PHASER Depth, Res Oscillation Speed...
-
Page 13: Operation
USER MANUAL - LMR1204FX-C-(U) Rackmixer Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact your dealer immediately. - Page 14 USER MANUAL - LMR1204FX-C-(U) Rackmixer Connections This product uses the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper opera- tion. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.
-
Page 15: Technical Specifications
USER MANUAL - LMR1204FX-C-(U) Rackmixer Technical Specifications Preamp Noise (EIN) ....-114dB ........0.007% 20 Hz to 20 kHz, (150Ω source) Mic In to Main Out, 20Hz to 20kHz Residual Output Noise ....-95dB AC IN ......AC110-250V~ 50-60Hz All level controls @ minimum (EU version) Crosstalk ......-70dB... -
Page 16: Ec Declaration Of Conformity
Burnham-on-Crouch, 10.09.2015 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...
