Summary of Contents for Hill Audio PSM-4530

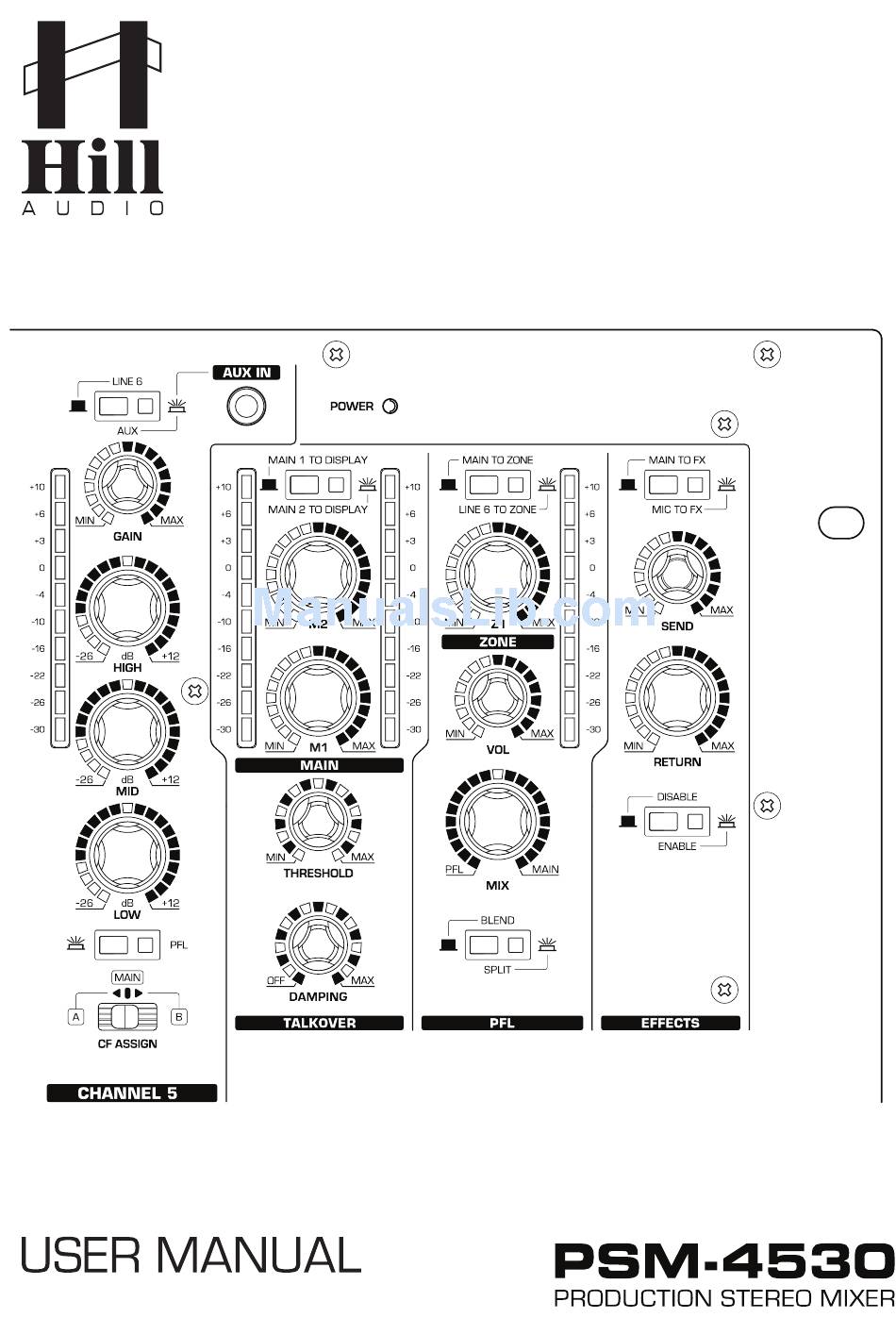

- Page 1 RevA 06-2013...
-
Page 2: Important Safety Instructions
USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. -
Page 3: Health Advice
USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Description The PSM4530 Stereo Production Mixer is a 5+3 channel stereo mixing console with extensive features. It offers one-knob compressors and an effects path for the microphone inputs, and aside of two stereo master outputs also sports a zone output with independent signal source and a subwoofer output with in-built active crossover. -
Page 4: Controls And Connections
USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Controls and Connections Connections - Rear Controls - Front 29 28 38 36 37 PAGE 3... -
Page 5: Functional Description
USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Functional Description The PSM4530 is a stereo production mixer with one of the most extensive feature sets in the market. Offering 3 microphone inputs and 5 stereo inputs, it is a predestined choice for mobile event sound systems as well as as multi-purpose venues and installed club sound systems. - Page 6 USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Effect Path Send/Return connectors. Depending on the setting of controls (24), (42) and (44), a signal either consiting of the microphone effects path (determined by controls [24]) or the MAIN bus signal is available at the SEND connector at a level set by effects send level control (42).
- Page 7 USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Level control for microphone inputs. 60mm high-grade dual-rail faders to set the volume for each microphone channel. Input Selector switch for Stereo input channels. Selects one of two rear-panel sources to be used with the respective input channel. Input Gain control for Stereo Input channels.
- Page 8 USER MANUAL - PSM4530 STEREO PRODUCTION MIXER EFFECT SEND control. Determines the signal level present at the SEND jack (13) to be sent to an outside effects processor. The signal itself depends on the settings of switches (44) and (24). EFFECT RETURN control.
-
Page 9: Operation
USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately. - Page 10 USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Connections The PSM series mixers use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.
-
Page 11: Technical Specifications
USER MANUAL - PSM4530 STEREO PRODUCTION MIXER Technical Specifications Block Diagram 6.3mm TRS X/O FREQUENCY FOH L SUBWOOFER OUTPUT 4 TS LEVEL 5 RS 30 Hz 200 Hz 6.3mm TRS FOH R 4 TS CH1 GAIN 5 RS MASTER 1 OUTPUT LEVEL METER CH1 EQ LINE1 / FOH... -
Page 12: Ec Declaration Of Conformity
ROHS Directive 2002/95/EC and is marked as follows: Shoeburyness, 10. May 2013 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Vanguard Way, Shoeburyness, Essex SS3 9QY, UK www.adelto.com | sales@adelto.com...
