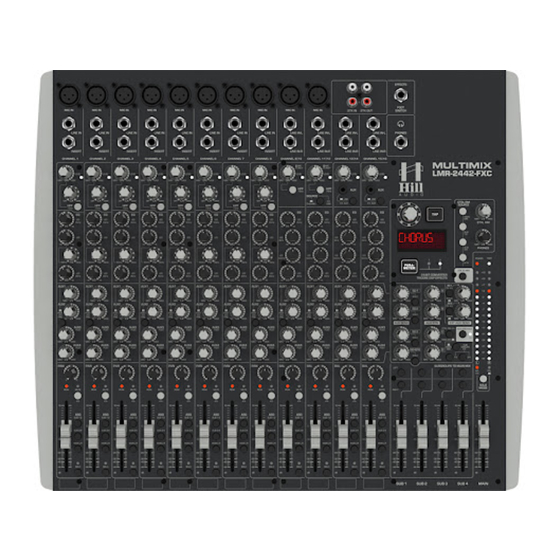

Hill Audio Multimix LMR-2442-FXC User Manual

Usb 12 channel stage rackmixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TAP
PARAM
RevA 08-2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multimix LMR-2442-FXC and is the answer not in the manual?

Questions and answers

Related Manuals for Hill Audio Multimix LMR-2442-FXC

Summary of Contents for Hill Audio Multimix LMR-2442-FXC

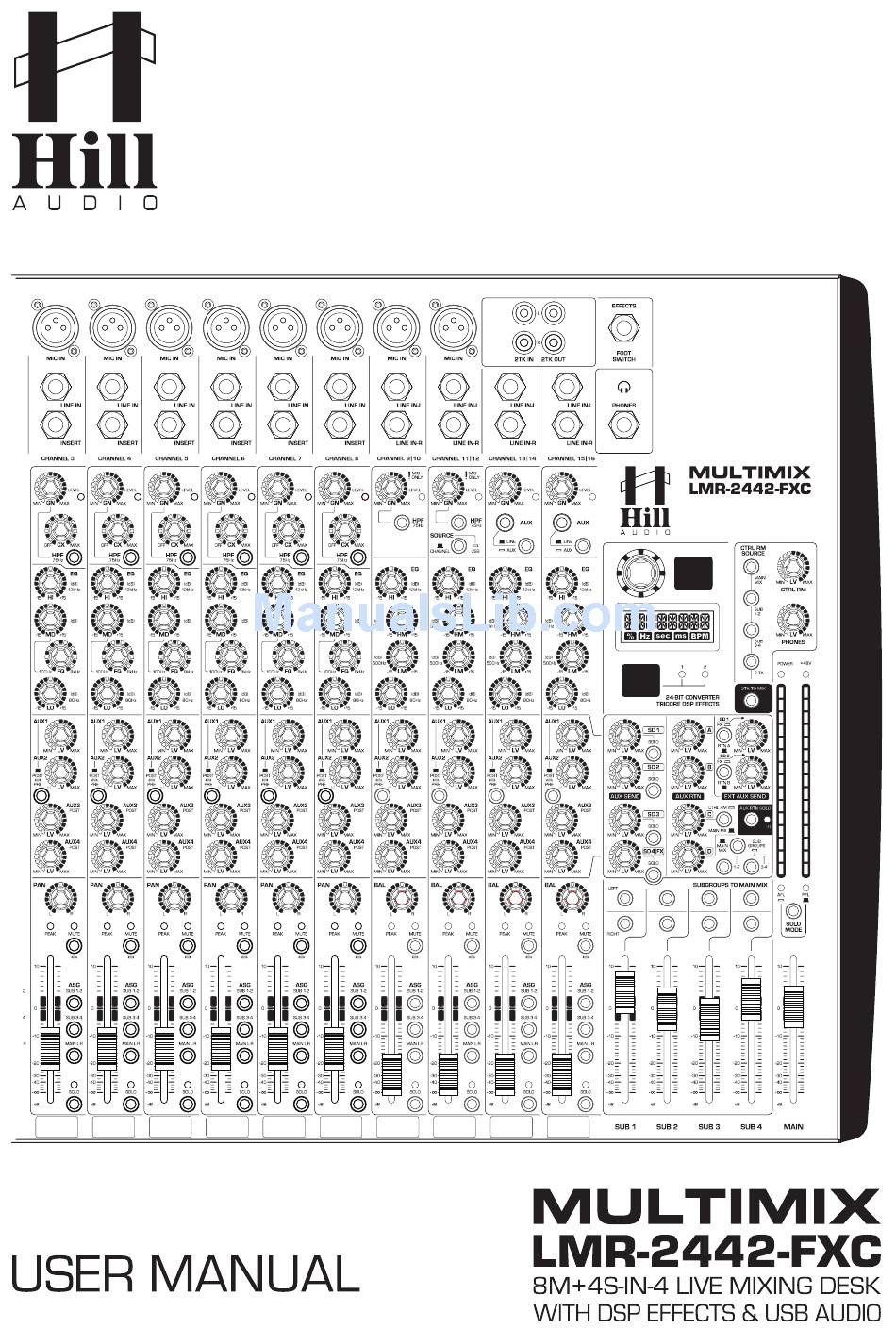

  • Page 1 PARAM RevA 08-2015...

  • Page 2: Important Safety Instructions

    USER MANUAL - LMR2442FX-C-(U) Rackmixer Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English.

  • Page 3: Health Advice

    USER MANUAL - LMR2442FX-C-(U) Rackmixer Description The LMR2442FX-C-(U) is a versatile audio mixer for stage sound and recording purposes, which is fitted with 8 studio-grade mono mic/line inputs, 4 stereo inputs and 4 subgroups for a well- structured mixdown. All channels sport a full feature set with gain controls, EQs and 4 AUX busses. The mono channels are further equipped with a one-knob compressors and semi-parametric mid- band EQs.

  • Page 4: Controls And Connections

    USER MANUAL - LMR2442FX-C-(U) Rackmixer Controls and Connections PARAM Connections Rear PAGE 3...

  • Page 5: Functional Description

    USER MANUAL - LMR2442FX-C-(U) Rackmixer Functional Description The LMR2442FX-C-(U) is a live sound/recording console with 8 mono and 4 stereo inputs. Each input features gain control, EQ, 4 AUX busses and a stereo pan/balance control. The mono inputs further sport a semi-parametric midband for their EQs and a one-knob compressor. Input channels can be routed to any of the 4 subgroups or directly to the master.
  • Page 6 USER MANUAL - LMR2442FX-C-(U) Rackmixer Mid EQ frequency control. Sets the center frequency of the semi-parametric mid frequency equalizer between 100Hz and 8kHz. Lo EQ level control. This is a shelving filter with a corner frequency of 80Hz, thus allowing to boost or attenuate all frequencies below this point by -15dB to +15dB.

  • Page 7: Stereo Input Channels

    USER MANUAL - LMR2442FX-C-(U) Rackmixer Stereo Input Channels Most controls and functions of the stereo channels are identi- cal to the mono channels, with the exception of no compres- sors provided and other differences outlined below. For any not listed item, refer to the mono channel section. Gain control.

  • Page 8: Master Section

    USER MANUAL - LMR2442FX-C-(U) Rackmixer Master Section TOP PANEL CONNECTIONS EFFECTS CONTROL ROOM PARAM MASTER AUX SECTION SUBGROUPS PAGE 7...
  • Page 9 USER MANUAL - LMR2442FX-C-(U) Rackmixer AUX SEND (1-4). These controls determine the overall output level of the AUX bus, with ratios of the different channel contributions set by the channel AUX controls (12&14). The AUX bus signal is then sent to either the external AUX SEND connectors (for AUX1-2-3) on the rear panel (section K) or to both the rear panel connector and the internal effects processor (AUX AUX Send SOLO.
  • Page 10 USER MANUAL - LMR2442FX-C-(U) Rackmixer EFFECTS TAP TEMPO button. This allows to tap along with the music to set a time-relevant parameter (if available) in the chosen effect algorithm. For effects where no time-base param- eter is available, this button is used to set a 3rd effects parameter. For all effects with a tap-settable time base, the rear illumination of this button will flash with the speed of the set timebase.
  • Page 11 USER MANUAL - LMR2442FX-C-(U) Rackmixer Rear Panel Connections / Elements POWER SECTION. The IEC wide-range AC power inlet, the mains power switch (status indicated by LED 45) and the phantom power switch (status indicated by LED 46) are located here. MAIN OUTPUT section.
  • Page 12 USER MANUAL - LMR2442FX-C-(U) Rackmixer Effect Algorithms / Parameters Preset Name Variable Parameter Tap Control Description CHORUS Depth, Speed Wav Shape Tri/Sine Chorus ensemble effect with short delays Classic stereo flanger with a slow sweep FLANGER Depth, Res Oscillation Speed PHASER Depth, Res Oscillation Speed...

  • Page 13: Operation

    USER MANUAL - LMR2442FX-C-(U) Rackmixer Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact your dealer immediately.
  • Page 14 USER MANUAL - LMR2442FX-C-(U) Rackmixer Connections This product uses the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper opera- tion. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.

  • Page 15: Technical Specifications

    USER MANUAL - LMR2442FX-C-(U) Rackmixer Technical Specifications Preamp Noise (EIN) ....-114dB ........0.007% 20 Hz to 20 kHz, (150Ω source) Mic In to Main Out, 20Hz to 20kHz Residual Output Noise ....-95dB AC IN ......AC110-250V~ 50-60Hz All level controls @ minimum (EU version) Crosstalk ......-70dB...

  • Page 16: Ec Declaration Of Conformity

    Burnham-on-Crouch, 10.09.2015 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...
