Hill Audio LMR-1202FX User Manual

12-channel rack mixing console
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RevA 09-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMR-1202FX and is the answer not in the manual?

Questions and answers

Related Manuals for Hill Audio LMR-1202FX

Summary of Contents for Hill Audio LMR-1202FX

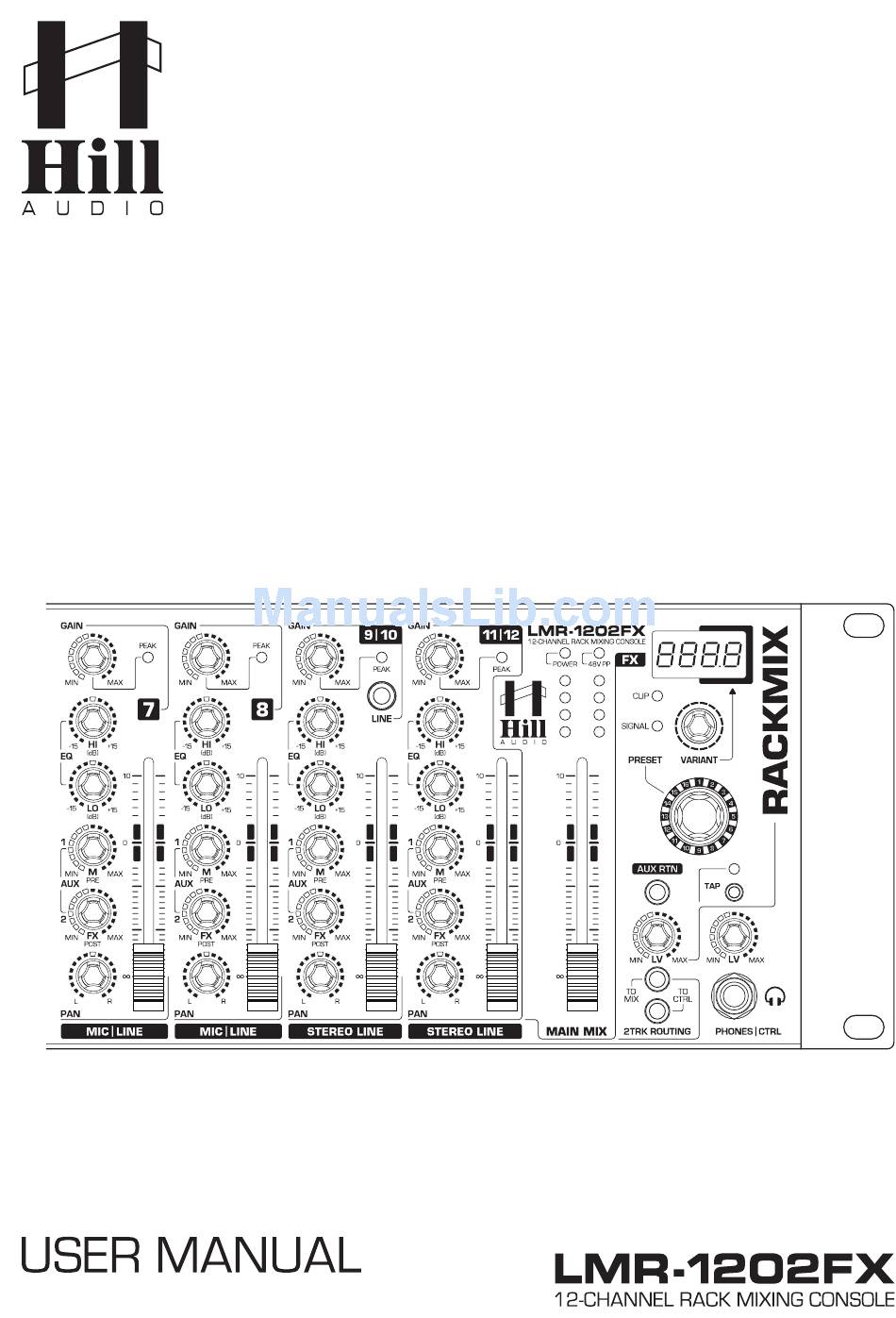

  • Page 1 RevA 09-2017...

  • Page 2: Important Safety Instructions

    USER MANUAL - LMR1202FX RACK MIXER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English.

  • Page 3: Health Advice

    USER MANUAL - LMR1202FX RACK MIXER Description The LMR-1202FX is a compact rack-format live sound mixer with 8 Mic/Line mono inputs and 2 stereo line inputs. It features 2 Aux buses - one pre-fader as a monitor bus, one post-fader as an effects bus, connected to the internal 16-programs/16 variations DSP effects processor.
  • Page 4 USER MANUAL - LMR1202FX RACK MIXER AC inlet and fuse holder. Use the supplied AC cord to connect the unit to AC mains. Make sure voltage and frequency stated and set on the unit comply with your local AC supply. The fuse can be accessed by the small drawer at the AC inlet.
  • Page 5 USER MANUAL - LMR1202FX RACK MIXER AUX SEND. Every AUX bus (Monitor, EFX) has a balanced TRS output which carries the signal composed from the channel AUX bus controls (16). Note that the Monitor AUX send is pre-fader while the EFX (effects) AUX Send is post-fader. AUX RETURN.
  • Page 6 USER MANUAL - LMR1202FX RACK MIXER MONO INPUT section (channels 1-8). These inputs channels can accept mono line input signals to be connected to the rear-side TRS jacks (10) or mono microphone signals to be connected to the rear-side XLR jacks (11). The mono input section has the same controls as the stereo input section (B).

  • Page 7: Main Mix Output

    USER MANUAL - LMR1202FX RACK MIXER 2TRK ROUTING. Allows to assigne 2TRK input (6) to the control room/phones output and the MAIN MIX output. HEADPHONES Output. Carries the same signal as the control room output (5), which is the main signal, or the effects solo signal depending on switch (25). The 2TRK signal can be added to the output depending on the setting of the switch (26).
  • Page 8 USER MANUAL - LMR1202FX RACK MIXER EFFECT PRESET CHART The chart below describes the presets and what the Variable and Tap controls do for each one. Preset Name Variable Paramenter Tap Control Description Classic stereo flanger with a slow sweep Flanger Depth, from low to deep –...

  • Page 9: Operation

    USER MANUAL - LMR1202FX RACK MIXER Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately.
  • Page 10 USER MANUAL - LMR1202FX RACK MIXER Connections The LMRx series mixers use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.

  • Page 11: Technical Specifications

    USER MANUAL - LMR1202FX RACK MIXER Technical Specifications Frequency response (Mic In @ -20 dB): CMRR (Maximum Gain).......>50dB @ 1kHz Crosstalk (adjacent channels)........-65dB Mic In to Main Out......10Hz-22kHz +0-1dB AC IN.........100-250V~ 50Hz-60Hz (25W) THD (Mic In @ -20 dB)..........0.01% SNR | Mic In to Main Out.........>90dB Dimensions......W483xH133.0xD162.0mm Weight..............3.75 kg Preamp Noise (EIN 150Ω...

  • Page 12: Ec Declaration Of Conformity

    Burnham-on-Crouch, 30.06.2017 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...
