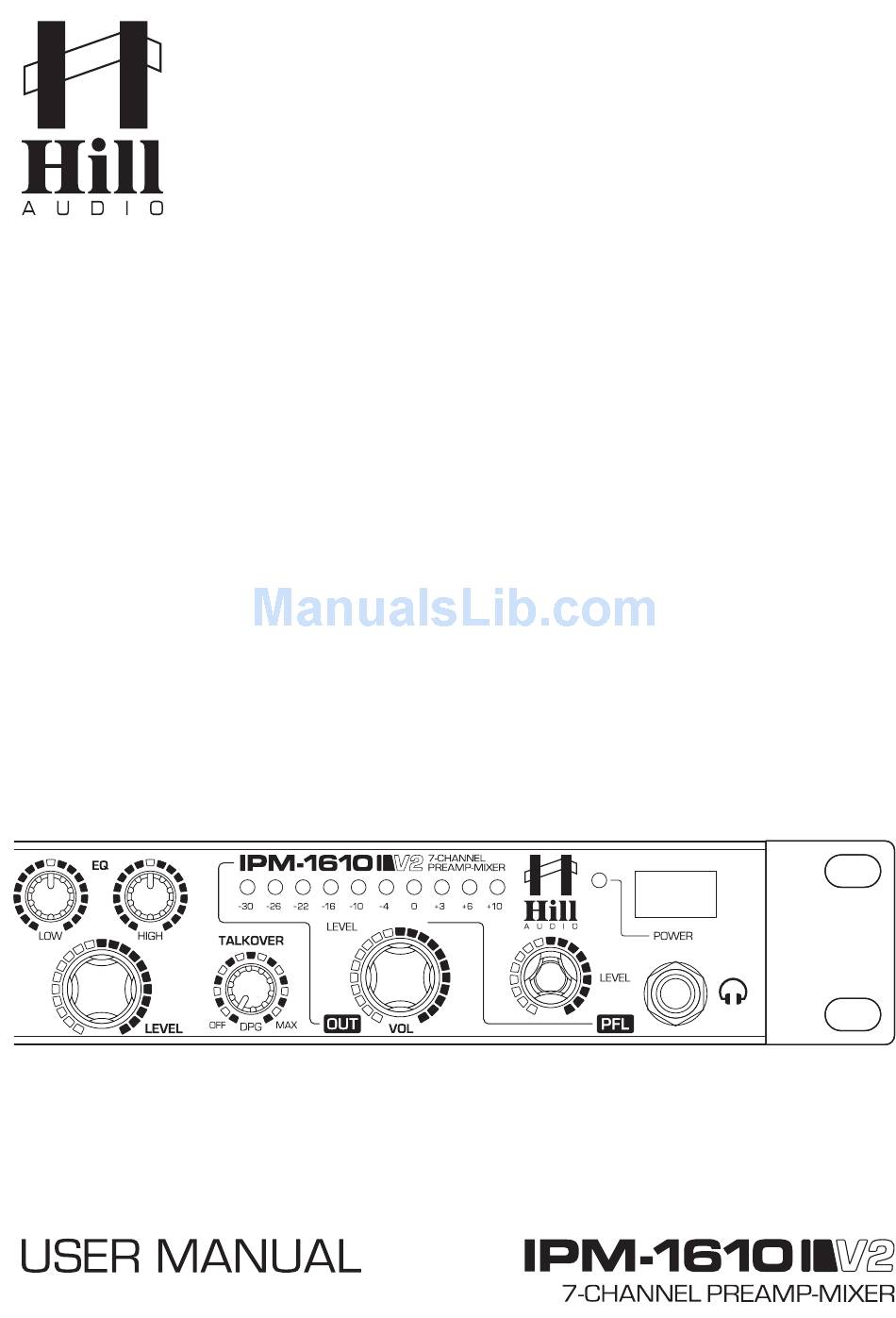

- Page 1 RevB 06-2017...
-
Page 2: Important Safety Instructions
USER MANUAL - IPM1610V2 MIC-LINE MIXER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English. -
Page 3: Health Advice
USER MANUAL - IPM1610V2 MIC-LINE MIXER Description The IPM-1610V2 is a 7-Channel mic/line mixer with 5 multi-purpose mic/line inputs, one dedicated microphone input and talkover feature. All inputs feature EQ’s and Gain control. The balanced output is provided both on TRS jacks as well as Phoenix-compatible connectors. Remote muting and emer- gency signal replay facilitate the use in installed sound systems. -
Page 4: Controls And Connections
USER MANUAL - IPM1610V2 MIC-LINE MIXER Controls and Connections Connections - Rear Output Section 11 12 Input Section Controls - Front Input Section Output Section PAGE 3... -
Page 5: Functional Description
USER MANUAL - IPM1610V2 MIC-LINE MIXER Functional Description The IPM-1610V2 is a 7-Channel mic/line mixer with 5 multi-purpose mic/line inputs, one dedicated microphone input and talkover feature. All inputs feature EQ’s and Gain control. The balanced output is provided both on TRS jacks as well as Phoenix-compatible connectors. Remote muting and emer- gency signal replay facilitate the use in installed sound systems. - Page 6 USER MANUAL - IPM1610V2 MIC-LINE MIXER MICROPHONE input for CH1/2/3/4/5. These are balanced ¼” TRS connectors, which can be internally set to either carry phantom power or not, thus these inputs can be used both with condenser and dynamic microphones. Please see section “microphone phantom power setting”.
- Page 7 USER MANUAL - IPM1610V2 MIC-LINE MIXER MAIN (stereo) output level control. Determines the main output level present at outputs (2)/(3). MAIN (stereo) output level meter. Displays the output level of the stereo main output (2)/(3). Note that the level limitation applied by means of the rear-side maximum level control (5) is not displayed on this meter.
-
Page 8: Internal Settings
To supply the necessary voltage to the microphone, the IPM-1610V2 provides an internal option to activate phantom power, separately for the priority micro- phone (microphone channel “M”) and for all other microphone inputs (CH1...CH5). Please note that the phantom power settings for channels 1-5 can only be made globally, not individually. -
Page 9: Operation
USER MANUAL - IPM1610V2 MIC-LINE MIXER Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately. - Page 10 USER MANUAL - IPM1610V2 MIC-LINE MIXER Connections The IPM-1610V2 use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper opera- tion. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.
-
Page 11: Technical Specifications
USER MANUAL - IPM1610V2 MIC-LINE MIXER Technical Specifications Signal/Noise..>82dBu (unwgtd 22Hz-22KHz) AC IN .......115V/230~ 50/60Hz Crosstalk Damping......＞65dB (Line) Power consumption......max. 20W THD..........＜0.03% (Line) Dimensions....W483xH44.5xD152.0mm Frequency response.....20Hz – 20 kHz Weight..........2.30 kg Block Diagram Maintenance and warranty While we have chosen the best components to make this product as rugged and reliable as possible, some parts in audio products (potentiometers, faders, switches) are subject to wear which is a matter of operation cycles, and not of time. -
Page 12: Ec Declaration Of Conformity
Burnham-on-Crouch, 30.06.2017 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...
