Hill Audio IMM-2320V2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

RevB 06-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMM-2320V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Hill Audio IMM-2320V2

Summary of Contents for Hill Audio IMM-2320V2

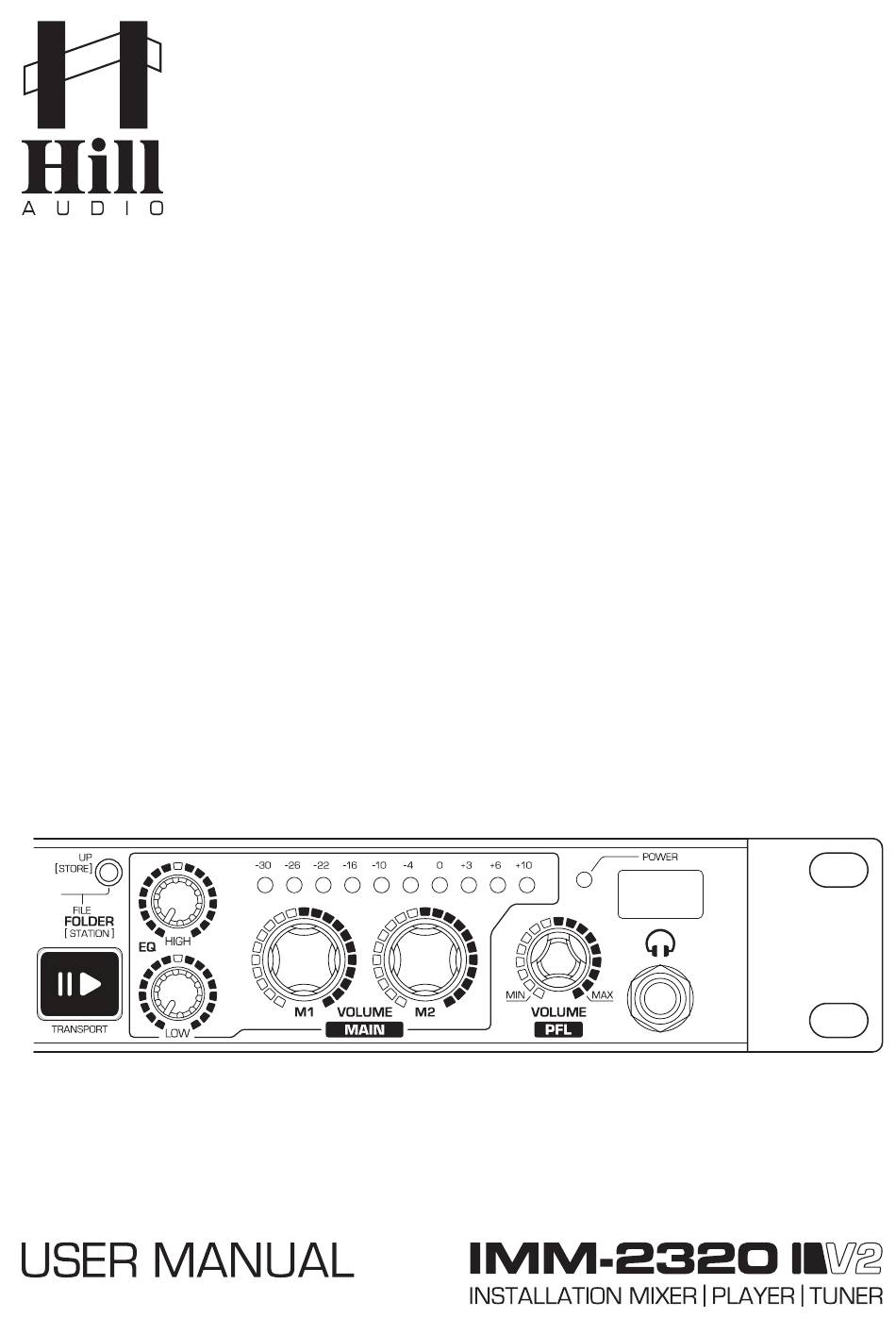

  • Page 1 RevB 06-2017...

  • Page 2: Important Safety Instructions

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully.
  • Page 3 USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Description The IMM-2320V2 is a combination of a basic audio mixer for stereo music sources and two micro- phones with a media player including FM tuner and IR remote control. It perfectly serves applications where foreground or background music is mixed with vocal announcements, as it frequently occurs in fitness and hospitality applications.

  • Page 4: Internal Settings

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER AC mains voltage setting WARNING - RISK OF FIRE Changing the AC supply voltage setting can result in a fire hazard if the settings are made incorrectly. Any change of AC supply voltage setting shall be expedited only by qualified, certified personnel.

  • Page 5: Controls And Connections

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Controls and Connections Rear: Output Section Rear: Input & Record Section Front: Input Section 30 31 Front: Output Section Media Player Instructions: Please see below PAGE 4...

  • Page 6: Functional Description

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Controls - Front (Media Player | Tuner) Display - Elements Remote Control - Elements Functional Description The IMM2320 is a combination of a compact audio mixer with two microphone inputs and three stereo sources and a media player with FM tuner and jingle player. Packed in a sleek 19’’| 1 U case and fitted with an infrared remote control for the media player functions, this unit is a perfect centre piece for commercial sound systems in hospitality and fitness audio applications.
  • Page 7 USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER First stereo main output. This is a balanced terminal block output carrying the same signal as output (2) Maximum level setting for first stereo main output. This control allows to limit the maximum level at the outputs (2)/(3)/(4) in order to match the connected sound system.
  • Page 8 USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Record output. This is an unbalanced stereo output carrying the same signal as the main output, but not influenced by the main volume controls (32, 35). This is normally used for recording the output to an external tape, CD or memory device. Music channel 1 &...
  • Page 9 USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER First stereo main output volume control. Allows to set the overall level of the first stereo main output (2)/(3)/(4), while the level balance of the individual sources can be adjusted via controls (23), (28) and (29). First stereo main output equalizer.

  • Page 10: Display Elements

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Play sequence selector (this control is inactive in FM mode). Selects between: Straight play sequence: The next song is determined by alphanumerical sorting. The left sequence mode indicator is lit in the display (59). Random play sequence: The next song is determined by random choice.
  • Page 11 USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Time Mode Display (Remaining): In Media play mode, this part of the display indicates that the remaining time of the current track is shown in the time display (51). The setting can be altered by (46).

  • Page 12: Jingle Player

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Mute button. Toggles between muted and un-muted output of the media player. Volume control (up/down). Allows you to set the required audio volume of the media player. FM preset station buttons. Allows to remotely activate the stored FM station presets. These buttons only work in FM mode and are disabled in Media play mode.

  • Page 13: Operation

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER A scheduled jingle play mode can be activated by pressing the J1 button for longer than 2 seconds, allowing the jingles to be inserted into the program in an automatic sequence with a certain duration of background music in between.

  • Page 14: Technical Specifications

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Bluetooth Replay (only versions with built-in BT receiver) The IMM-2320V2 is optionally available with built-in Bluetooth module (version IMM-2320V2B). This module can not be retrofitted and the availability of the Bluetooth-enabled version might be subject to territorial restrictions.

  • Page 15: Block Diagram

    USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER Connections This unit uses the below connector types, for which the pin assignment must comply with the following specification. Balanced connections are to be preferred over unbalanced connections where applica- ble and feasible. Avoid unbalanced connections exceeding 2m of cable length. Balanced Unbalanced Structure...

  • Page 16: Ec Declaration Of Conformity

    Burnham-on-Crouch, 30.06.2017 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...

This manual is also suitable for:

Imm-2320v2b
