Summary of Contents for Hill Audio LMD-1202FX

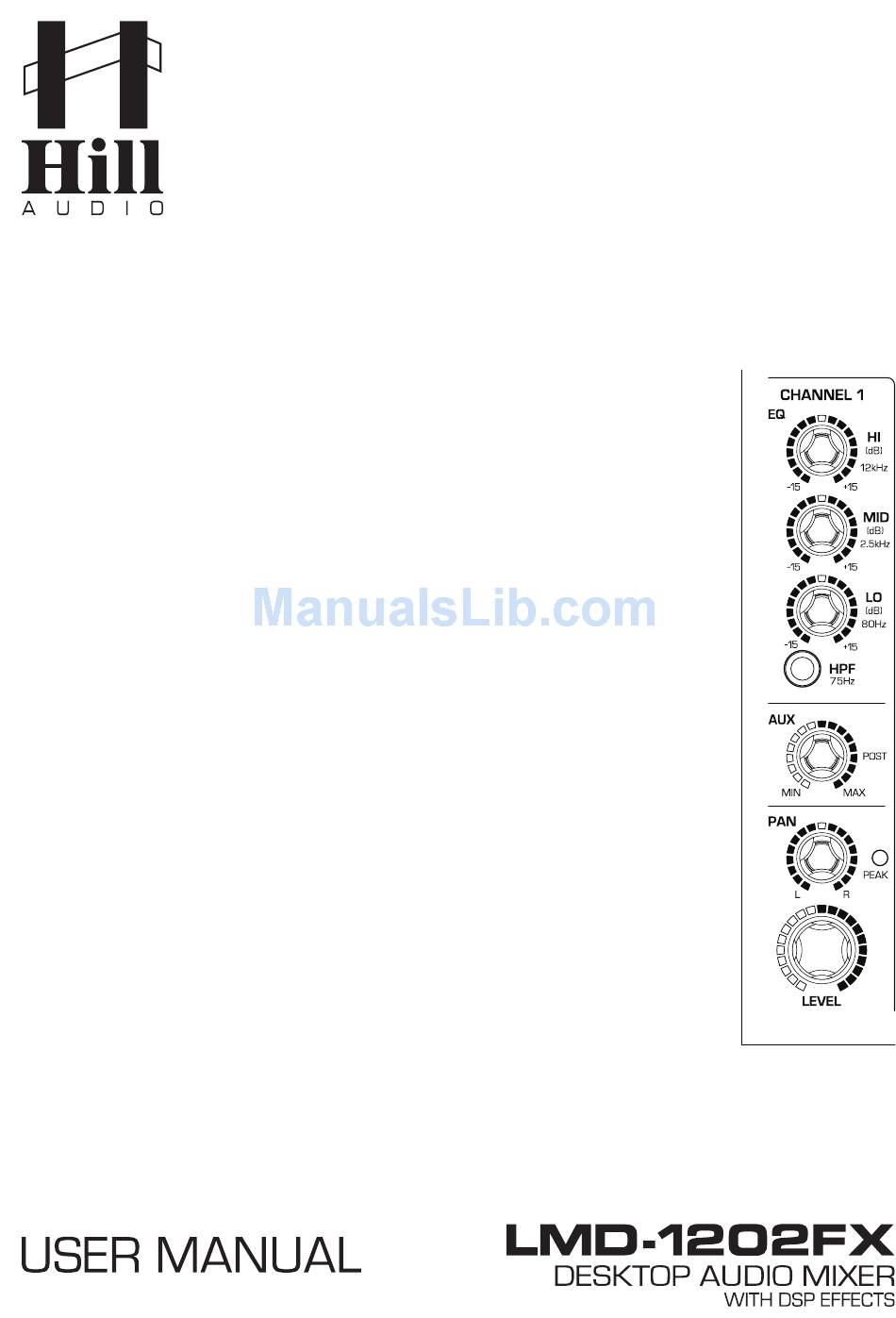

- Page 1 RevA 06-2014...
-
Page 2: Important Safety Instructions
USER MANUAL - LMD1202FX AUDIO MIXER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English. - Page 3 USER MANUAL - LMD1202FX AUDIO MIXER Description The LMD1202FX is desktop desktop audio mixer specifically deisgned for cost-sensitive applications where the ease of use is a key consideration. Offering the flexibility of connecting up to 8 mono and stereo sources, and featuring an internal DSP effects section, the LMD1202FX mixer is an all-in-one solution built from quality components, and grants neutral and linear sound reproduction in many scenarios from live music to home recording.
- Page 4 USER MANUAL - LMD1202FX AUDIO MIXER QUICK START, Part 1 STUDIO QUICK START – PLUG IN A MICROPHONE AND HEAR IT THROUGH YOUR POWERED STUDIO MONITORS Before we go through each feature on the mixer, we'll show a few • Are the level and gain knobs turned up on channel 1? Are the common setups so that you can begin using your mixer right away.
- Page 5 USER MANUAL - LMD1202FX AUDIO MIXER QUICK START, Part 2 LIVE SOUND QUICK START – PLUG IN A MICROPHONE AND HEAR IT THROUGH YOUR PA SPEAKERS Here is a typical live sound setup using two microphones, a stereo 6. Turn the MAIN MIX fader up to 0 (¾ of the way up). PA, and an on-stage floor monitor.
- Page 6 USER MANUAL - LMD1202FX AUDIO MIXER Front Panel Elements - Connections 12 13 16 17 CONTROL SECTION: High EQ: Controls a high shelving EQ, boosting or cutting Control Room/Phones level: Controls the level going to the frequencies from 12kHz and above Control Room outputs and the Phones outputs.
-
Page 7: Input Types
USER MANUAL - LMD1202FX AUDIO MIXER MICROPHONE INPUT (MIC) INPUT TYPES This XLR connector will accept virtually any professional micro- phone. It is designed for microphone level signals. If you have a line CHANNELS 1-4: MIC/LINE INPUTS level source with XLR output, you should get an XLR-to-¼" TRS cable and plug it into the line input (below). -
Page 8: Output Types
USER MANUAL - LMD1202FX AUDIO MIXER CHANNELS 5-12: STERO LINE INPUTS LEFT/MONO INPUT LEVEL This controls the level of the channel going to the Main Outs. See This ¼" input expects a line level signal. It accepts either balanced the previous section for more information. (TRS) or unbalanced (TS) ¼"... -
Page 9: Effects Section
USER MANUAL - LMD1202FX AUDIO MIXER EFFECTS SECTION PRESET On effects presets with delay, press this button twice to set the The LMD1202FX Effects Processor has 16 presets. Each of delay time. This is useful for setting the delay time in tempo with these is a different effect type. -
Page 10: Technical Specifications
USER MANUAL - LMD1202FX AUDIO MIXER Connections The LMD series mixers use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible. -
Page 11: Block Diagram
USER MANUAL - LMD1202FX AUDIO MIXER BLOCK DIAGRAM MONO CHANNELS 1 through 4 PHANTOM +48 VDC LEFT MAIN HIGH PEAK LEVEL GAIN MIX OUT MAIN MIX MIC IN RIGHT MAIN MIX OUT 2.5K LINE IN LEFT METER CD/TAPE OUT RIGHT 75Hz HI PASS LEFT... -
Page 12: Ec Declaration Of Conformity
ROHS Directive 2002/95/EC and is marked as follows: Shoeburyness, 10. May 2013 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Vanguard Way, Shoeburyness, Essex SS3 9QY, UK www.adelto.com | sales@adelto.com...
