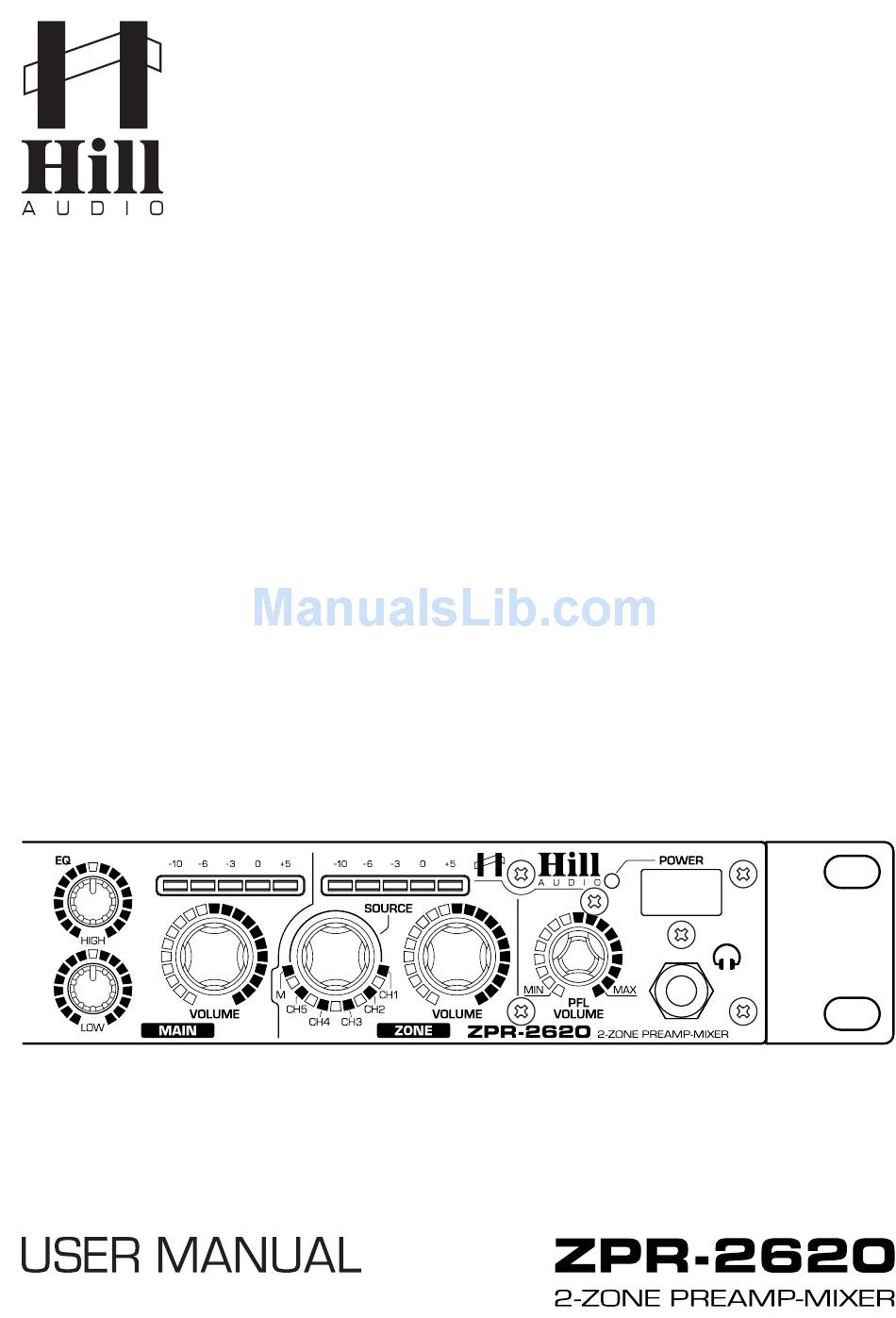

  • Page 1 RevA 06-2013...

  • Page 2: Important Safety Instructions

    USER MANUAL - ZPR2620 2-ZONE MIXER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English.

  • Page 3: Health Advice

    USER MANUAL - ZPR2620 2-ZONE MIXER Description The ZPR2620 6+2 Channel 2-Zone Mixer is a stereo mixing console with 2 microphone inputs, 6 stereo inputs, adjustable talk-over and one balanced master stereo output plus one balanced mono zone output. The numerous installation-specific features make this unit a very versatile choice in any environment from leisure to commercial applications, where foreground and background music replay need to be combined.

  • Page 4: Controls And Connections

    USER MANUAL - ZPR2620 2-ZONE MIXER Controls and Connections Connections - Rear Output Section Input Section Controls - Front Input Section 27 28 Output Section PAGE 3...

  • Page 5: Functional Description

    USER MANUAL - ZPR2620 2-ZONE MIXER Functional Description The ZPR2620 is a zoning mixer which allows to connect up to four microphones and 6 stereo sources to a total of 8 inputs. Two of the microphones have a dedicated equalizer and an automatic talkover function which provides microphone priority over program material.
  • Page 6 USER MANUAL - ZPR2620 2-ZONE MIXER Music Mute input. This is a terminal block input which allows to remotely mute all output signals (Stereo Master, Zone) by simply shortening the contacts. Emergency input. This is an auto-sensing, balanced terminal block input which allows the connection to an emergency evacuation system.
  • Page 7 USER MANUAL - ZPR2620 2-ZONE MIXER AUX Input for CHANNEL1. This is a 3.5mm Mini-TRS stereo socket which allows to connect sources like MP3 players etc. without removing the mixer from its mounting position. Once a plug is inserted, the rear panel inputs for CHANNEL1 are disabled and the connected source is active.

  • Page 8: Internal Settings

    USER MANUAL - ZPR2620 2-ZONE MIXER Internal Settings WARNING - DANGER Changing the internal settings requires to open the unit. Prior to opening the unit, the unit shall be disconnected from any AC supply. Any work on an open unit shall be expe- dited only by qualified, certified personnel.

  • Page 9: Operation

    USER MANUAL - ZPR2620 2-ZONE MIXER Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately.
  • Page 10 USER MANUAL - ZPR2620 2-ZONE MIXER Connections The ZPR series mixers use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.

  • Page 11: Technical Specifications

    USER MANUAL - ZPR2620 2-ZONE MIXER Technical Specifications AC IN (US version)......AC110-120V~ 60Hz Signal/Noise..........＞82dB (Line) Power consumption........max. 18W Crosstalk Damping........＞65dB (Line) Dimensions....W483(427)xH44.5xD183.5mm THD............＜0.05% (Line) (parentheses = without rack ears) Frequency response.........20Hz – 20 kHz Weight..............2.2kg AC IN (EU version)......AC220-250V~ 50Hz Block Diagram INPUT 1 -10dB To +10dB...

  • Page 12: Ec Declaration Of Conformity

    ROHS Directive 2002/95/EC and is marked as follows: Shoeburyness, 10. May 2013 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Vanguard Way, Shoeburyness, Essex SS3 9QY, UK www.adelto.com | sales@adelto.com...

This manual is also suitable for:

Zpr-2820
