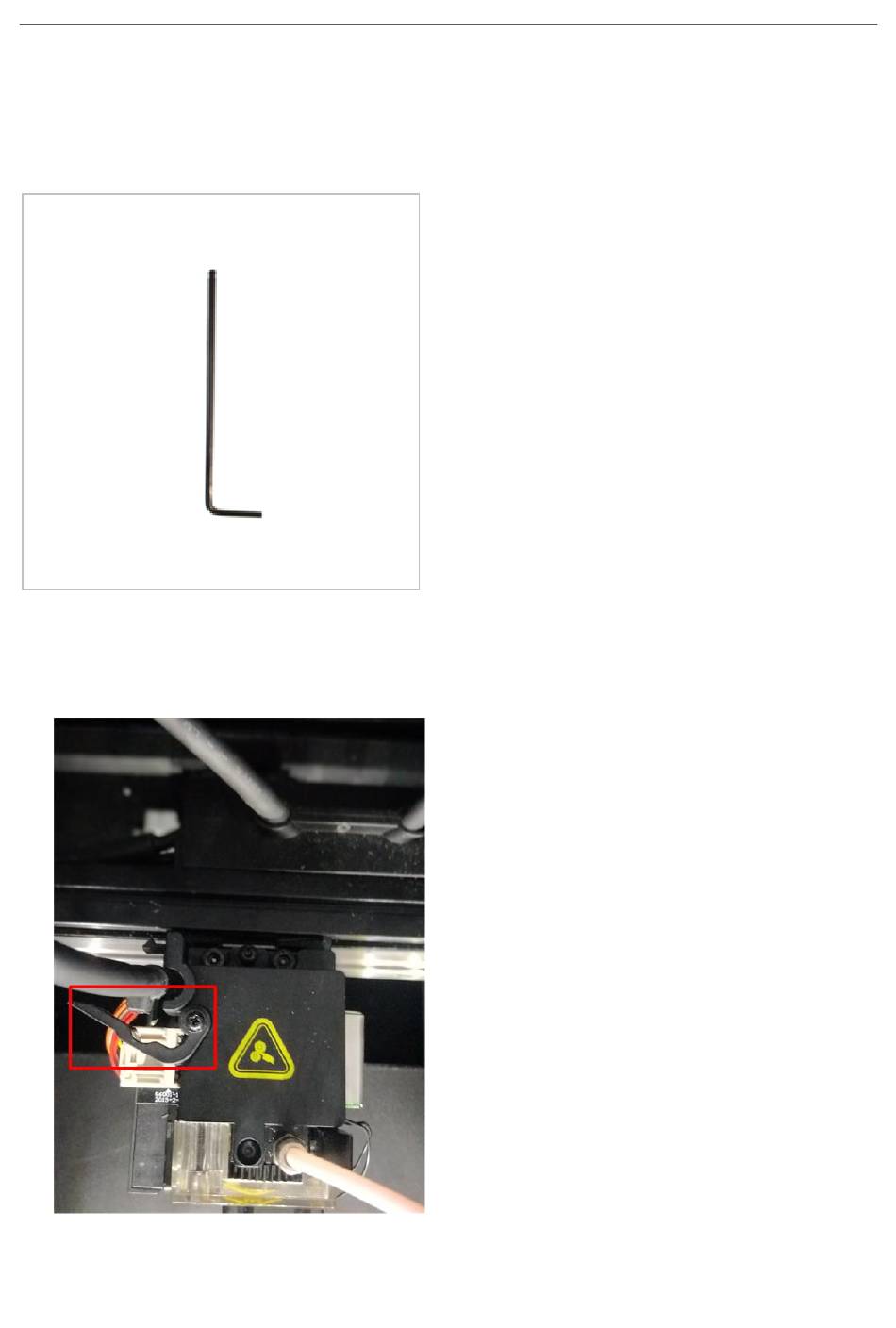

- Page 1 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 Manual E2 – How to Replace the Heating Rods - V1.0 Required tool: 2 mm hex wrench 1. Power off the machine. 2. Release the extruder connection cable retaining buckle. - 1 / 10 - www.raise3d.com...
- Page 2 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 3. Use a 2 mm hex wrench to remove the two screws retaining the extruder connection board cover to the extruder. 4. Use a 2 mm hex wrench, remove the two screws retaining the extruder connection board to the extruder.
- Page 3 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 5. Gently pull out the extruder connection board in the direction of the arrow shown below. Be mindful of the small protrusion holding it in place. 6. Remove the two cables from the slots marked in red as shown in the picture below. - 3 / 10 - www.raise3d.com...
- Page 4 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 7. Use a 2 mm hex wrench to remove the hotend retaining screw. At this step, the entire hotend assembly can be removed along with the heating rod and thermocoupler. 8.
- Page 5 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 9. Remove the retaining screw on the hotend with a 2 mm hex wrench. 10. Once the retaining screw is loosened, the heating rod should be able to slide out. Note: If the heating rod is not able to slide out freely, you can use a small flat head screwdriver to gently flex the heating block.
- Page 6 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 -Reassembly- 11. Prepare the new heating rod. 12. Slide the new heating rod into the heating block. Note: Ensure that the tip of the heating element is flush with the block, as shown in the picture below.
- Page 7 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 15. Once the hotend is inserted fully into the extruder, use a 2 mm hex wrench to tighten the screw to retaining the hotend. 16. Plug the small protrusion of the board into the hole on the extruder. Once it’s installed properly, tuck the cables into the cable management slot.
- Page 8 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 17. Reconnect the heating rod cable to the terminal slot marked HE_0 or HE_1. Reconnect the temperature sensor cable into the terminal slot marked TS0 or TS1. 18. Reinstall the two retaining screws with a 2 mm hex wrench. - 8 / 10 - www.raise3d.com...
- Page 9 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 19. Reinstall the connection board cover with the buckle facing the extruder connection cable socket. After reinstallation, the machine will need to undergo calibration. On RaiseTouch, select “Setting > Machine > Maintenance > Offset Calibration”, and follow the steps on the screen. [ Manual E2 –...
- Page 10 How to Replace the Heating Rods – V 1.0 Date：21/10/2019 America | Asia | Europe Sales & Business: sales@raise3d.com Technical Support: help.raise3d.com For any other inquiries: inquiry@raise3d.com - 10 / 10 - www.raise3d.com...
