Disks Cartridge
The disk cartridge allows installing up to four 2.5'' SATA HDD / SSD devices at the following configurations:
Up to 4 devices up to 9.5mm thick
•
Up to 2 devices up to 15mm thick
•

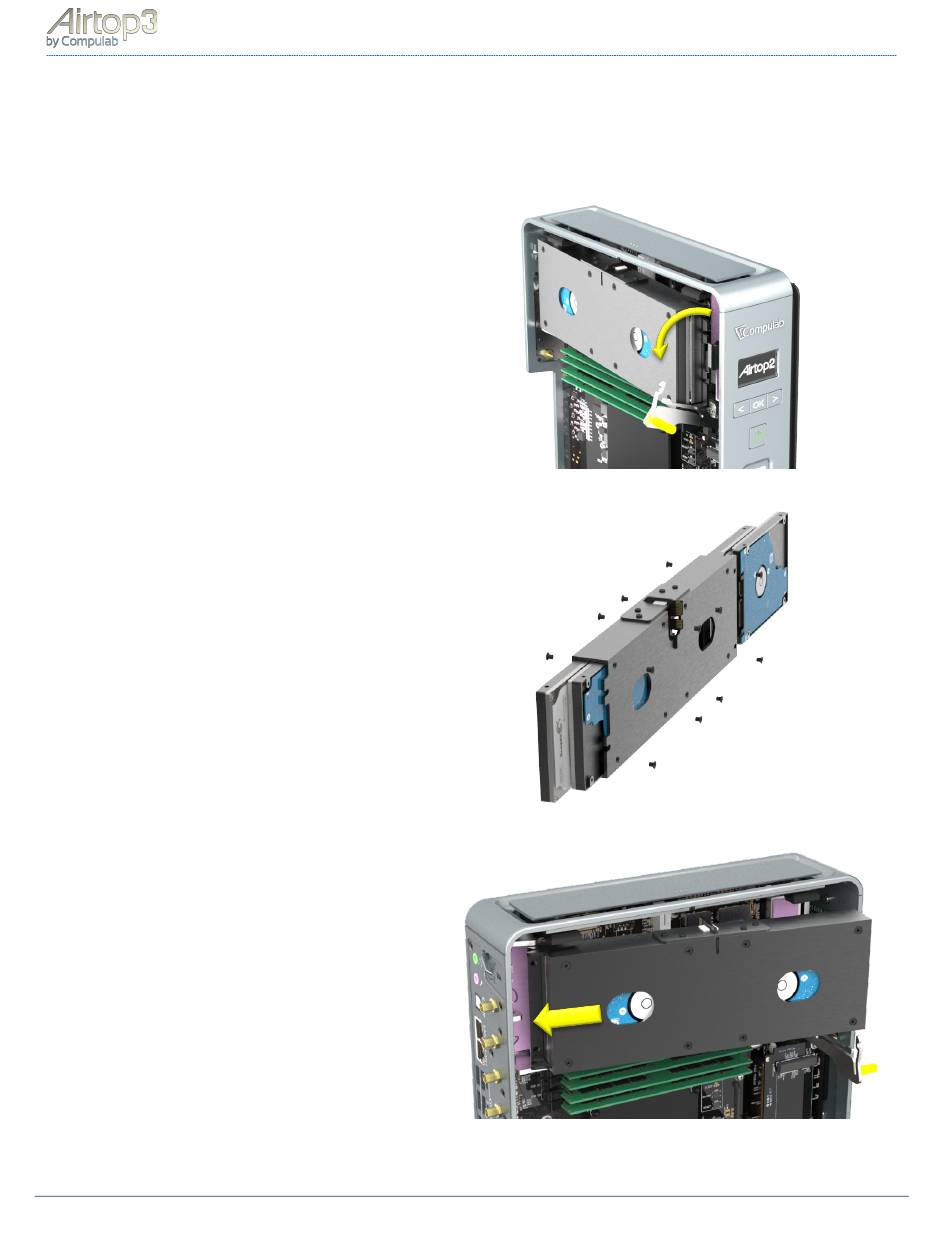

Removing the cartridge
The cartridge can be removed and re-installed without tools.
To remove the disk cartridge: pull the yellow lever of the disk
cartridge ejector on the top right.
The HDD cartridge will be released and can be taken out.
To remove and install disks
To remove an HDD remove the 4 HDD screws at the bottom. Then
push out the disk using the oval opening.
To install an HDD push the HDD into its position where the bottom of
the disk is facing the oval opening. When the HDD screw holes are
aligned with the holes in the cartridge the SATA connector is
connected.
Re-installing the cartridge
To re-install the disk cartridge:
• Ensure the disk cartridge ejector (yellow
lever) is open (down)
Push the cartridge onto the left bracket and
•
hang it on the right bracket
Close the cartridge ejector (lift yellow lever)
•
and press until it clicks into place.
