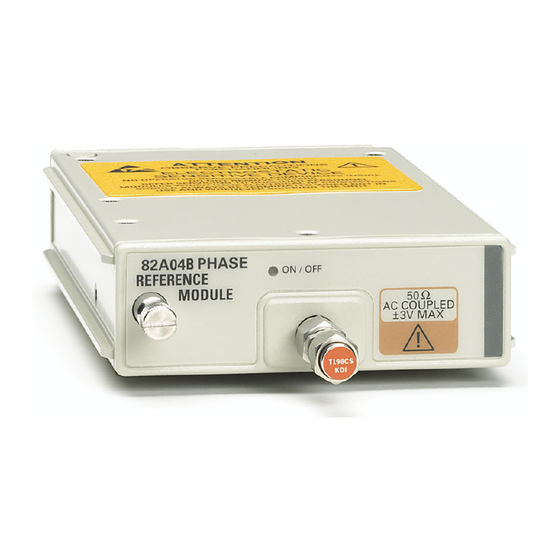

- Page 1 82A04B Phase Reference Module User Manual *P071312402* 071-3124-02...
- Page 3 82A04B Phase Reference Module User Manual www.tektronix.com 071-3124-02...
- Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending.
- Page 5 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
-
Page 7: Table Of Contents
Specifications ............. 82A04B User Manual... -
Page 8: Compliance Information
Before making connections to the input or output terminals of the product, ensure that the product is properly grounded. EMC compliance As this module is for use only when installed in the main instrument, see the primary instrument user documentation for EMC compliance information. 82A04B User Manual... -
Page 9: Environmental Considerations
Directives 2002/96/EC and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). Restriction of hazardous substances This product is classified as an industrial monitoring and control instrument, and is not required to comply with the substance restrictions of the recast RoHS Directive 2011/65/EU until July 22, 2017. - Page 10 Compliance information 82A04B User Manual...
-
Page 11: Getting Started
The 82A04B Phase Reference Module is also compatible with the DSA8200 Digital Serial Analyzer, CSA8200 Communications Signal Analyzers, and the TDS8200 Digital Sampling Oscilloscopes. - Page 12 180 kS/s. Accessories The following items are included with the 82A04B Phase Reference Module: SMA 50 Ω termination, Tektronix part number 015-1022-xx 1.85 mm (V) male to 2.92 mm (K) female adapter for connection to 3.5 mm compatible male connectors, Tektronix part number...
- Page 13 Tektronix mainframes: DSA8300 CSA8200, DSA8200, TDS8200 NOTE. Only one 82A04B module can be active in a mainframe at a time. Connector care Use extra care when attaching or removing SMA connectors. Use the following guidelines to make proper connections: Align the connectors carefully before turning the nut.
- Page 14 Table 1: Torque wrench information Connector type Torque setting Torque tolerance 56 N-cm (5 in-lb) ± 5.6 N-cm (± 0.5 in-lb) 1.85 mm 90 N-cm (8 in-lb) ± 9.0 N-cm (± 0.8 in-lb) 2.4 mm 2.92 mm 3.5 mm 82A04B User Manual...
-
Page 15: Operating Basics
Phase Ref Free-Run. With no external trigger to the DSA8300 mainframe needed, the 82A04B module can, together with the mainframe, create a timebase based on the phase of the reference clock. (Effectively, the timebase of the instrument functions as a “Phase-base” instead). The signal displayed on the screen will therefore repeat after one period of the reference clock. - Page 16 Operating basics Setup controls The controls for the 82A04B Phase Reference Module are contained in the Phase Ref setup dialog box in the mainframe. Refer to the mainframe online help for information about the control settings. 82A04B User Manual...
- Page 17 Using extender cables with the 82A04B You can install an 80X01 (1 meter) or 80X02 (2 meter) electrical sampling module extender cable on the 82A04B to provide correct phase reference clock signal alignment for different sampling module setups: Always use the 80X02 cable provided with the 82A04B when using...
- Page 18 Operating basics 82A04B User Manual...
-
Page 19: Specifications
DSA8300, DSA8200, TDS8200, CSA8200 Phase correction A phase reference signal can be applied capabilities and conditions to a mainframe equipped with the 82A04B Phase Reference Module to provide additional phase information for signals being acquired in Triggered Phase Corrected modes and primary phase information for signals being acquired in Free Run Phase Corrected modes. - Page 20 Specifications Table 2: 82A04B electrical (cont.) Characteristics Description Phase reference mode Triggered and Free Run Phase Corrected jitter Modes, 8 GHz - 60 GHz clock, 600 mV - 1.8 V input: 100 fs or better. Triggered and Free Run Phase Corrected Modes, 2 GHz - 8 GHz sine wave clock, 600 mV - 1.8 V...
- Page 21 82A04B-60 G 2 GHz to 60 GHz usable range. Operation below 8 GHz may require the use of external filters as noted for the standard 82A04B 2 GHz to 110 GHz settable range Table 3: 82A04B mechanical and environmental Characteristics...
- Page 22 Operating in Triggered Phase Corrected modes: deskew range and -500 ps to +100 ns on any individual channel in resolution 1 ps increments Operating in Free Run Phase Corrected modes: Deskew range extends over the full clock cycle of the phase reference 82A04B User Manual...
- Page 23 Characteristics Description Trigger sources A phase reference signal may be applied to the instrument, when equipped with an 82A04B Phase Reference Module, to provide additional phase information for signals being acquired in Triggered Phase Corrected modes and primary phase information for signals being acquired in Free Run Phase Corrected modes.
