Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Model 8020-STC Kelvin Standard Triaxial Connector Card provides standard triaxial connections for sense
and force connections on the Model 8020 High Power Interface Panel. Use this connector card to connect to a
device under test using standard triaxial connectors. This connector card can be installed in the following Model
8020 channels:
• 200 V channels 1 through 3
• Common LO/SLO

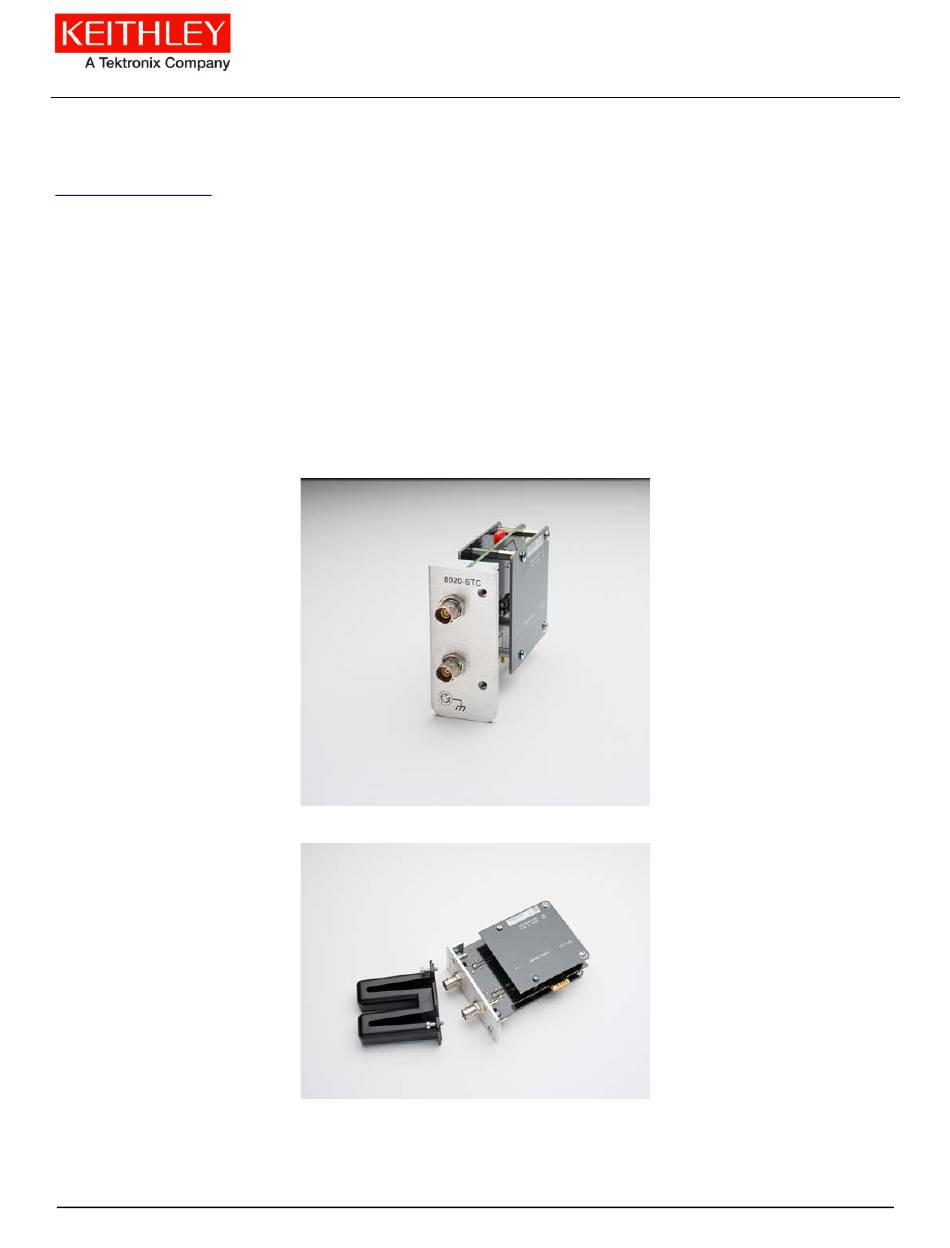

Figure 2: Model 8020-STC, side view (shown with Model 8020-TLV protective cover)
071321400 / October 2014
Kelvin Standard Triaxial Connector Card
Figure 1: Model 8020-STC, front view
*P071321400*
Model 8020-STC
1
Advertisement
Related Manuals for Tektronix Keithley 8020-STC
Summary of Contents for Tektronix Keithley 8020-STC
- Page 1 Model 8020-STC Kelvin Standard Triaxial Connector Card Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 http://www.keithley.com Description The Model 8020-STC Kelvin Standard Triaxial Connector Card provides standard triaxial connections for sense and force connections on the Model 8020 High Power Interface Panel. Use this connector card to connect to a device under test using standard triaxial connectors.
- Page 2 Model 8020-STC You can use the following Keithley Instruments cables to connect to this card: • Model 7078-TRX-* • Model 4200-TRX-* Installing the Model 8020-TLV protective cover The Model 8020-STC is supplied with the Model 8020-TLV protective cover. To ensure safety in systems that also use a Model 2657A on another device terminal, you must install the Model 8020-TLV after connecting the triaxial cable to the Model 8020-STC connector card.
-
Page 3: Electrical Characteristics
Model 8020-STC Electrical characteristics The following characteristics apply when used with the Model 8020: • Voltage: 240 V maximum • Connector current, fuse installed: 1.5 A maximum, 10 A pulsed, 1 ms at 2.2 percent duty cycle • Connector current, fuse removed: 1 ADC, no pulsing •... -
Page 4: Installation
Model 8020-STC Dimensions Figure 7: 8020-STC dimensions Installation See the Model 8020 User's Manual for installation information, available for download on the Keithley Instruments website Support page. 071321400 / October 2014... - Page 5 Model 8020-STC Enabling transient overcurrent protection Each connector card contains a 10 A fuse to allow maximum pulse current from each SMU instrument. Removing this fuse enables transient overcurrent protection. This transient overcurrent protection is useful for protecting probes and other sensitive interface hardware at the device under test. For more information, see the Model 8020 High Power Interface Panel User's Manual.
-
Page 6: Safety Precautions
Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury. - Page 7 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories, as defined in the specifications and operating information, and as shown on the instrument or test fixture panels, or switching card.
