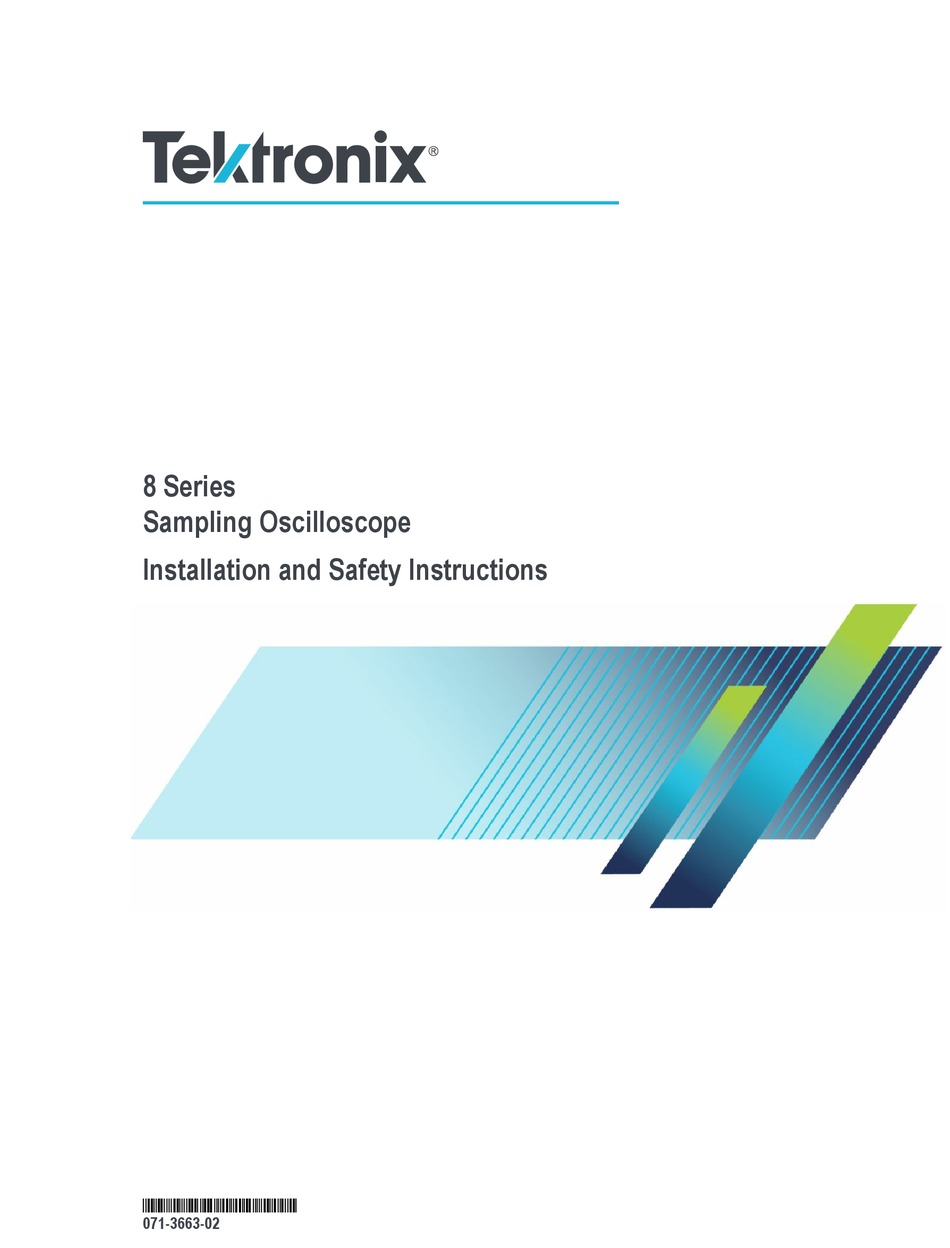

- Page 1 8 Series Sampling Oscilloscope Installation and Safety Instructions *P071366302* 071-3663-02...
- Page 3 8 Series Sampling Oscilloscope Installation and Safety Instructions www.tek.com 071-3663-02...
- Page 4 Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.
-
Page 5: Table Of Contents
Module installation and removal ........................Software installation and requirements ......................Software licenses and options ........................Firmware installation and requirements ....................... Connect the mainframe to the network and TSOVu ..................Cleaning Cleaning the instrument ..........................8 Series Installation and Safety Instructions... - Page 6 Table of Contents 8 Series Installation and Safety Instructions...
-
Page 7: Important Safety Information
Avoid exposed circuitry. Do not touch exposed connections and components when power is present. Do not operate with suspected failures. If you suspect that there is damage to this product, have it inspected by qualified service personnel. 8 Series Installation and Safety Instructions... -
Page 8: Service Safety Summary
Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries. Use care when lifting and carrying the product. This product is provided with a handle or handles for lifting and carrying. Use only the Tektronix rackmount hardware specified for this product. Service safety summary The Service safety summary section contains additional information required to safely perform service on the product. -
Page 9: Terms In The Manual
(This symbol may also be used to refer the user to ratings in the manual.) The following symbols may appear on the product: 8 Series Installation and Safety Instructions... - Page 10 Important safety information 8 Series Installation and Safety Instructions...
-
Page 11: Compliance Information
Up to 3.0 ps of additional jitter is allowed when the instrument is subjected to fields and signals as defined in the IEC 61000-4-3 tests. Up to 3.0 ps of additional jitter is allowed when the instrument is subjected to fields and signals as defined in the IEC 61000-4-6 tests. 8 Series Installation and Safety Instructions... -
Page 12: Safety Compliance
■ General Requirements. IEC 61010-2-030. Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use – Part ■ 2-030: Particular requirements for testing and measuring circuits. Equipment type Test and measuring equipment. viii 8 Series Installation and Safety Instructions... - Page 13 NOTE. Only mains power supply circuits have an overvoltage category rating. Only measurement circuits have a measurement category rating. Other circuits within the product do not have either rating. Mains overvoltage category rating Overvoltage Category II (as defined in IEC 61010-1) 8 Series Installation and Safety Instructions...
-
Page 14: Environmental Compliance
This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Tektronix Web site (www.tek.com/productrecycling). 8 Series Installation and Safety Instructions... -
Page 15: Preface
Preface TSO8 Series The 8 Series is a disaggregated platform that provides you with a scalable, reconfigurable sampling oscilloscope. The 8 Series consists of: ■ TSO820: Sampling oscilloscope mainframe that can house up to two modules. ■ TSOVu: Software application you install on a PC. It provides the UI for the oscilloscope (connects to the mainframe through LAN). -
Page 16: Available Product Documentation
The following documents for the TSO8 Series are available for download. For the most recent versions these documents, visit the Tektronix Web site at www.tek.com. You can find manuals by searching on the product name and selecting the Manuals filter. -
Page 17: Introduction To The Instrument
Up to 3000 meters (9842 feet) Clearance requirements Rear: 5.08 cm (2 in) Sides: 5.08 cm (2 in) Bottom: Cooling inlets on the bottom require that the instrument rests on a flat surface with the feet providing sufficient clearance. 8 Series Installation and Safety Instructions... -
Page 18: Power Requirements
To prevent damage to the modules, always wear a grounded antistatic strap (provided with the instrument) when handling modules or making connections. Wear anti-static clothing and work at a static-free workstation when using the modules. 8 Series Installation and Safety Instructions... -
Page 19: Front Panel
2.92 mm. 50 Ω, AC-coupled, divide-by- one/two/four/eight external trigger input port, enabling direct or prescaled triggering for clocks in the frequency range of 500MHz - 32 GHz. Antistatic connection 1MΩ A banana-jack antistatic connection of 1 MΩ to ground. 8 Series Installation and Safety Instructions... -
Page 20: Rear Panel
Handle Carrying handle. WARNING. Do not use this equipment while turned on if the instrument is sitting on its rear feet. This can prevent proper air flow. 8 Series Installation and Safety Instructions... -
Page 21: Initial Setup And Connection
To avoid damage, turn off the power before installing or removing a module. Power off the mainframe. Use a flathead screw driver to loosen the two latch screws that secure the top cover to the mainframe and lift off the cover. 8 Series Installation and Safety Instructions... - Page 22 Tighten the 4 attached screws to secure the module to the mainframe. Replace the mainframe cover and use the driver again to turn the screw latches to secure it in place. Before taking measurements, allow a minimum 30 minutes warmup and run a compensation. 8 Series Installation and Safety Instructions...
-
Page 23: Software Installation And Requirements
Before taking measurements, allow a minimum 30 minutes warmup and run a compensation. Software installation and requirements The following software is available for the 8 Series. The TSOVu base software enables mainframe connectivity and operation, cursors, results tables, and other features. The base software package also includes the Pulse measurements plug-in. Other plug-ins are available for purchase and download separately. - Page 24 Pulse measurement plug-in ■ This plug-in comes standard with the base installation package and provides pulse measurement capabilities. PAM4 measurement plug-in ■ Use of this plug-in is optional. To enable it, you must purchase a license. 8 Series Installation and Safety Instructions...
-
Page 25: Software Licenses And Options
Install optional plug-ins For a full list of optional plug-ins, see the Software licenses and options topic in the Help or view the TSO 8 Series product datasheet on www.tek.com. Due to the plug-in architecture of TSOVu, measurement plug-ins must be installed prior to TSOVu software launch. - Page 26 The information from the table has been copied to a clipboard. You can now paste it into a document of your choice. Plug-in options The following optional plug-ins are available to add to the TSOVu base software. These plug-ins enable new capabilities. For the most updated list of options, please view the TSO 8 Series datasheet at www.tek.com. Plug-in description Option License Measurements for PAM4 optical signals.
-
Page 27: Firmware Installation And Requirements
Determine the current version of firmware installed on the instrument using the front panel LCD screen menu. Download the instrument firmware to a USB drive: Navigate to C:\Program Files\Tektronix\TSOVu_Firmware to locate the firmware that was downloaded to your PC when you installed the TSOVu installation package. - Page 28 In TSOVu, select Connect > System Configuration and enter the previously noted IP address. Press the green + button (or the Enter key on a keyboard) and the instrument will connect. Mainframe and modules names and firmware versions will appear. 8 Series Installation and Safety Instructions...
- Page 29 Initial setup and connection Next steps: See the Run signal path compensation (SPC) topic in the Help for instructions for running a SPC before connecting a signal to view. 8 Series Installation and Safety Instructions...
- Page 30 Initial setup and connection 8 Series Installation and Safety Instructions...
-
Page 31: Cleaning
(Use only deionized water when cleaning the menu buttons or front-panel buttons.) Before using any other type of cleaner, consult your Tektronix Service Center or representative. - Page 32 Cleaning 8 Series Installation and Safety Instructions...
