Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com
Description
The 8010-DTB-220 is a device test board for testing 3-terminal devices in a TO-220 or TO-247 package and
2-terminal axial-lead devices. This test board is used with Keithley Instrument Models 8010 High Power Device
Test Fixture and 8011 High Current Test Socket Kit.
Electrical characteristics
The following characteristics apply when used with the Model 8010 High Power Device Test Fixture:
• Maximum voltage: 1000 V
• Maximum DC current: 15 A
• Maximum pulsed current: 100 A for 1 ms, 1 percent duty cycle
PA-1064 Rev. B / October 2012

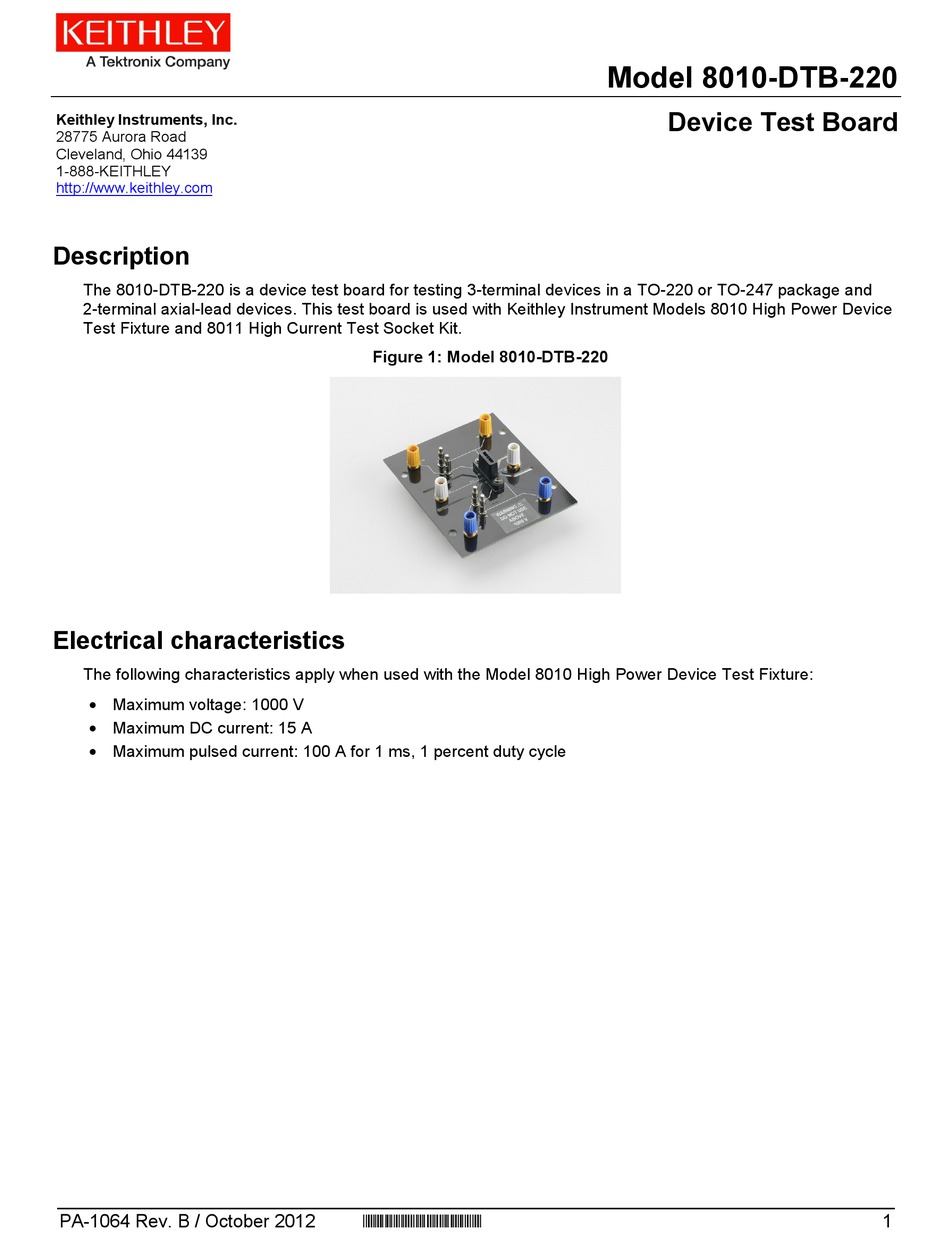

Figure 1: Model 8010-DTB-220
*PA-1064B*
Model 8010-DTB-220
Device Test Board
1
