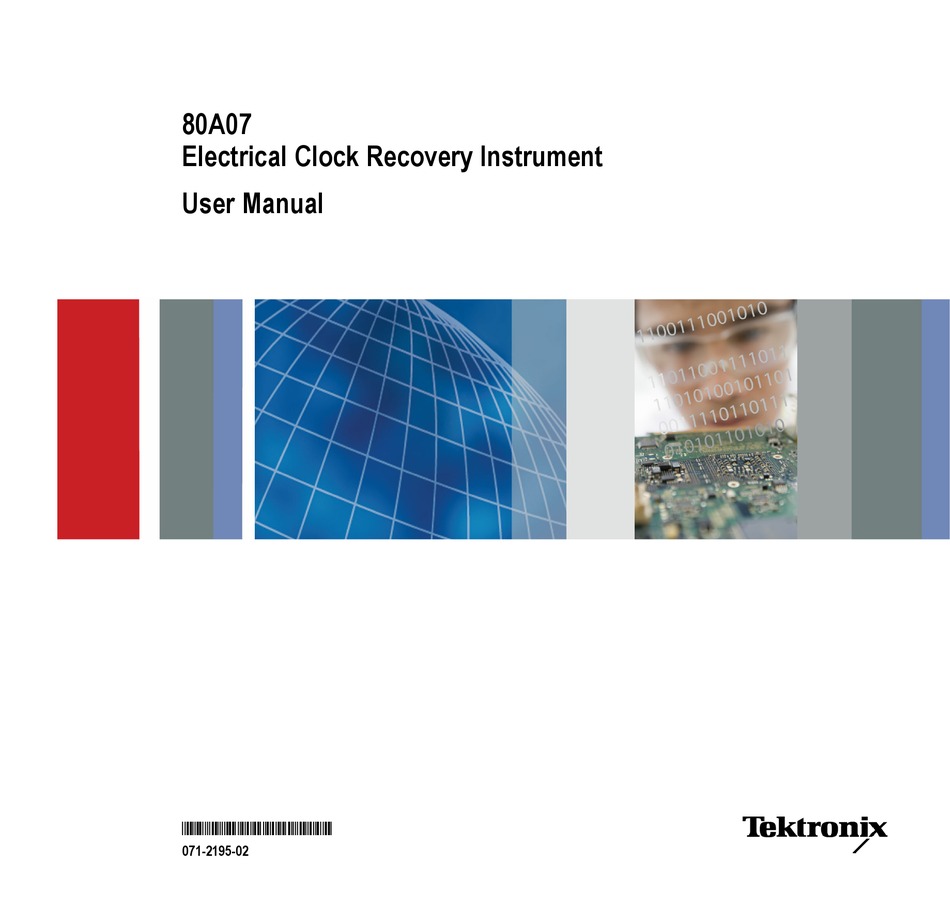

- Page 1 80A07 Electrical Clock Recovery Instrument User Manual *P071219502* 071-2195-02...
-
Page 3: User Manual
80A07 Electrical Clock Recovery Instrument User Manual www.tektronix.com 071-2195-02... - Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 5 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
-
Page 7: Table Of Contents
........... 80A07 Clock Recovery User Manual... - Page 8 Table of Contents 80A07 Clock Recovery User Manual...
-
Page 9: General Safety Summary
Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. 80A07 Clock Recovery User Manual... - Page 10 H CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: Protective Ground CAUTION WARNING Refer to Manual High Voltage (Earth) Terminal Earth Terminal Chassis Ground Standby 80A07 Clock Recovery User Manual...
-
Page 11: Environmental Considerations
Restriction of Hazardous This product has been classified as Monitoring and Control equipment, and is Substances outside the scope of the 2002/95/EC RoHS Directive. This product is known to contain lead, cadmium, and hexavalent chromium. 80A07 Clock Recovery User Manual... - Page 12 Environmental Considerations 80A07 Clock Recovery User Manual...
-
Page 13: Preface
Preface This is the user manual for the 80A07 Electrical Clock Recovery instrument. The manual covers capabilities, installation, operation, and specifications of the instrument. Manual Structure This manual is composed of the following chapters: H Getting Started provides a brief product description and how to install your instrument. - Page 14 Preface viii 80A07 Clock Recovery User Manual...
-
Page 15: Getting Started
Testing recovery data input. The 80A07 recovers a full-rate clock up to 12.5 Gb/s, an important requirement for testing XFP and other 10 Gb/s MSA modules. -
Page 16: Key Features
Getting Started Key Features The 80A07 provides a quality clock recovery solution with the following features: H 100 Mb/s to 12.5 Gb/s continuous data rate coverage H Accurate variable loop bandwidth from 100 kHz to 12 MHz H Auto lock capability with LED display... -
Page 17: Installation
Getting Started Installation To install the 80A07, connect the supplied AC power cord to a properly grounded AC supply. The input voltage requirement is 100 VAC to 240 VAC at 50 Hz to 60 Hz. Press the power button on the instrument using the front-panel On/Standby switch. -
Page 18: Static-Controlled Workstation
To prevent damage to the instrument, do not apply a signal outside the Maximum Input Voltage Swing. Static-Controlled For information on creating a static-controlled workstation, consult the Electron- Workstation ic Industries Association document, EIA-625; Requirements for Handling Electrostatic-Discharge-Sensitive (ESDS) Devices. 80A07 Clock Recovery User Manual... -
Page 19: Getting Acquainted With Your Instrument
Escape button — Exit Green - - locked submenus and revert Amber - - locking to previous values Red - - unable to lock Device settings Measured values Status indicators Figure 2: 80A07 front panel and display 80A07 Clock Recovery User Manual... -
Page 20: Input And Output Connector Care
CR clock output. The phase deviation front panel interface. Custom settings is displayed in % peak-peak and %RMS. can be programmed and saved. Figure 3: 80A07 display details AC power connector Auxiliary output connectors Figure 4: 80A07 rear panel... -
Page 21: Setting Up The 80A07
Getting Started CAUTION. To prevent electrostatic damage to the 80A07 and other instrumenta- tion, follow the precautions described in this manual and in the documentation provided with any connecting instruments. (See Electrostatic Discharge starting on page 3.) NOTE. For best repeatability and to prolong connector life, use a torque wrench, and tighten the connection to the range of 79-112 N⋅cm (7-10 in lb). - Page 22 Reports whether the CR is locked, unlocked, or in the process of locking. By default, the 80A07 is configured in Auto Lock Mode, where it automatically attempts to acquire lock if the detected Phase Error exceeds the Phase Error Limit setting or if the recovered clock is unstable. The user may force a relock at any time by pressing the Lock button.
-
Page 23: Remote Interface
Remote Control Remote control of the 80A07 is possible with the use of the Software Develop- er’s Kit (SDK). The SDK is available on the CDROM provided with your instrument. Refer to the instructions provided on the CDROM for use of the developer’s kit. -
Page 24: Accessories
174- - 4401- - xx Fuse 119- - 7362- - xx Optional Accessories You can order the following accessories for use with the 80A07. Consult a current Tektronix catalog for additions, changes, and details: Table 2: Optional accessories Item Part number Cables (450 mm/18 inch;... -
Page 25: Reference
The Jitter Transfer Function is not exactly an inverse of the PLL loop frequency response. The slope of the jitter transfer function, as well as its peaking will often be different that of the PLL loop response. 80A07 Clock Recovery User Manual... - Page 26 PLL response. Several examples of the jitter transfer function versus PLL loop response can be seen in the next section. The 80A07 has the ability to measure the PLL response and the jitter transfer function and display a plot of these to the user. This can be useful to understand the relationship of these parameters at the particular data rate.
- Page 27 80A07 requires information on the edge density to keep the loop parameter settings calibrated. In the 80A07, this can be done by one of two methods, auto and manual modes. In auto mode, the actual average edge density is measured and automatically calibrates the loop parameter settings.
-
Page 28: User Interface
However, full control of parameters is possible with direct entry of the user parameters. The 80A07 has variable jitter peaking, allowing jitter gain in excess of 10 dB if desired. - Page 29 Bit Rate: 5.0 Gb/s Bit Rate: 6.4 Gb/s Loop Bandwidth: 4 MHz Loop Bandwidth: 8 MHz Loop Bandwidth: 5 MHz Loop Bandwidth: 11 MHz Peaking: 0 dB Peaking: 0.1 dB max Peaking: 1 dB max Peaking: 0.5 dB 80A07 Clock Recovery User Manual...
- Page 30 0.5 to 3 2nd Order Yes. Buffered Transmitter Test: 11 to 22 DIMM DIMM Full SSC swing Full SSC swing. FB-DIMM2 4.8, 6.4, 8.0, Forwarded 11 to 22 0.5 to 2 Receiver Test: 0.06 Clock UI swing. 80A07 Clock Recovery User Manual...
- Page 31 Specified as damping factor of 0.707 min to 1.00 max — conversion taken from Gardner. Loop bandwidths specified with transition density of 1 (100% or 1010101 pattern). Assumption is that loop bandwidth will change proportionally as transition density reduces. 80A07 Clock Recovery User Manual...
- Page 32 Bandwidth (MHz) Date Rate (Gb/s) The 80A07 has a variable loop bandwidth from 100 kHz to 12 MHz. The calibrated loop bandwidth is limited as indicated by the graph. Figure 6: Clock recovery loop bandwidth versus data rate 80A07 Clock Recovery User Manual...
-
Page 33: Specifications
Specifications Specifications Electrical Sampling Modules This section contains specifications for the 80A07 Electrical Clock Recovery instrument. To meet specifications, two conditions must first be met: H The instrument must have been operating continuously for 20 minutes within the operating temperature range specified. - Page 34 10 Gps, 1010 pattern, 2 MHz BW, 0.5 dB peaking. Typical 70 fs Maximum 250 fs Return loss Minimum - - 15 dB 100 KHz to 12.5 GHz Rise/fall 80/20% point measurements, divide-by-1 Typical 25 ps Maximum 30 ps 80A07 Clock Recovery User Manual...
- Page 35 Linear Volts/UI of phase error depends on edge density and is not calibrated. Bandwidth limited. Connector type 50 Ω Impedance Coupling Frequency Track Output Volts/PPM of frequency variation (e.g. 5000 PPM gives 5 V ) is not calibrated. Connector type 50 Ω Impedance Coupling 80A07 Clock Recovery User Manual...
- Page 36 Table 7: Environmental specifications Specification Characteristics Dynamics Vibration (operating) Meets MIL- - PRF- - 28800F Class 3 Shock Meets MIL- - PRF- - 28800F Class 3 Bench handling (operating) Meets MIL- - PRF- - 28800F Class 3 80A07 Clock Recovery User Manual...
- Page 37 The instrument meets or exceeds the EMC requirements of the following standards: EN61326- - 1 European Community Requirements Susceptibility The instrument meets or exceeds the EMC requirements of the following standards: EN61326- - 1 European Community Requirements 80A07 Clock Recovery User Manual...
-
Page 38: Certifications
Conducted RF immunity IEC 61000- - 4- - 11 Voltage dips and interruptions immunity EN 61000- - 3- - 2 AC Power Harmonic Current Emissions EN 61000- - 3- - 3 Voltage changes, fluctuations, and flicker 80A07 Clock Recovery User Manual...
