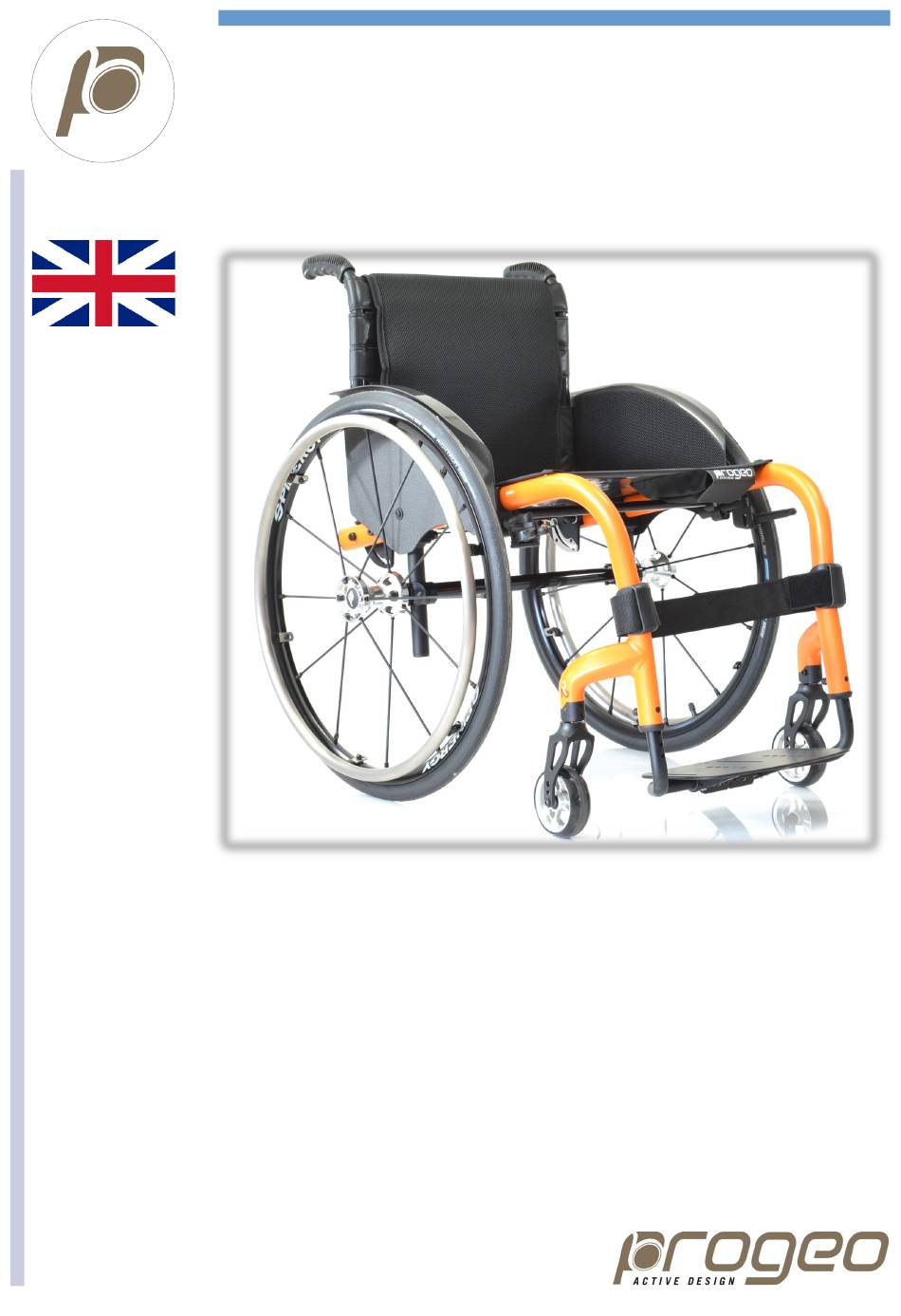

S E R V I C E M A N U A L
JOKER R2
SERVICE MANUAL
Rev. 0 - 06/05/2020
ENGLISH
Service Manual JOKER R2 1
REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the JOKER R2 and is the answer not in the manual?

Questions and answers

Related Manuals for progeo JOKER R2

Summary of Contents for progeo JOKER R2

  • Page 1 S E R V I C E M A N U A L JOKER R2 SERVICE MANUAL Rev. 0 - 06/05/2020 ENGLISH Service Manual JOKER R2 1 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 2 RehaTEAM® disclaims any responsibility for damage to the product or the peo- ple due to any modification that is not properly performed or that, in any case, does not guarantee safety to the user. Service Manual JOKER R2 2 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 3 “U” TUBE ALUMINIUM FOOTPLATE BACKREST HEIGHT Aluminium or titanium backrest BACKREST HEIGHT Carbon fibre backrest BACKREST ANGLE SEAT WIDTH ENLARGEMENT QUICK RELEASE AXLE (rear wheel) Service Manual JOKER R2 3 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 4 Pay attention to the spacers between caster and fork. It is advisable to spread a drop of mild lock thread glue on the bolts V. Service Manual JOKER R2 4 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 5 Check the perpendicularity again and, if necessary, correct it. It is advisable to pread a drop of mild lock thread glue on all grab screws G. Service Manual JOKER R2 5 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 6 If the wheelchair TURN LEFTT, the cause is one or more of the following: The LEFT fork is tilted inwardly and/or backward The RIGHT fork is tilted outwardly and/or frontward Follows next page Service Manual JOKER R2 6 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 7 Until 2019 the axles had no inserts C0 or C1. There were 0°, 1°rh and 1°lh axles. To adjust the directionality, it is necessary to change the axle. SIDE VIEW Service Manual JOKER R2 7 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 8 It is advisable to spread a drop of mild lock thread glue on the on the grab screws B. Service Manual JOKER R2 8 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 9 The rear height adjustment can also change the point of balance (setting) of the wheelchair. If necessary, adjust the setting. You will never need to modify the side guard. Part of the clamp B leaning against the plate Service Manual JOKER R2 9 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 10 B. Service Manual JOKER R2 10 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 11 Following the instruction above, you can reach a particularly prudential setting approx. 5 cm (distance X = 0, rear clamp in contact with the backrest plate). Service Manual JOKER R2 11 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 12 If the two measures are equal or the front one is slightly narrower (max. 5 mm), you have a good convergence as drawing 2 or 3. If different, you have to adjust the convergence. Se differente, è necessario regolare la campanatura. Follows next page Service Manual JOKER R2 12 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 13 Check the measure from a fix point of the frame to the centre of the tyre on each side. Should there be a difference greater than 2-3 mm, check the distance between clamp and axle as above mentioned. If necessary, correct the adjustment. Service Manual JOKER R2 13 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 14 Note: if the frame s rather short (short seat depth) there may be interference with the front curve of the frame. In that case, it is necessary to move the rear wheel backward (point of balance) as much as necessary (see adjustment sheet ”setting”) Service Manual JOKER R2 14 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 15 Start screwing the two bolts B all the way down and then the two nuts G. Should the brake movement be hard, slightly loosen the bolts B. Service Manual JOKER R2 15 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...

  • Page 16: Side Guard

    D of the adjustment post. Take care when fitting the bolt V2 with care to prevent damaging the thread of the threaded hole. Follows next page Service Manual JOKER R2 16 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 17 After the rear height adjustment, adjust, if neces- At each adjustment, spread some mild lock thread glue on the bolts V2. sary, the brakes, too. Service Manual JOKER R2 17 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 18 Then, use and let a M5 tap through the threaded hole of the blade and out of the side guard. At each adjustment, spread some mild lock thread glue on the bolts C and H. Follows next page Service Manual JOKER R2 18 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 19 When you change both the rear height and the setting, you have to move the side guard up or down and forward or backward. Continue with instruction and, if necessary, instruction B, too At each adjustment, spread some mild lock thread glue on the bolts C and H. Service Manual JOKER R2 19 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 20 65 mm from the edge, where to drill the 45 Frame hole. Now, always paying attention to the centring, drill a 3 mm hole first, then 6 mm and finally 8.5. Service Manual JOKER R2 20 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 21 The height adjustment of the footplate can affect the directionality of the wheelchair, in fact, if the footplate is slightly tilted on either side, the wheelchair will go right or left. In such case, correct the height of the right or left tube. Service Manual JOKER R2 21 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 22 To make inserting the tubes easier, if possible, remove the rubber adaptor from the frame and slide it along the footplate tube; that will cre- ate more room for the passage of footplate tubes. 8 cm Service Manual JOKER R2 22 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 23 It will be necessary to adjust the inclination. 7 cm INTERNAL 2/3 INTERNAL 2/3 EXTERNAL EXTERNAL Service Manual JOKER R2 23 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 24 If you tighten the two bolts hard, the plate will results nearly fixed. At each adjustment, spread some mild lock thread glue on the bolts B. Service Manual JOKER R2 24 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 25 It will be necessary to adjust the inclination. External footplate Service Manual JOKER R2 25 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 26 Service Manual JOKER R2 26 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...

  • Page 27: Backrest Height

    Note: if the backrest tube is in carbon fibre, follow the instructions of the adjustment sheet “backrest height—carbon fibre backrest”. The titanium backrest structure includes a plastic adaptor, just follow the same instructions above. Plastic adaptor Service Manual JOKER R2 27 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 28 The carbon fibre backrest tube is not suitable to fixing any clamps, such as those used for a postural system hardware. Note: if the backrest tube is assembled on a aluminium or titanium backrest structure, follows these same instructions. Service Manual JOKER R2 28 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...

  • Page 29: Backrest Angle

    Remember that the backrest angle can affect the point of balance of the wheelchair. In fact, with tilted backward backrest (open angle), the wheelchair becomes less stable. Service Manual JOKER R2 29 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
  • Page 30 At each adjustment, it is advisable to spread a drop of mild lock thread glue on the bolts V2. Service Manual JOKER R2 30 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...

  • Page 31: Quick Release Axle

    Check and if necessary do the same with another half turn. Do not unscrew the button too much: the pin will come off and, consequently, the balls will fall to the ground. Service Manual JOKER R2 31 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
