< Part 3 >

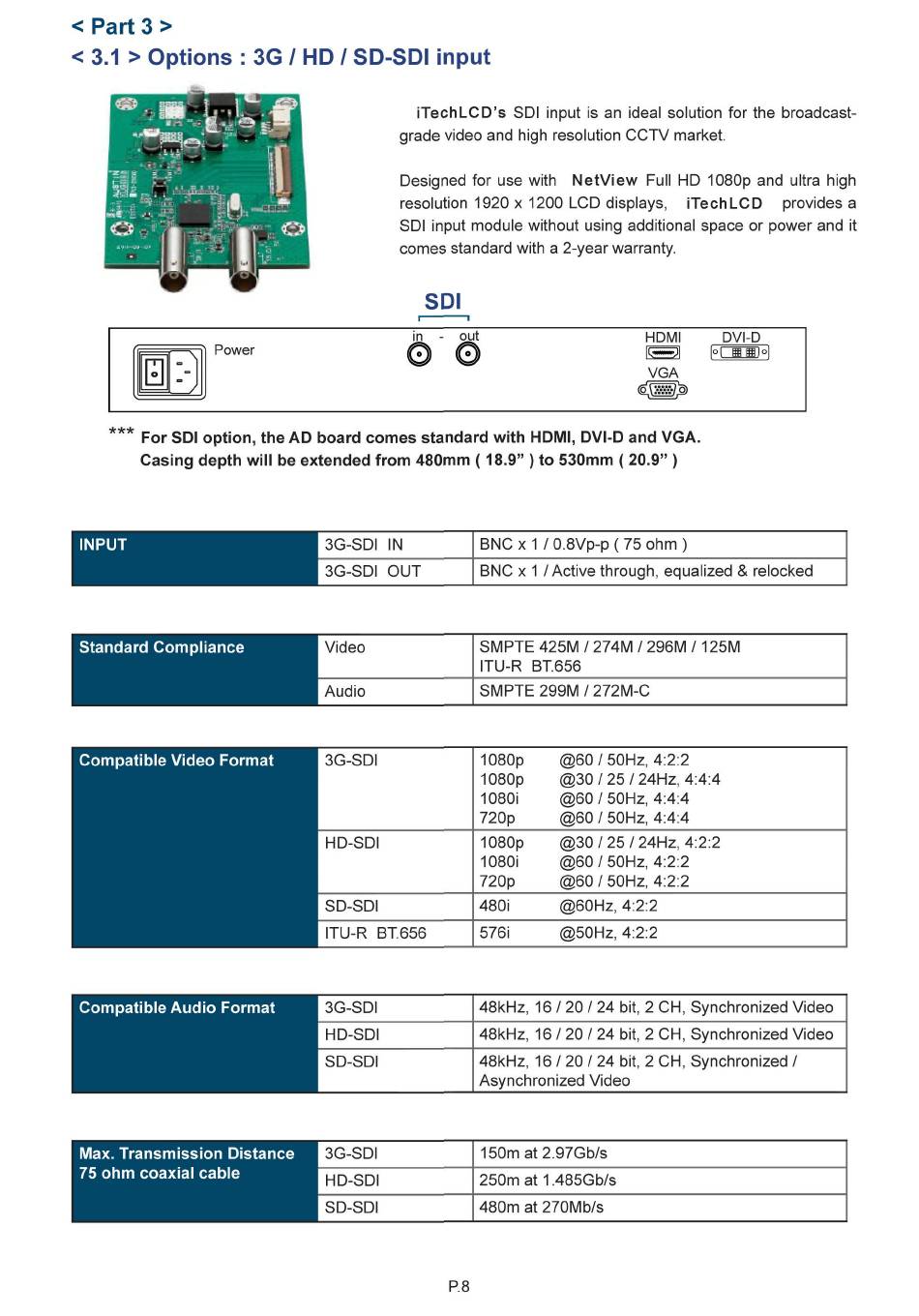

< 3.1 > Options : 3G / HD / SD-SDI input
Power Power
||H ||H
= =
) )
For SDI option, the AD board comes standard with HDMI, DVI-D and VGA.
Casing depth will be extended from 480mm (18.9" ) to 530mm ( 20.9" )
Standard Compliance Standard Compliance
Compatible Video Format Compatible Video Format Compatible Video Format Compatible Video Format
Compatible Audio Format Compatible Audio Format Compatible Audio Format
Max. Transmission Distance Max. Transmission Distance Max. Transmission Distance
75 ohm coaxial cable 75 ohm coaxial cable 75 ohm coaxial cable
iTechLCD's SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with
resolution 1920 x 1200 LCD displays,
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
SDI
1
1
out out out out
in - in - in - in -
© © © ©
© © © ©
3G-SDI IN B N C x I /0.8Vp-p(75ohm
3G-SDI OUT BNC x 1 /Active through, equalized & relocked
Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
SMPTE 299M / 272M-C
Audio
3G-SDI 1080p
1080p
1080i
720p
HD-SDI 1080p
1080i
720p
480i
SD-SDI
ITU-R BT.656 576i
3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
SD-SDI
Asynchronized Video
3G-SDI 150mat2.97Gb/s
HD-SDI 250mat1.485Gb/s
4 8 0 m a t 2 7 0 M b / s
SD-SDI
P.8
NetView Full HD 1080p and ultra high
iTechLCD
HDMI HDMI HDMI HDMI DVI-D DVI-D
VGA VGA VGA VGA
@ 6 0 / 5 0 H z , 4:2:2
@30 / 2 5 / 2 4 H z , 4:4:4
@ 6 0 / 5 0 H z , 4:4:4
@ 6 0 / 5 0 H z , 4:4:4
@30 / 2 5 / 2 4 H z , 4:2:2
@ 6 0 / 5 0 H z , 4:2:2
@ 6 0 / 5 0 H z , 4:2:2
@60Hz, 4:2:2
@50Hz, 4:2:2
provides a
