Vinotemp VT-21TEDS-2Z Manual
Replacing the temperature display board
Hide thumbs
Also See for VT-21TEDS-2Z:
- Instruction manual (11 pages) ,
- Owner's manual (12 pages) ,
- Instruction manual (11 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vinotemp VT-21TEDS-2Z
Summary of Contents for Vinotemp VT-21TEDS-2Z

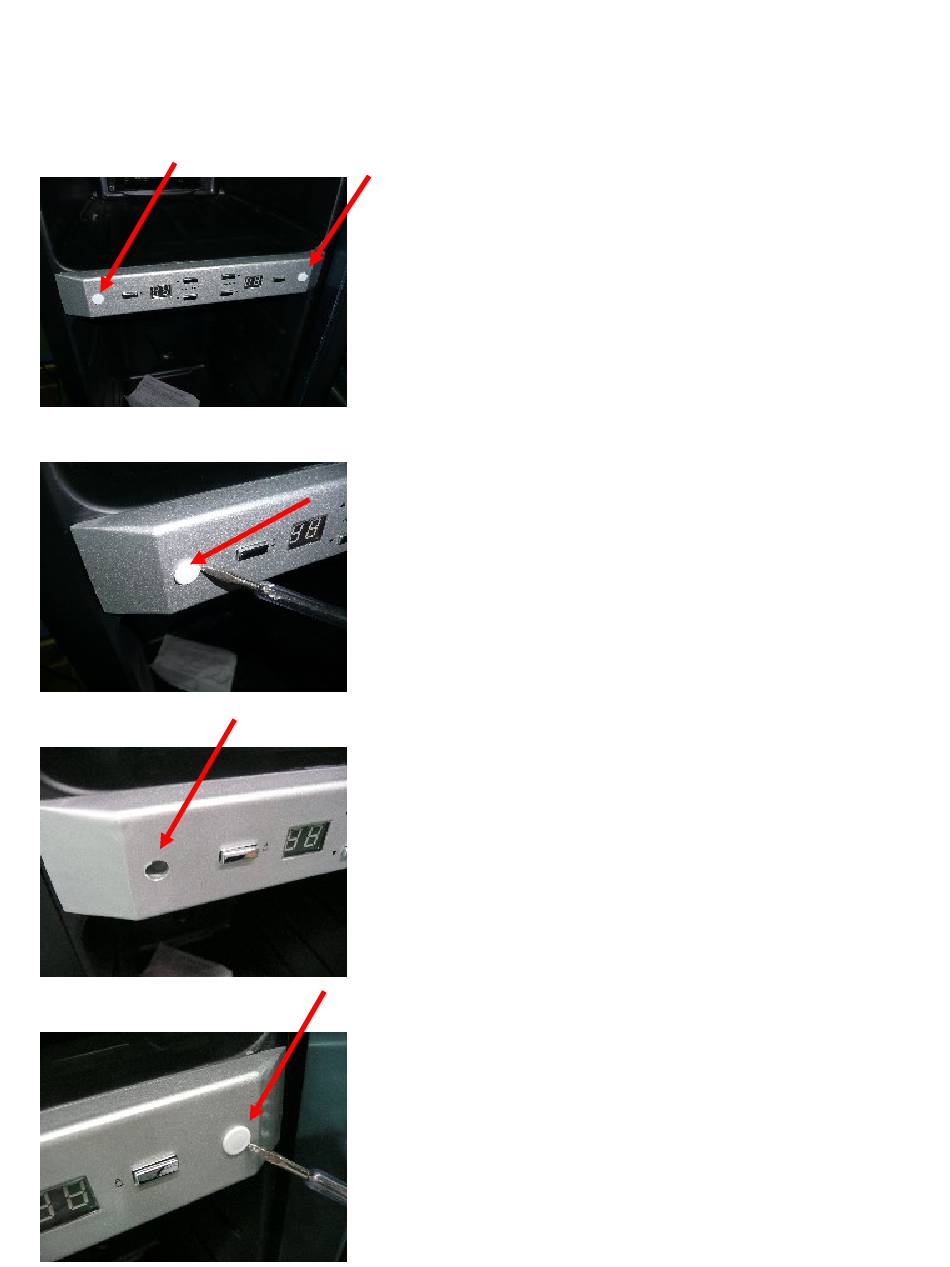

- Page 1 VT-21TEDS-2Z VT-21TEDS-2Z, replacing the Temperature Display Board Open the wine cooler door, you will find two screw caps on the temperature display board Then use a screwdriver to gently open the screw cap You will find a hole Also open the other screw cap...
- Page 2 In the two holes, there are two screws Use a screwdriver to open the left screw Then open the right screw Now the display board will separate from the wine cooler...
- Page 3 On the left and right side, you will find some wires and wire connections. There are two different types of boards that will both work. The picture below will show you the two boards and the two types of wiring connections. Disconnect the wiring connections.
- Page 4 See the back of the temperature display board There are four screws, use a screwdriver to open them Now take out the display board from the box...
- Page 5 Then put the new display board on the box Now place the static prevention film back on. Put the screw’s back on Connect the temperature display wire from two sides...
- Page 6 Place the wire and connection back into its housing. Please be careful not to crimp the wire. Put the panel on the wine cooler according to the screw place Put on the left and right screw Put screw caps back on. A new temperature display board is now installed...
