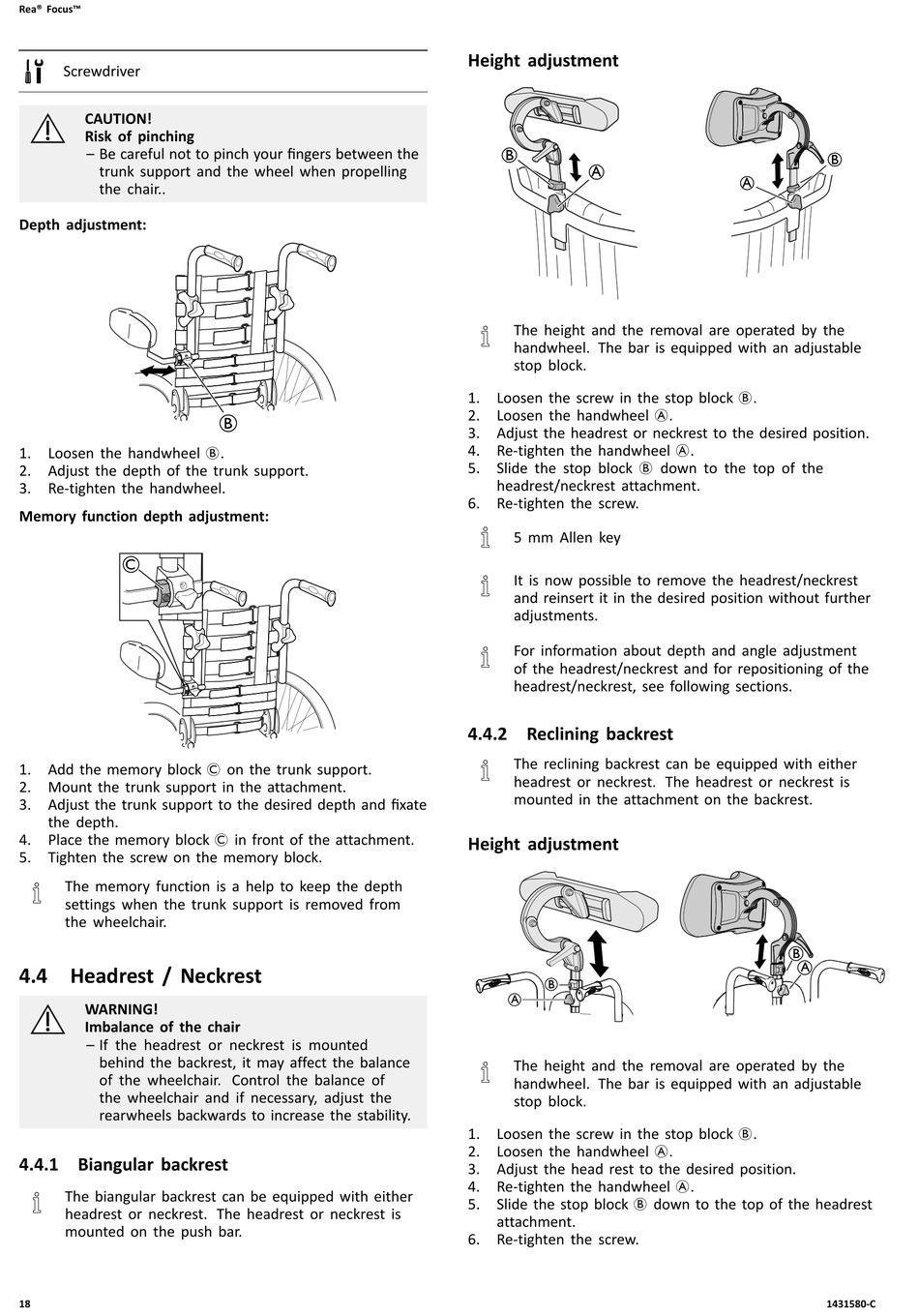

Rea® Focus™
Screwdriver
CAUTION!
Risk of pinching
– Be careful not to pinch your fingers between the
trunk support and the wheel when propelling
the chair..
Depth adjustment:
1. Loosen the handwheel B.
2. Adjust the depth of the trunk support.
3. Re-tighten the handwheel.
Memory function depth adjustment:
1. Add the memory block C on the trunk support.
2. Mount the trunk support in the attachment.
3. Adjust the trunk support to the desired depth and fixate
the depth.
4. Place the memory block C in front of the attachment.
5. Tighten the screw on the memory block.
The memory function is a help to keep the depth
settings when the trunk support is removed from
the wheelchair.
4.4 Headrest / Neckrest
WARNING!
Imbalance of the chair
– If the headrest or neckrest is mounted
behind the backrest, it may affect the balance
of the wheelchair. Control the balance of
the wheelchair and if necessary, adjust the
rearwheels backwards to increase the stability.
4.4.1 Biangular backrest
The biangular backrest can be equipped with either
headrest or neckrest. The headrest or neckrest is
mounted on the push bar.
18
Height adjustment
A
The height and the removal are operated by the
handwheel. The bar is equipped with an adjustable
stop block.
1. Loosen the screw in the stop block B.
2. Loosen the handwheel A.
3. Adjust the headrest or neckrest to the desired position.
4. Re-tighten the handwheel A.
5. Slide the stop block B down to the top of the
headrest/neckrest attachment.
6. Re-tighten the screw.
5 mm Allen key
It is now possible to remove the headrest/neckrest
and reinsert it in the desired position without further
adjustments.
For information about depth and angle adjustment
of the headrest/neckrest and for repositioning of the
headrest/neckrest, see following sections.
4.4.2 Reclining backrest
The reclining backrest can be equipped with either
headrest or neckrest. The headrest or neckrest is
mounted in the attachment on the backrest.
Height adjustment
B
A
The height and the removal are operated by the
handwheel. The bar is equipped with an adjustable
stop block.
1. Loosen the screw in the stop block B.
2. Loosen the handwheel A.
3. Adjust the head rest to the desired position.
4. Re-tighten the handwheel A.
5. Slide the stop block B down to the top of the headrest
attachment.
6. Re-tighten the screw.
A
B
A
1431580-C
