FocalPoint F820804 Assembly/Installation Instructions

Michigan oak fire surround

ASSEMBLY & INSTALLATION INSTRUCTIONS

Focal Point Fires Ltd

Christchurch, Dorset BH23 2BT

Tel: 01202 49933499330

Fax: 01202 499326

www.focalpointfires.co.uk

e : sales@focalpointfires.co.uk

Focal Point Fires Ltd

RBK House, Irishtown, Athlone,

Co. Westmeath, N37 XP52,

Ireland Tel: 01202 499330

Fax: 01202 499326

www.focalpointfires.co.uk

e: sales@focalpointfires.co.uk

Please note : Except where otherwise stated, all rights, including copy-

right in the text, images and layout of this booklet is owned by Focal

Point Fires Ltd.You are not permitted to copy or adapt any of the con-

tent without the prior written permission of Focal Point Fires Ltd.

MODELS COVERED BY THESE INSTRUCTIONS

F820804 MICHIGAN OAK FIRE SURROUND

All instructions must be handed to the user for

safekeeping.

Revision B - 09/21

Table of Contents

Need help?

Do you have a question about the F820804 and is the answer not in the manual?

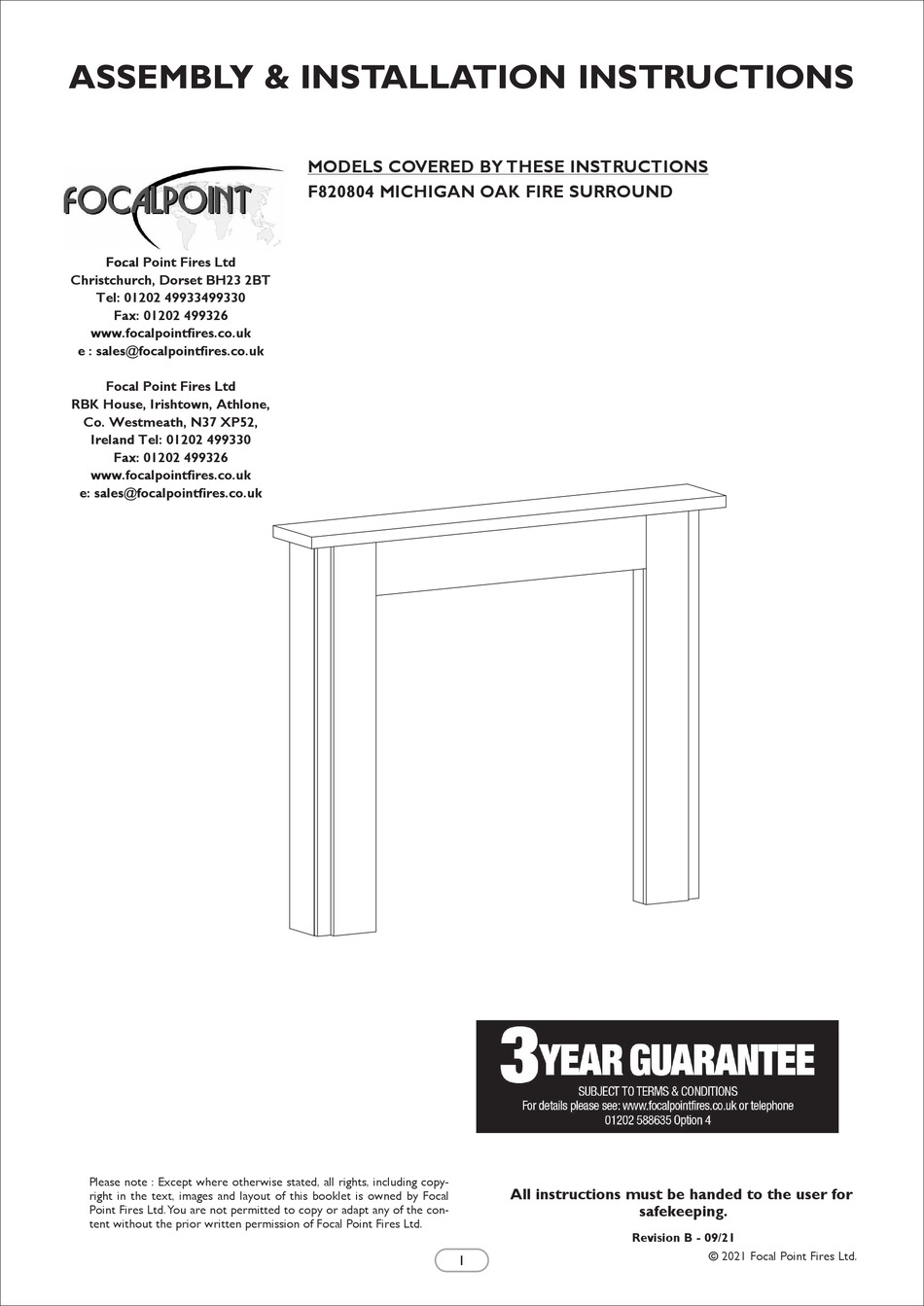

Page 1 ASSEMBLY & INSTALLATION INSTRUCTIONS MODELS COVERED BY THESE INSTRUCTIONS F820804 MICHIGAN OAK FIRE SURROUND Focal Point Fires Ltd Christchurch, Dorset BH23 2BT Tel: 01202 49933499330 Fax: 01202 499326 www.focalpointfires.co.uk e : sales@focalpointfires.co.uk Focal Point Fires Ltd RBK House, Irishtown, Athlone, Co.
Page 2 GB IE A S S E M B L Y I N S T R U C T I O N S Section Contents Page No. Important notes Tools required Hardware & parts list Assembly Assembly Installation Installation Cleaning/ finishing Guarantee - terms and conditions 1.0 IMPORTANT NOTES To ensure safe and stable installation:...
Page 3 GB IE 4.0 ASSEMBLY STEP 1 Fixings A x 4 PCS D x 4 PCS Gently lay both legs you have prepared onto a suitable protected surface. Be extremely careful not to scratch the front edges of the legs. DO NOT DRAG THE LEGS! Make sure that the legs are lifted everytime they are moved to avoid them from being damaged.
Page 4 GB IE 4.0 ASSEMBLY STEP 3 Fixings If using option A only. If rebates are not being used go to section 5. A x 4 PCS B x 6 PCS C x 6 PCS ② ⑤ ⑤ ⑥ ⑤ ⑦ Use the glue (I) in the dowel holes before inserting 2x dowels (A) into the left and right hand legs (3 and 4).
Page 5 GB IE 5.0 INSTALLATION Fixings E x 2 PCS F x 4 PCS G x 2 PCS H x 2 PCS With a pencil mark out the desired height where you would like the mirror brackets (H) to be situated on the rear of the legs. To avoid splitting the leg, pre drill the bracket holes with a 2mm drill bit.
