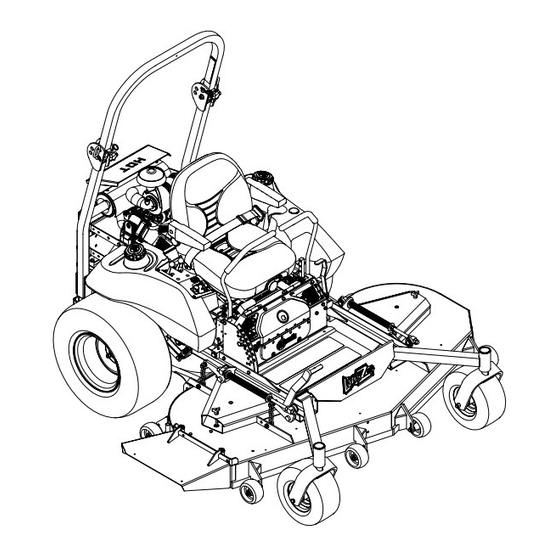

Exmark LAZER Z XS Setup Instructions

Loose Parts
Note: Use the chart below to verify that all parts have been shipped.
109-2246 Dealer Literature Pack – Unit Specific Material for Dealer Setup
Part # Description
323-6 Cap Screw, Hex 3/8-16 x 1
98-5975 Washer, Belleville
3290-357 Nut, Hex Flange 3/8-16
103-1309 Warranty Registration Form
103-2106 Key, Exmark Ignition
1-603511 Key, Standard Ignition
103-7599-03 Guard
109-2394 U-bolt
3296-69 Nut-Nyloc, 3/8-16
103-9569 Consumer Literature Pack– Unit Specific Material for Consumer
Part # Description
106-7022 Tube, Oil Drain
103-9570 Manual, Operator's
103-9571
Manual, Parts
103-9143
DVD, Exmark Safety Video
103-9742 Manual, Engine Operator's
Installing the Rollover Protection
System (Roll Bar)
1. Remove sides and top of crate from the base.
2. Remove 2 Roll Bar Legs and 1 Upper Tube from
the crate.

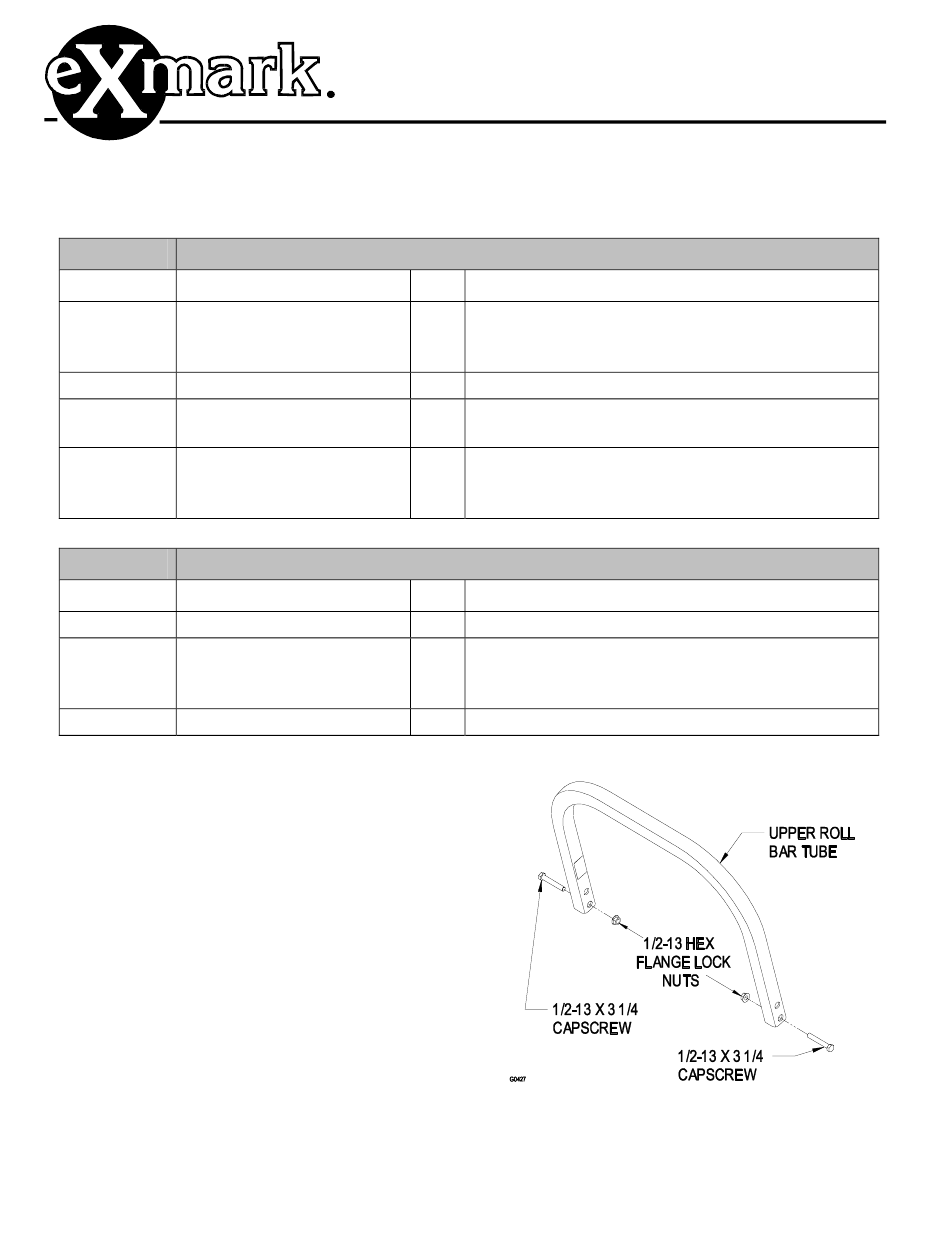

3. Remove the two brackets from the bottom of the
upper roll bar tube. Retain hardware for later use
(Fig. 1).
4. Align the lower roll bar tubes with the mount pad
on the rear engine frame (Fig. 2).
5. LOOSELY install the lower roll bar hardware (four
3/8-16 x 1 capscrews, four spring disk washers
and four 3/8-16 whizlock nuts) to the tubes on
each side. (Fig. 2).
NOTE: Be sure the spring disk washer cone is
installed towards the head of the capscrew
®
LAZER Z
SETUP INSTRUCTIONS
Qty Use
8
8 Installing the Rollover Protection System (Roll Bar)
8
1 Fill out and return to Exmark
1
Unit ignition
1
1 Mount over Air Intake Cap
2 For mounting guard
4 For mounting guard
Qty Use
1 Draining engine oil
1
1 Read and view before operating machine
1
1 For units with Kawasaki Liquid Cooled Engines
XS LIQUID COOLED
For Serial Nos. 600,000 and Higher
Figure 1
109-2245 Rev. A
Page 1 of 5
